Cabin Temperature Sensor / Switch: Service and Repair

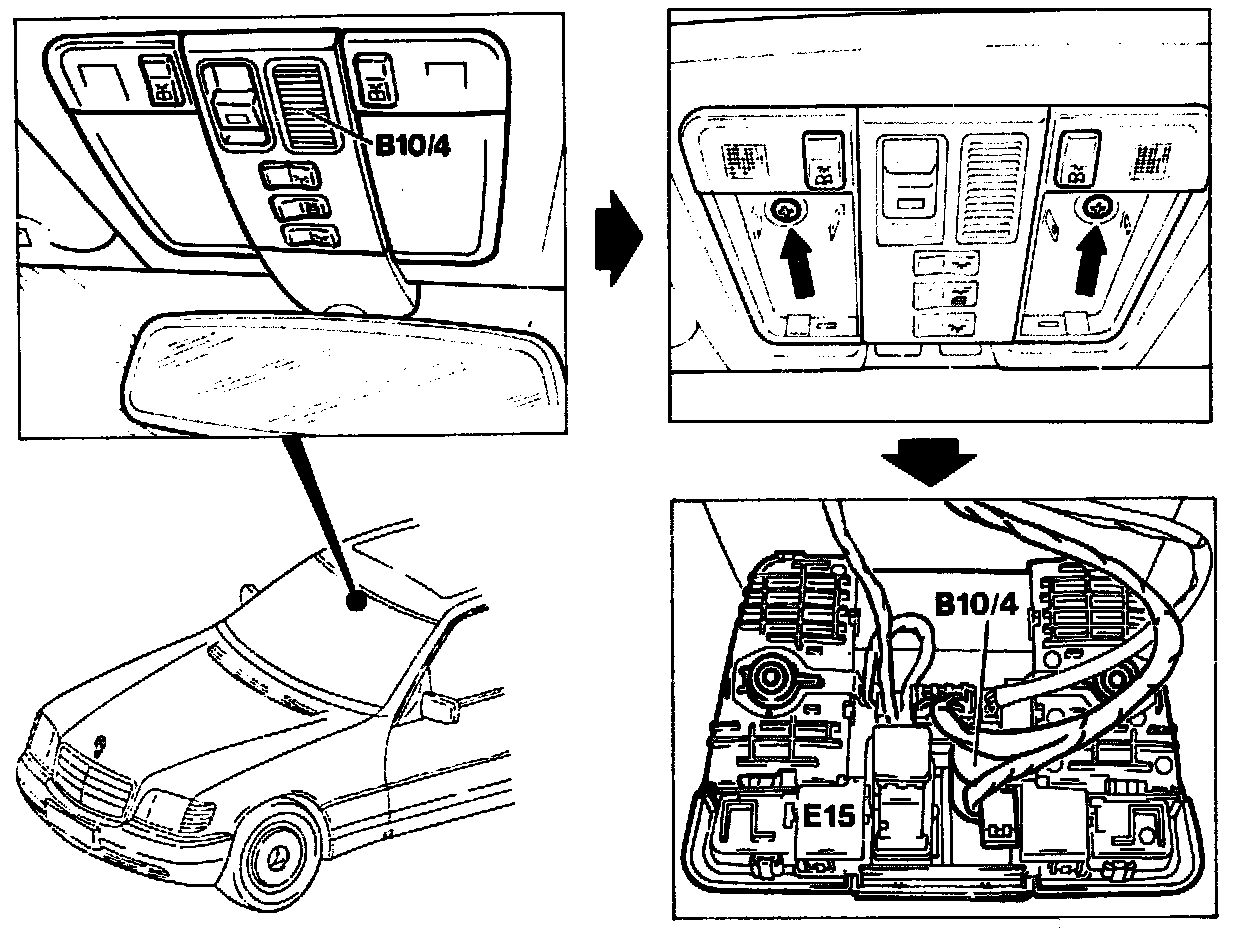

In-Car Temperature Sensor With Aspirator Blower





Both dome lamps
Unclip.

2 screws (arrows)
Unscrew.

Dome lamp unit
Take off, disconnect 4-pole connector from B10/4 and unclip temperature sensor with ventilation blower.

Install
In the reverse sequence.

NOTE: After completing the work erase fault memory in control unit.
