Cabin Temperature Sensor / Switch: Locations

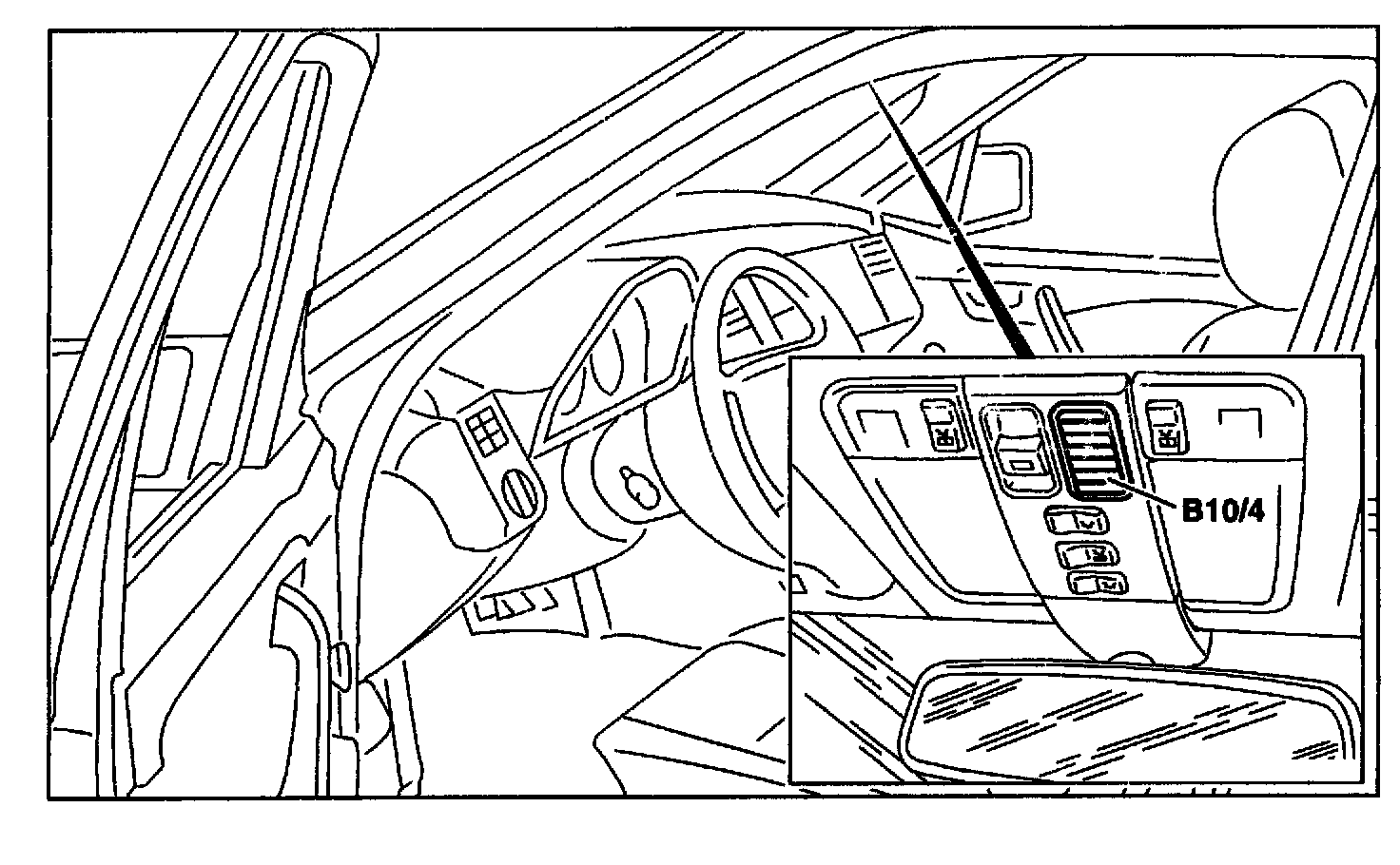

In-Car Temp Sensor With Aspirator Blower






The in-car temperature sensor with aspirator blower (B10/4) is located in the overhead control panel.
