Daytime Running Lamp Control Unit: Locations

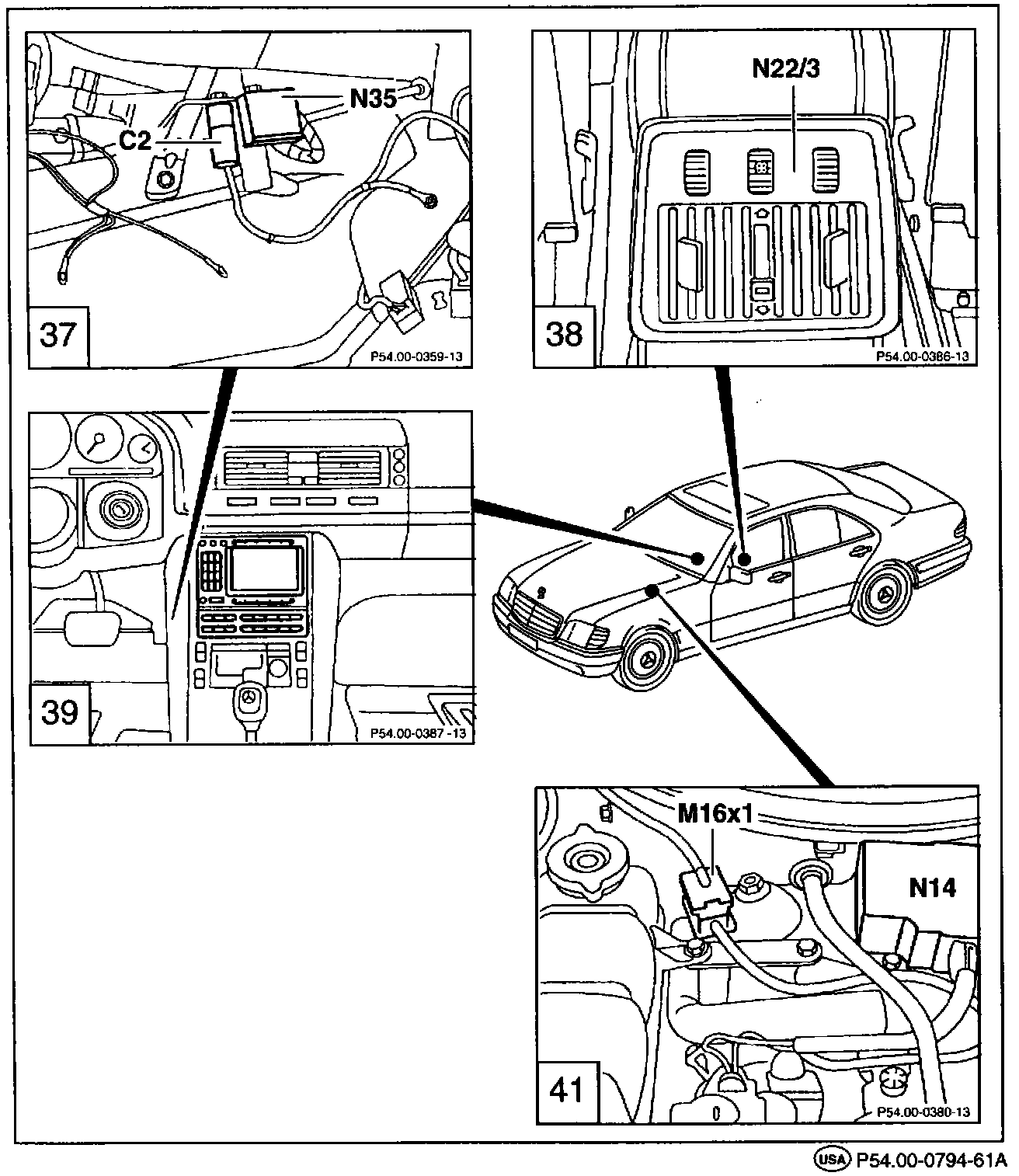

Figures 37 thru 41:

Figure 37
Component Name Daytime running lamp control module (CANADA only)
Component ID N35

Component ID Component Name

N14 Preglow time-limit relay module
N22/3 Rear A/C pushbutton control module
N35 Daytime running lamp control module (CDN)
