Blower Regulator

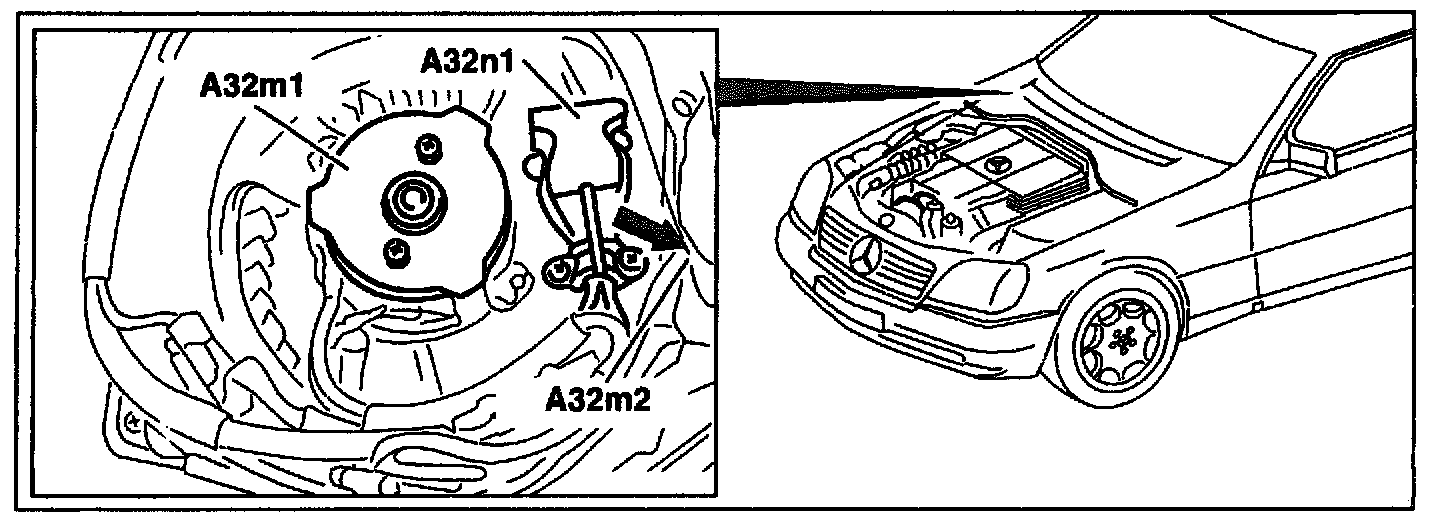

The blower regulator (A32n1) is located at the right rear in the engine compartment behind the dust filter.

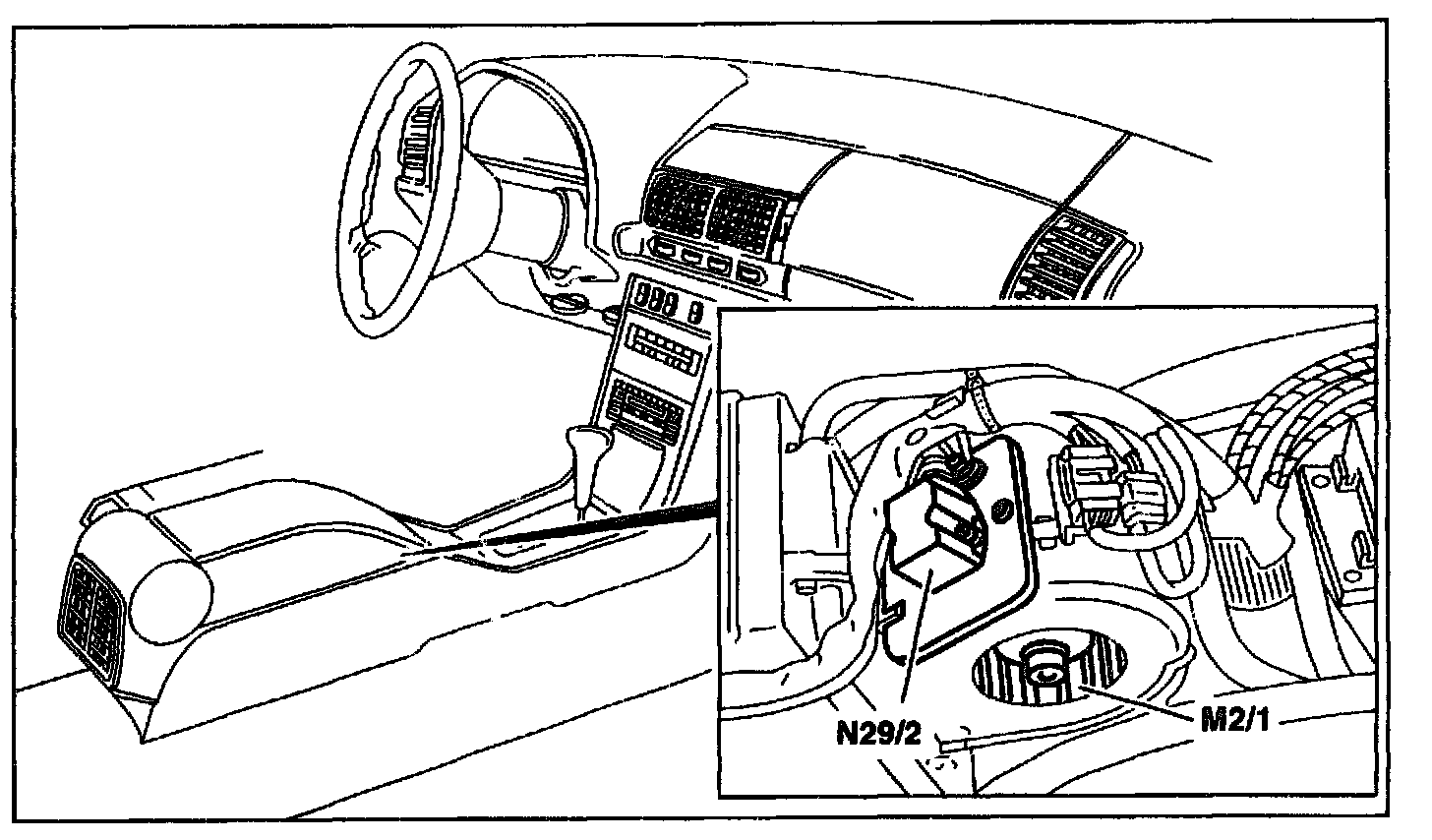

The blower regulator for the rear air conditioning (N29/2) (if equipped) is located in the rear air conditioning housing below the armrest.
