Blower Regulator




Purpose
The blower regulator supplies the power to the blower depending on the blower stage set.

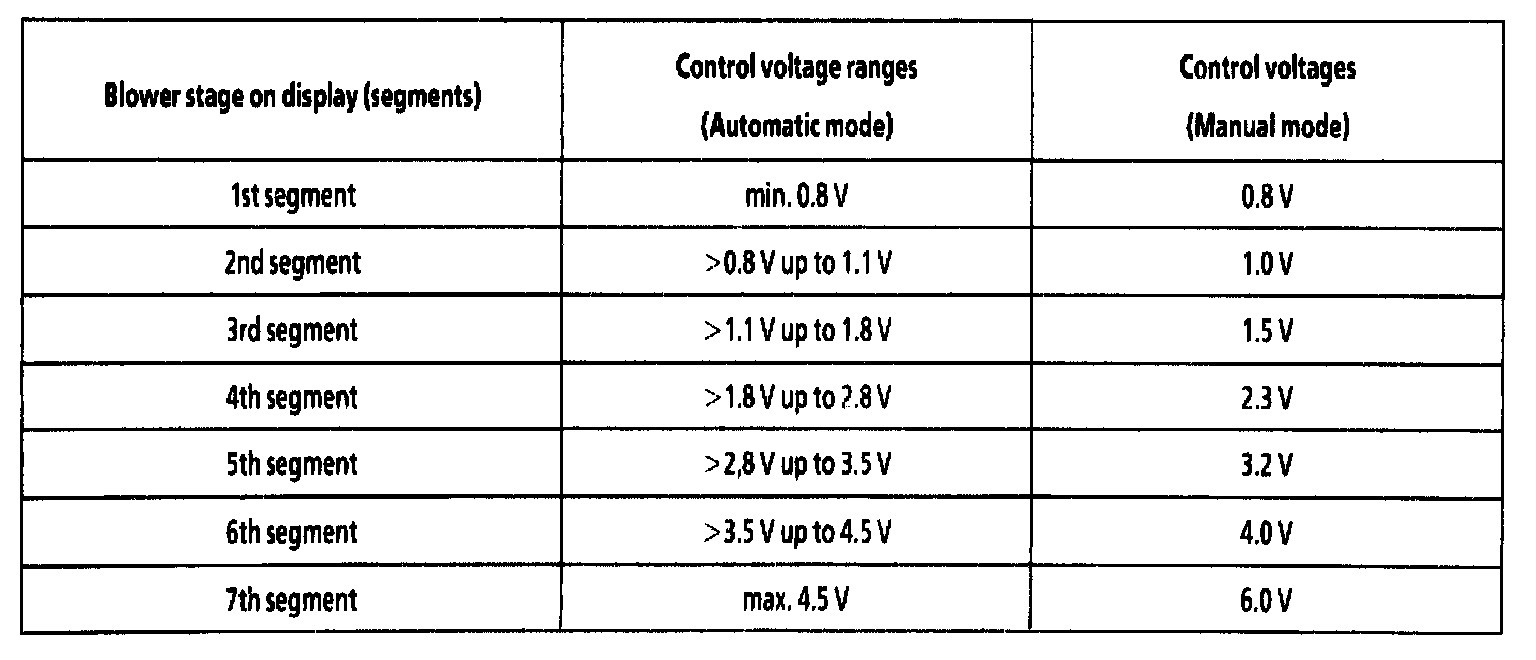

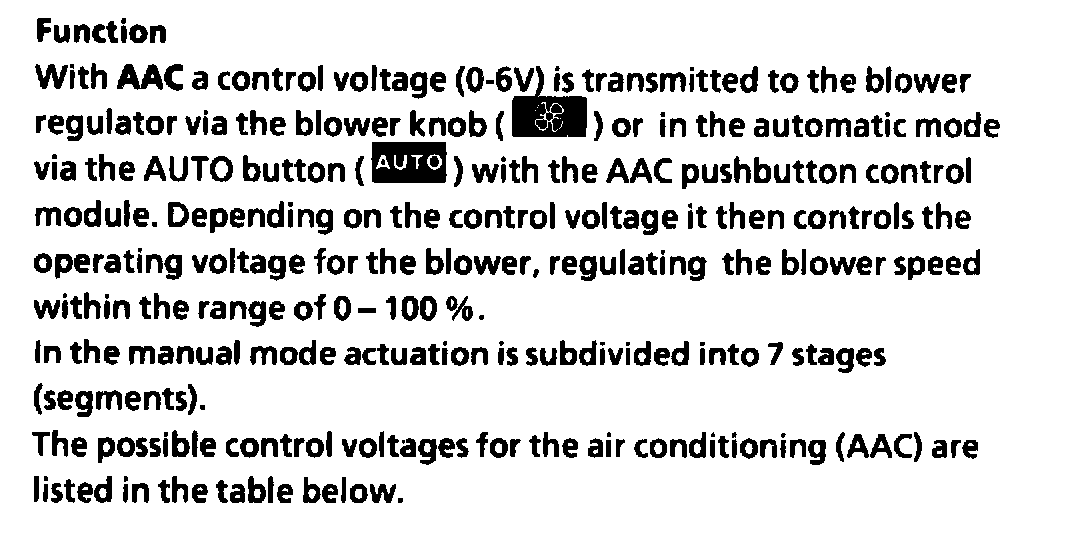

Function
