With Right Front Seat Adjustment Feature

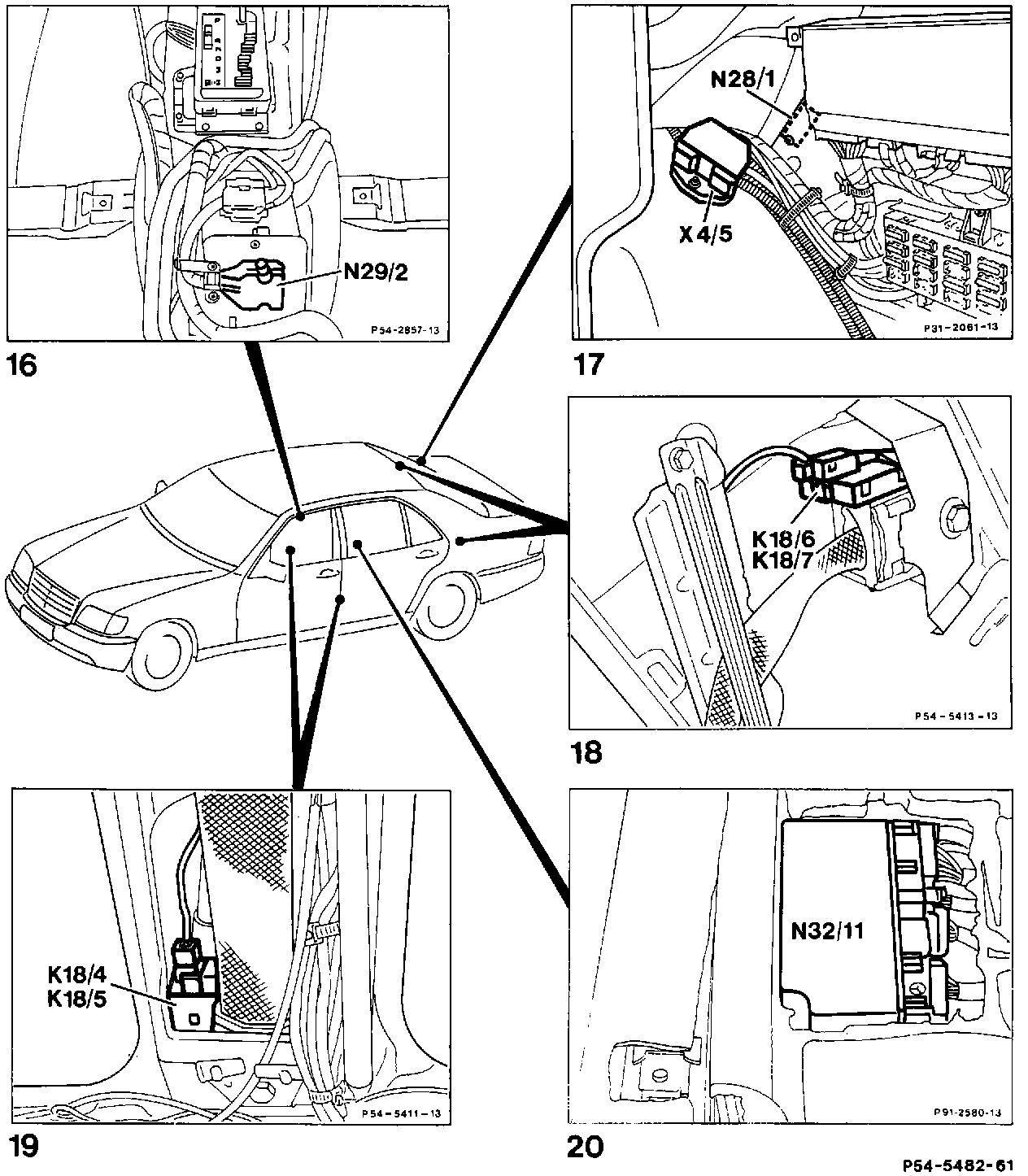

Figures 16 thru 20:






Figure 20
Component Name Right rear ESA control module (with right front seat adjustment feature)
Component ID N32/11

Component ID Component Name

K18/4 Left front seat belt comfort feature solenoid
K18/5 Right front seat belt comfort feature solenoid
K18/6 Left rear seat belt comfort feature solenoid
N29/2 Rear electronic blower regulator
N32/11 Right rear seat adjustment control module (with right front seat adjustment feature)
K18/7 Right rear seat belt comfort feature solenoid
