Audio Control Relay: Locations

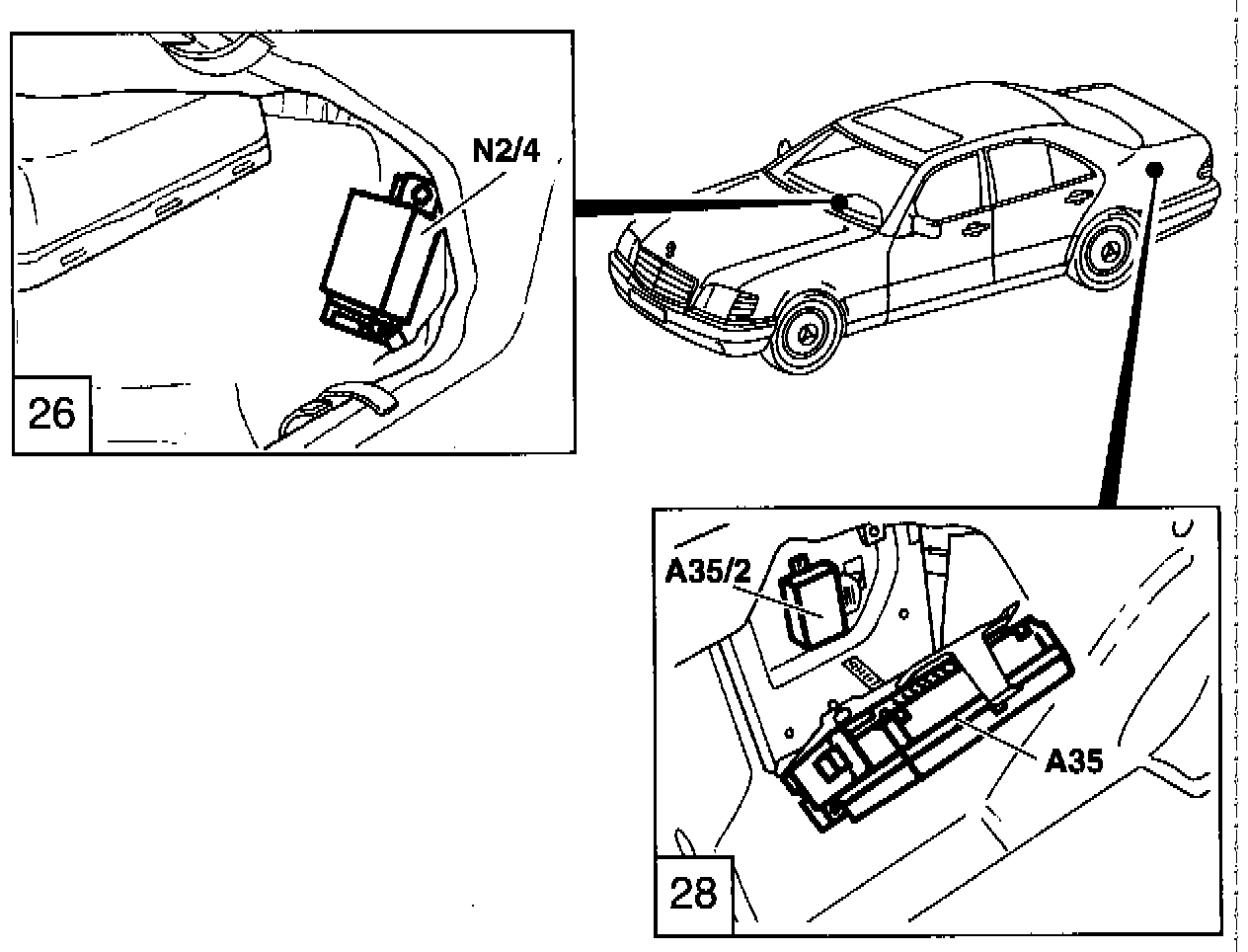

Figures 26 and 28:

Figure 28
Component Name Audio switchover relay module
Component ID A35/2

Component ID Component Name

A35 CTEL transmitter-receiver
A35/2 Audio switchover relay module
N2/4 Seat belt warning module (USA)
