Home >> Mercedes Benz >> 1999 >> S 320 SWB (140.032) L6-3.2L (104.994) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Relays and Modules - Transmission and Drivetrain >> Relays and Modules - A/T >> Shift Solenoid Relay >> Locations

Shift Solenoid Relay: Locations

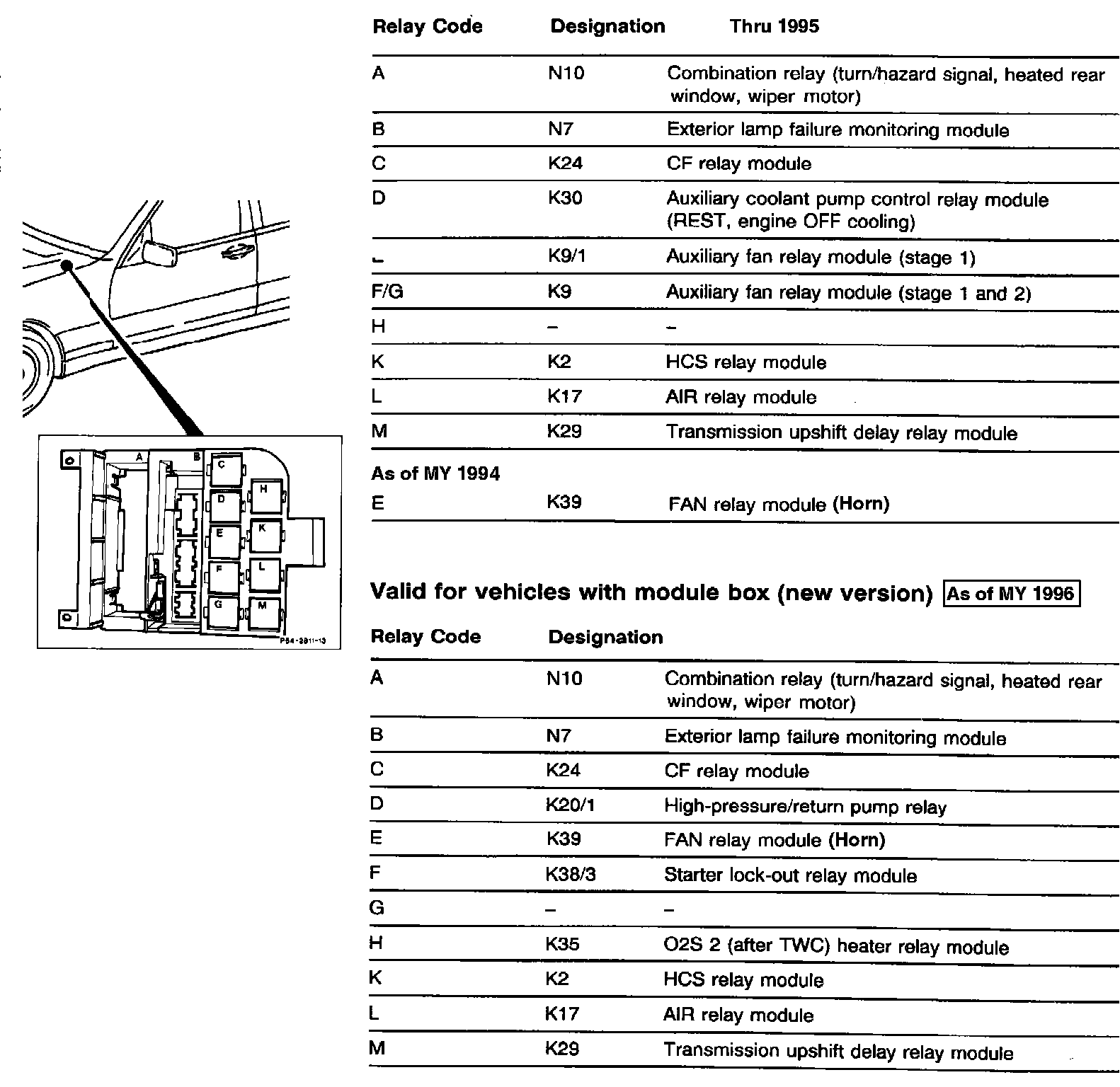

Figure 1
Component Name Transmission upshift delay relay module
Component ID K29
