Mercedes Benz
>>
1999
>>
S 320 SWB (140.032) L6-3.2L (104.994)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Locations
>>

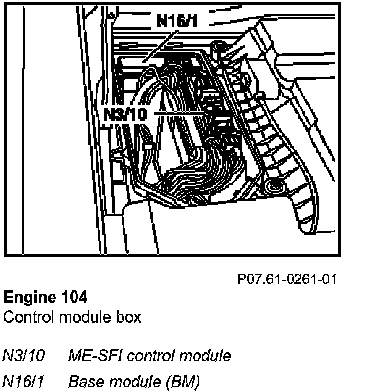

GF07.61-P-5000-01C ME-SFI Control Module Position

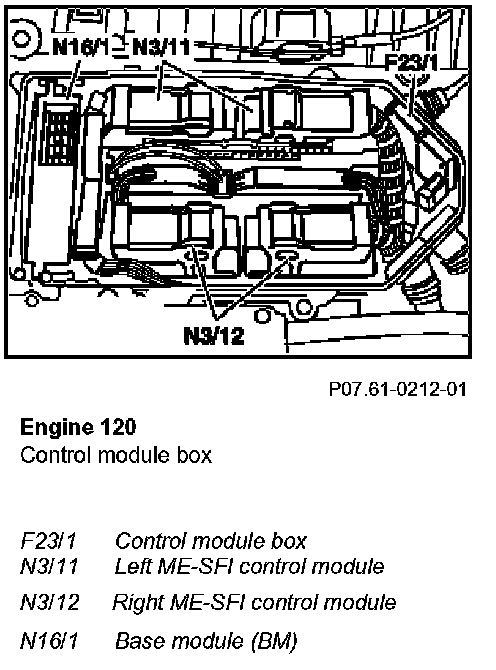

GF07.61-P-5000-01C ME-SFI Control Module Position
GF07.61-P-5000-01C ME-SFI Control Module Position
