Adjusting Throttle Control

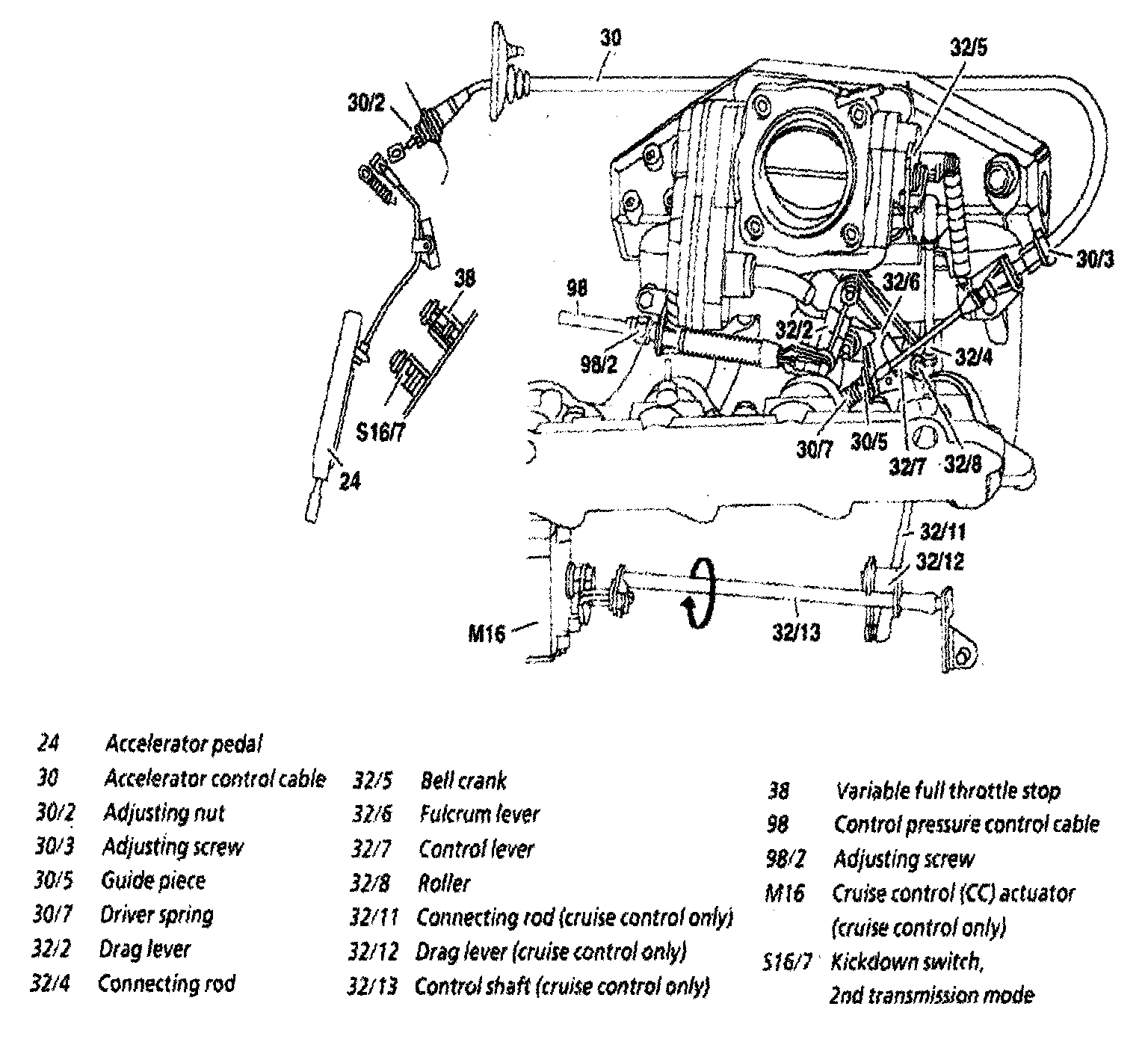

Engine 104 Shown on model 124 with automatic transmission






Engine 111 Shown on model 124 with automatic transmission






Shown on engine 104











Adjusting, Part 1 of 2

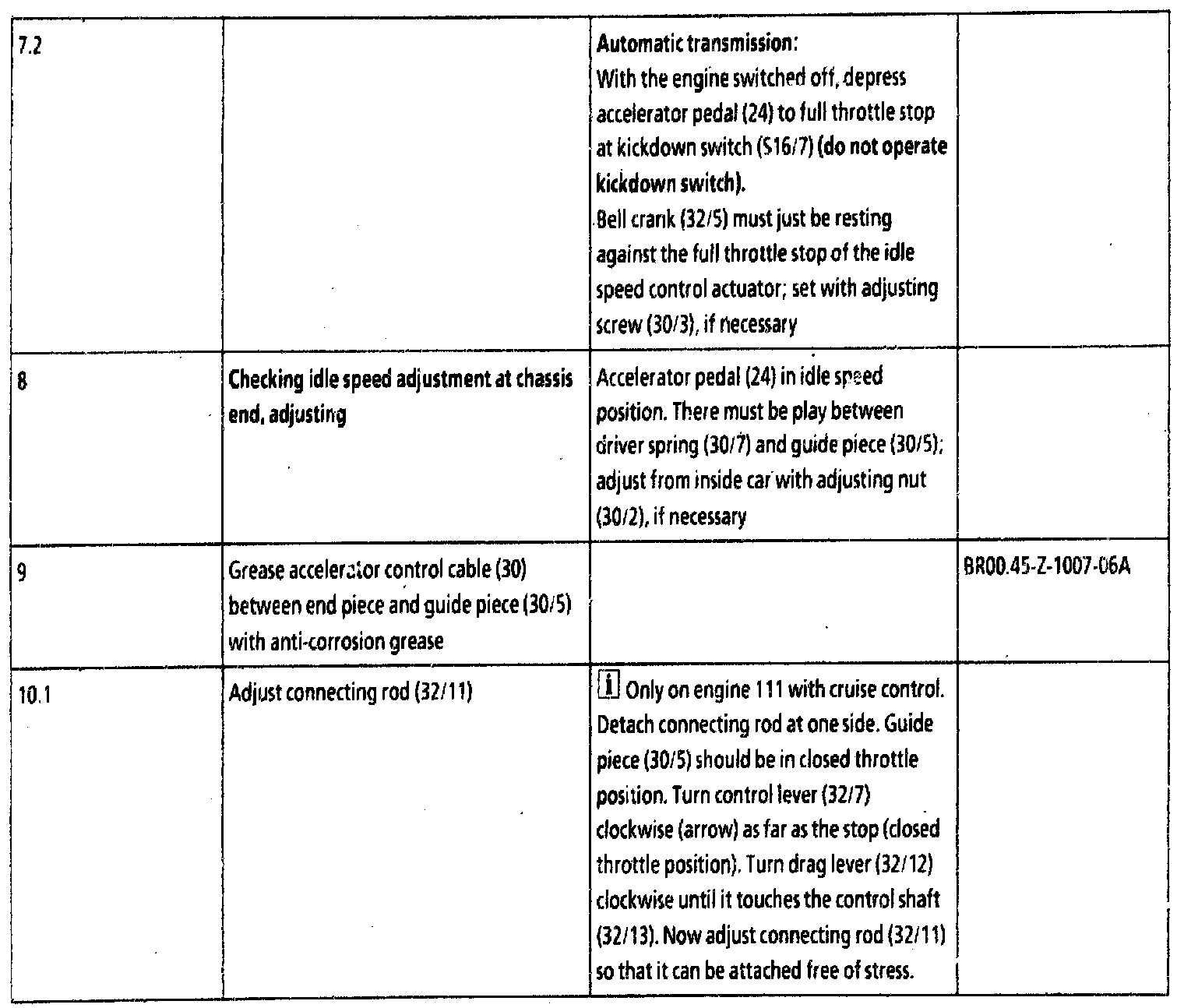

Adjusting, Part 2 of 2






References (BE), Test values of accelerator control






References (BR), Repair product
