Notes for Remove/Install Fuel Tank

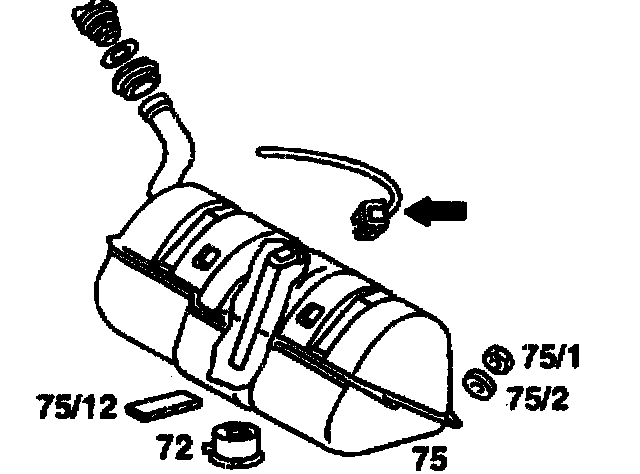

Without ski bag

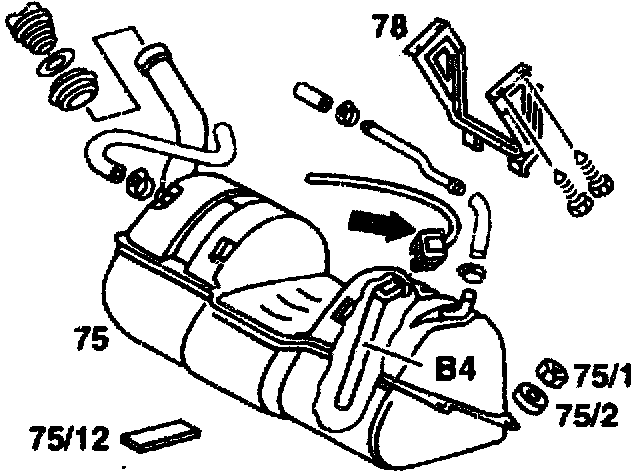

With ski bag


1 Remove expansion reservoir, install.
2 Remove console (78) of ski bag mount.


NOTE: With special equipment "Soundsystem Bose": remove amplifier unit, install.


3 Install in reverse sequence
