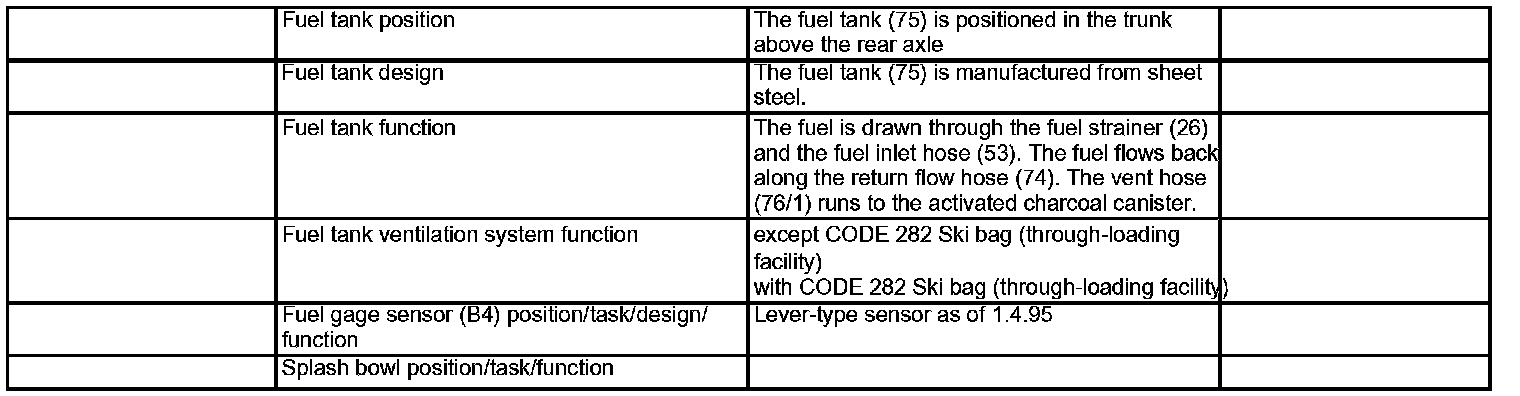

GF47.10-P-3000C Fuel Tank Position/Design/Function



GF47.10-P-3000C Fuel Tank Position/Design/Function

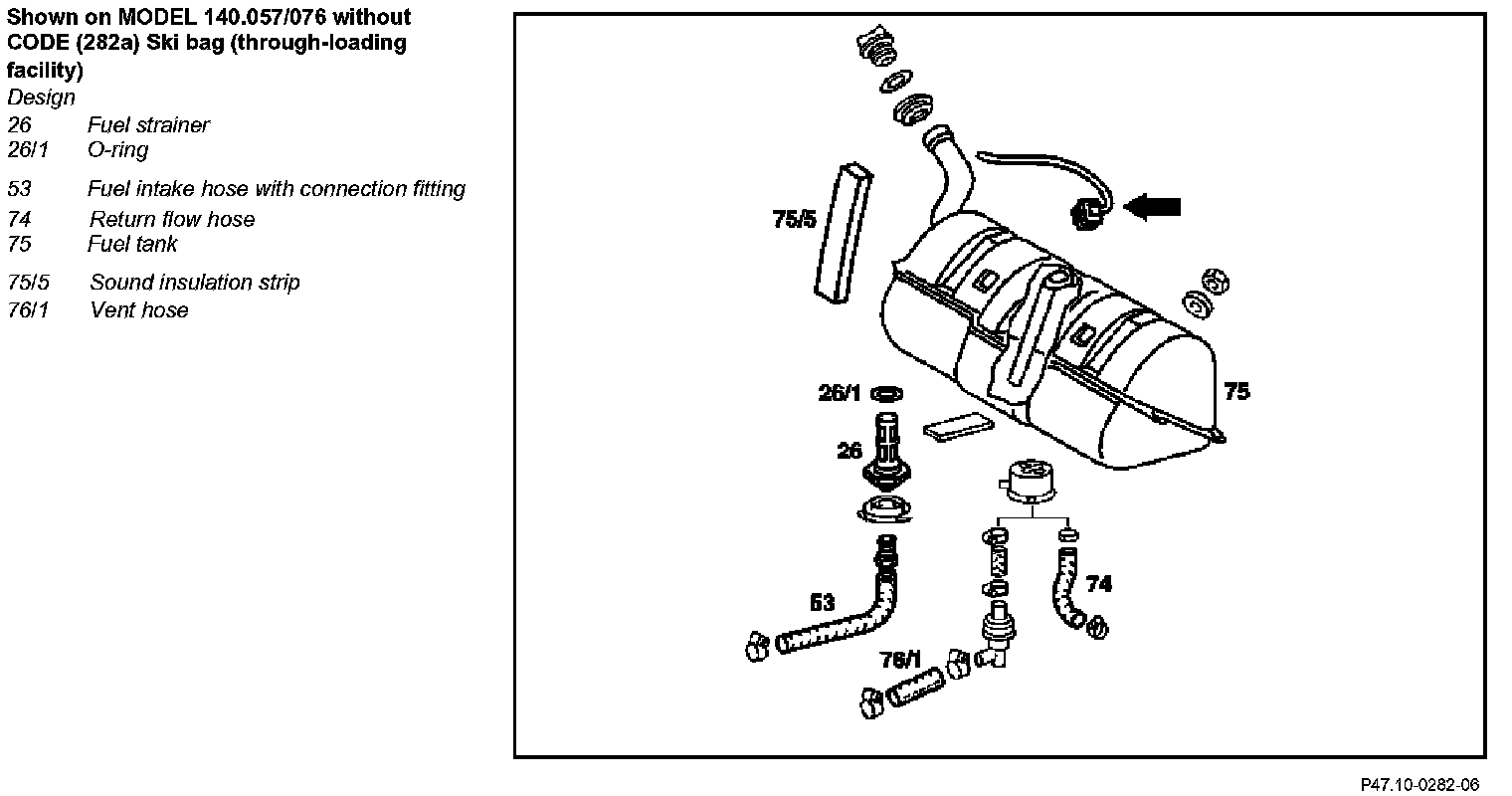

- without CODE (282a) Ski bag (through-loading facility)
