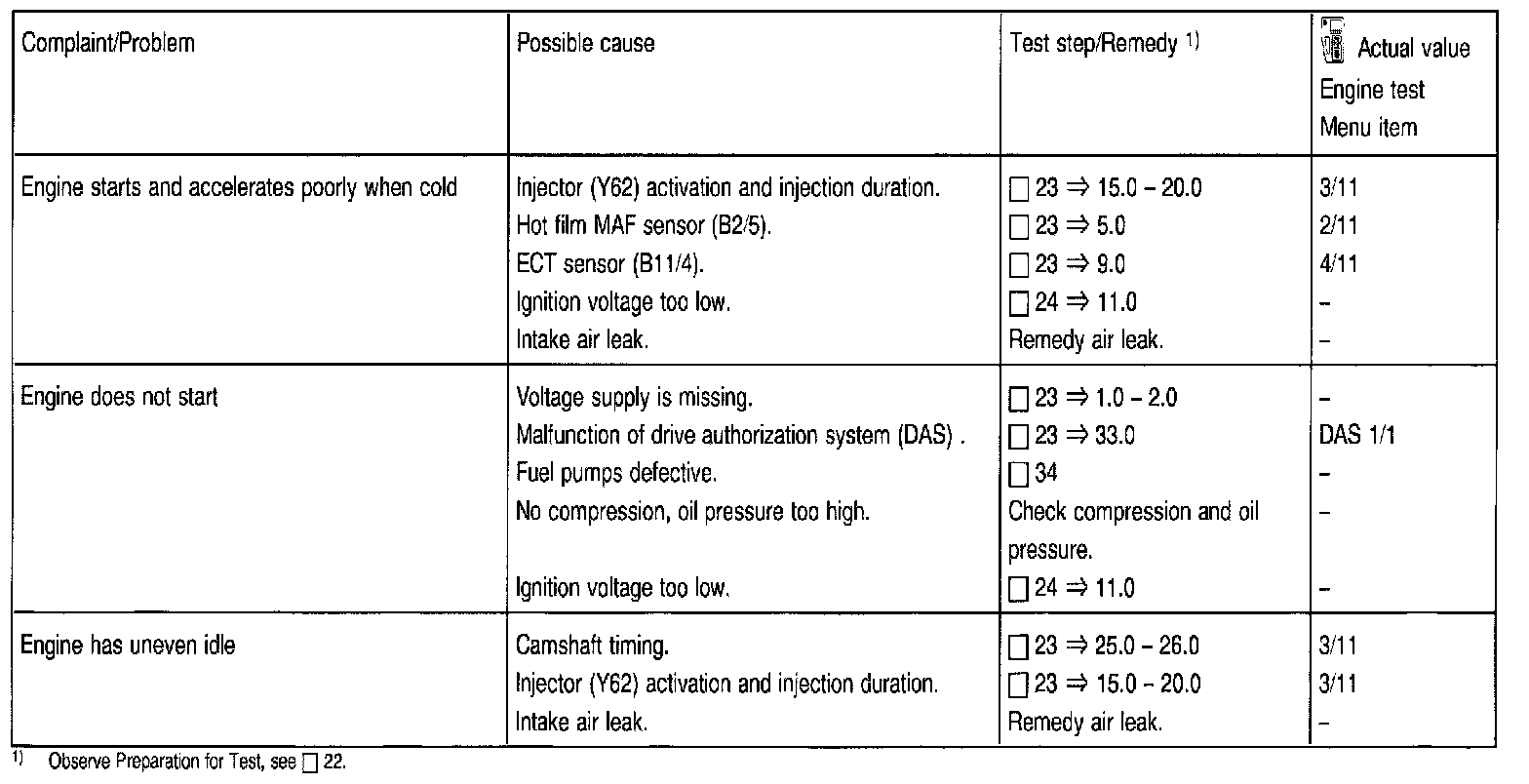

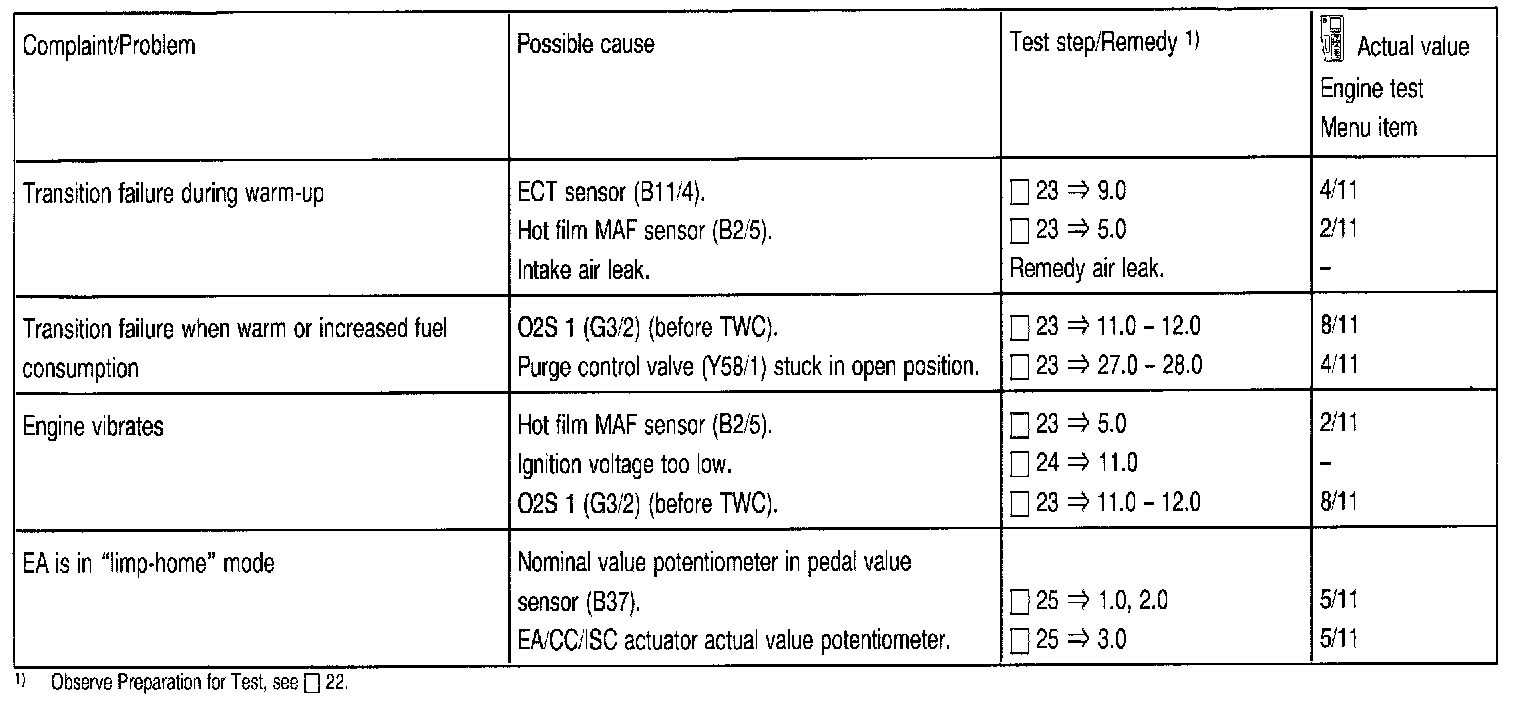

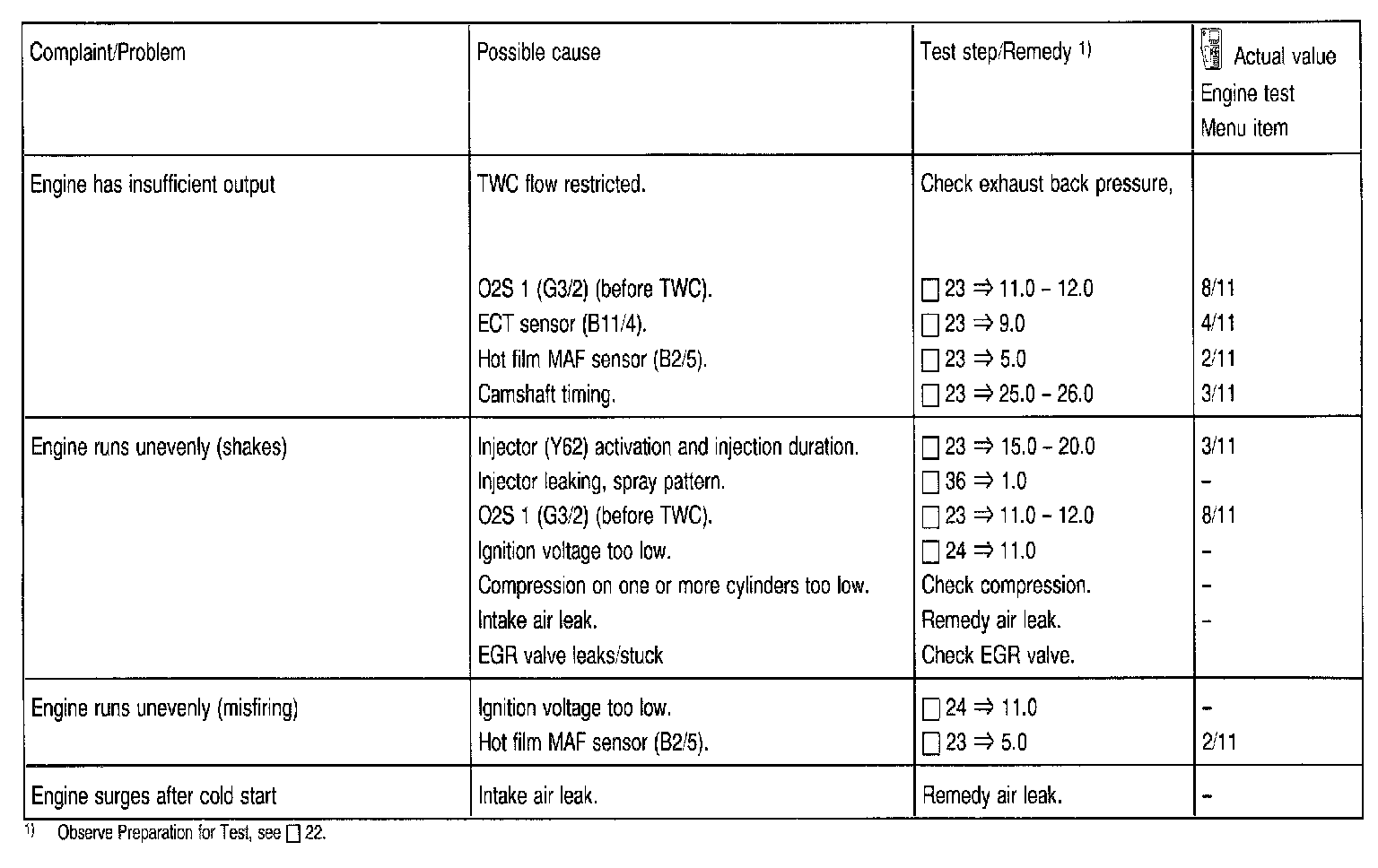

Diagnosis By Symptom

WARNING!: Risk of severe injury when touching ignition parts which produce high voltages. Do not touch ignition components.
Persons with heart pacemakers are not to perform repairs on this type of ignition system.


Preparation for Test:
1. Review Sections: 11, 21, 22, 23, 24, 31, 33.
2. Connect HHT with test cable to data link connector (X11/4), readout DTC fault codes.
