ME-SFI Ignition System Function Diagram

ME-SFI Ignition System Function Diagram

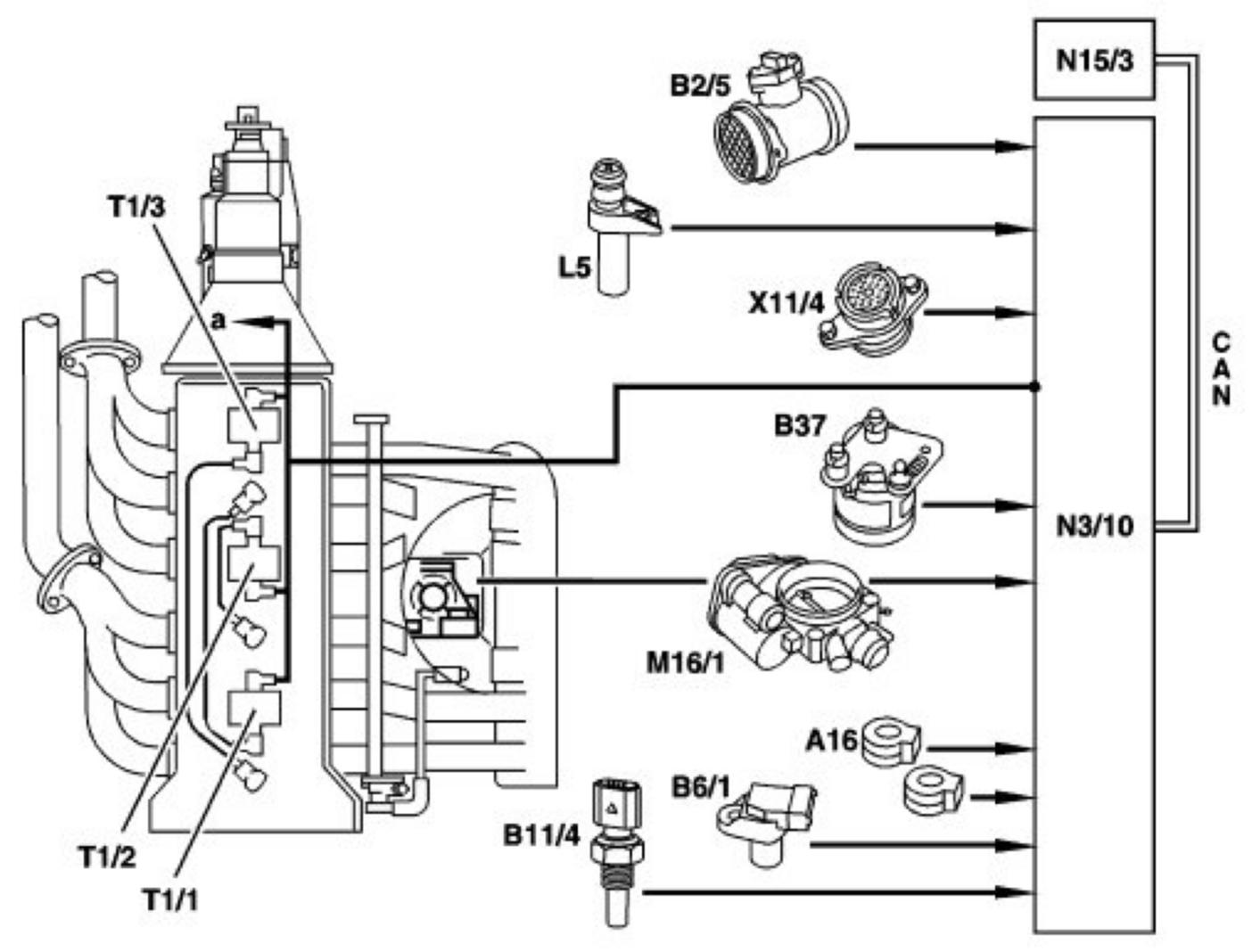

Basic diagram of ignition system with rotorless high voltage distribution, engine 104
A16 Knock sensors
B2/5 Hot film mass air flow sensor (intake air temperature sensor integrated)
B6/1 Camshaft Hall sensor
B11/4 Coolant temperature sensor
B37 Pedal value sensor
L5 Crankshaft position sensor
M16/1 Electronic accelerator EA/CC/ISC actuator
N3/10 ME-SFI control module
N15/3 ETC (electronic transmission control) control module
T1/1 Ignition coil cylinders 2 and 5
T1/2 Ignition coil cylinders 3 and 4
T1/3 Ignition coil cylinders 1 and 6
X11/4 Datalink connector, 38-pin (pulse readout)
a Circuit 15 fused
CAN Databus (controller area network
