Fuel Tank, Function

Fuel Tank, Function

MODEL 140.0

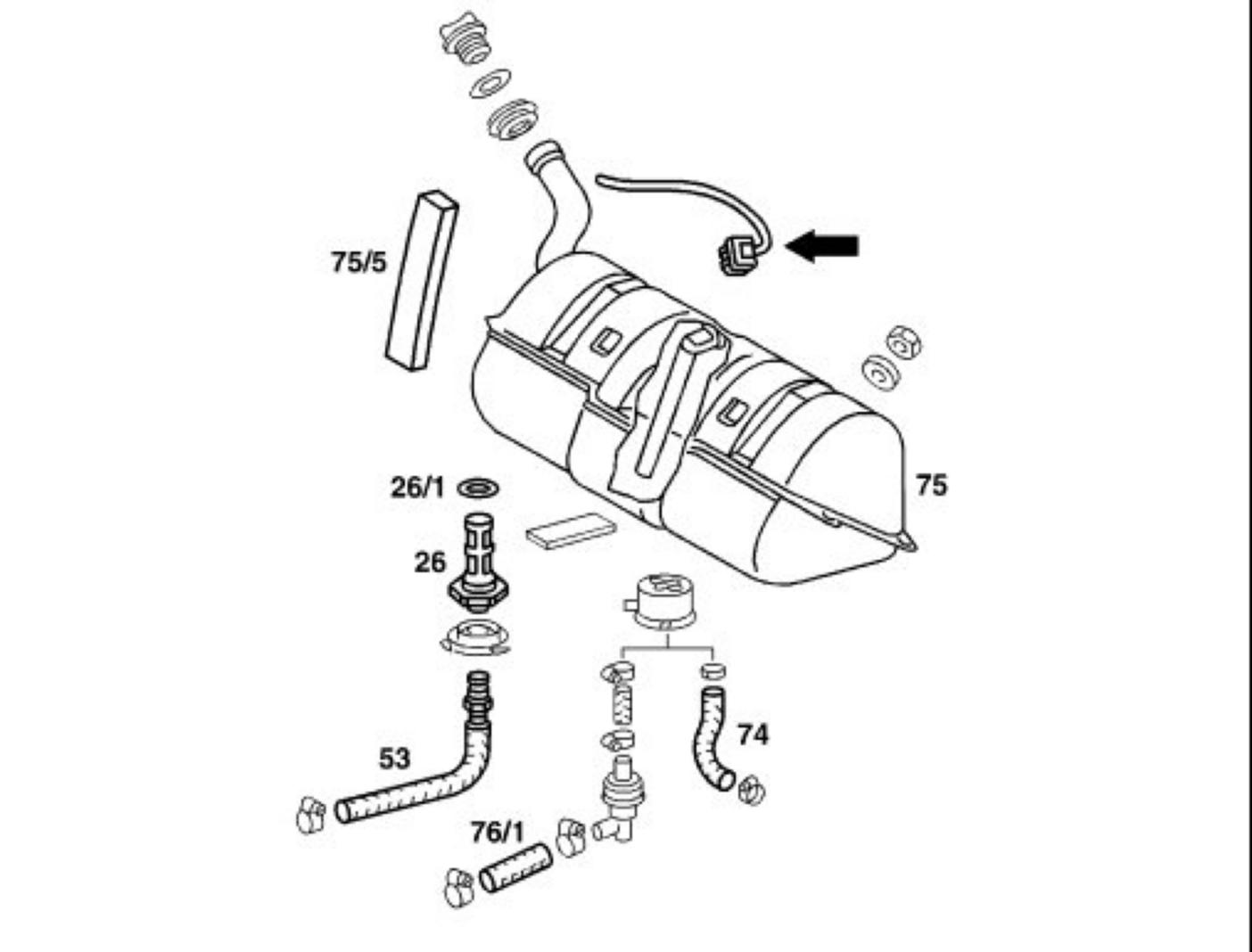

Shown on MODEL 140.057/076 without CODE (282a) Ski bag (through-loading facility)
26 Fuel strainer
26/1 O-ring
53 Fuel intake hose with connection fitting
74 Return flow hose
75 Fuel tank
75/5 Sound insulation strip
76/1 Vent hose

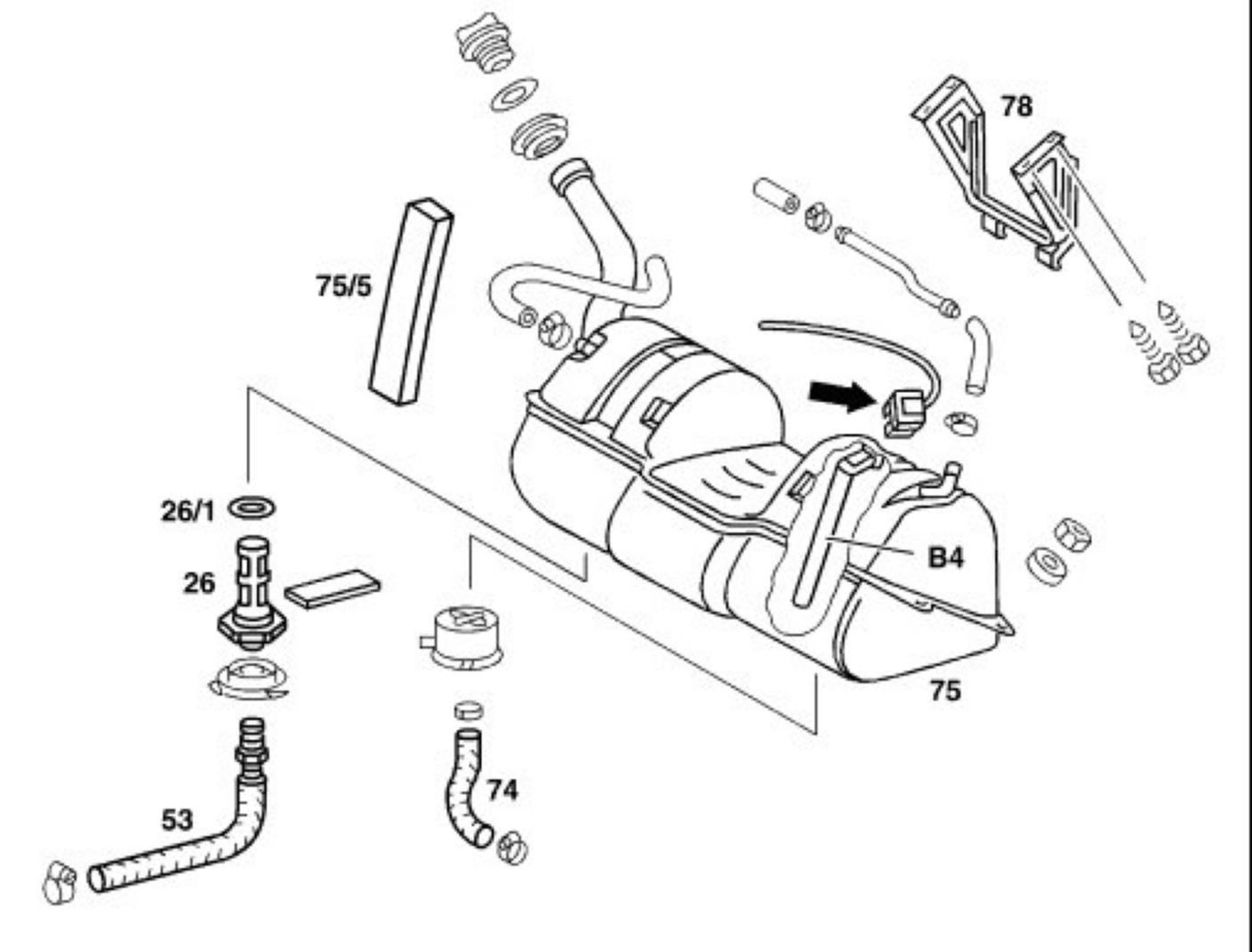

MODEL 140 with CODE (282a) Ski bag (through-loading facility)
26 Fuel strainer
26/1 O-ring
53 Fuel intake hose with connection fitting
74 Return flow hose
75 Fuel tank
75/5 Sound insulation strip
78 Ski bag mounting console
B4 Fuel gage sensor

The fuel is drawn through the fuel strainer (26) and the fuel inlet hose (53). The fuel flows back along the return flow hose (74). The vent hose (76/1) runs to the activated charcoal canister.
