With Ski Bag (Through-Loading Feature)

Fuel Tank Ventilation System, Function

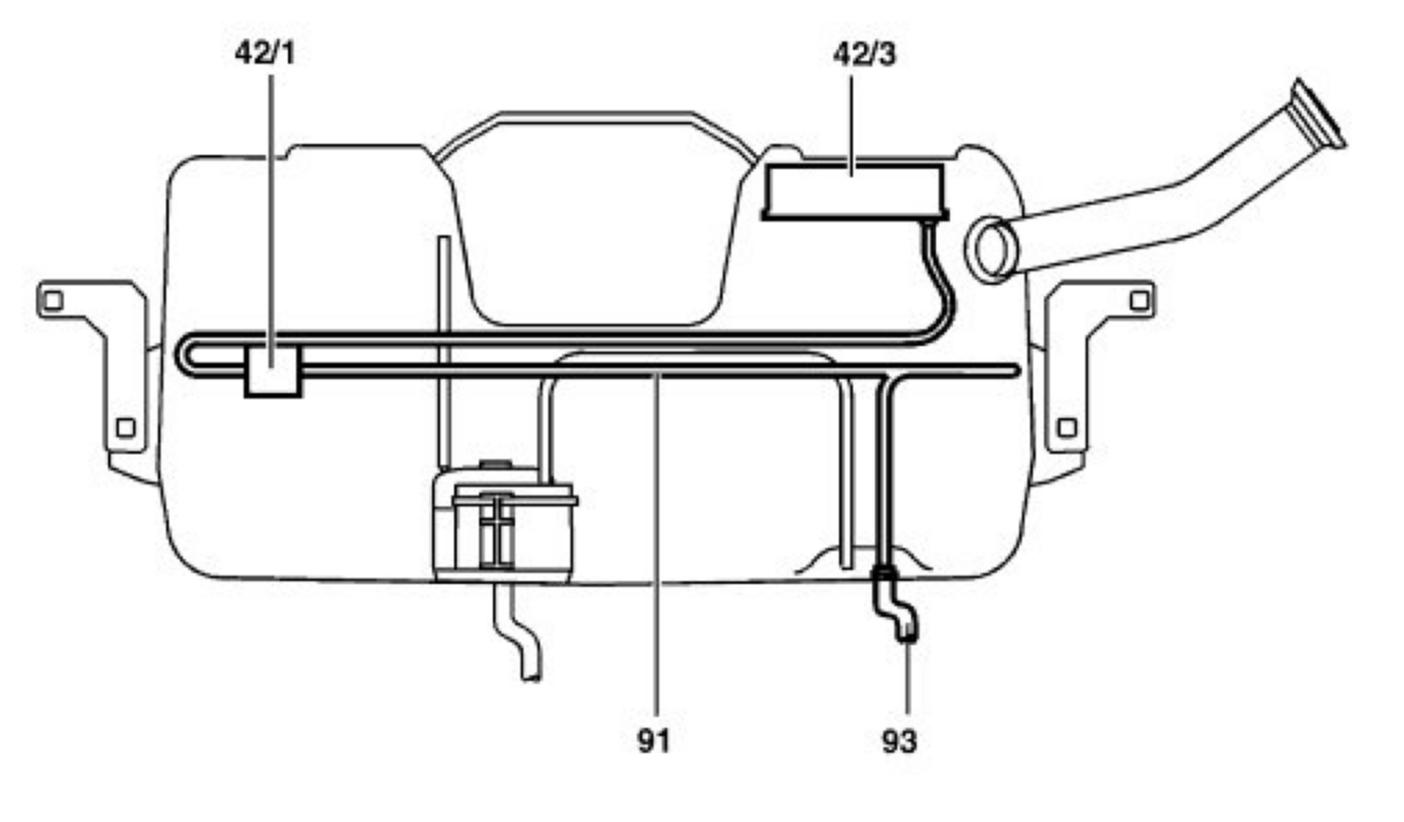

Shown on model 210.0 with ski bag (through-loading feature)

Function
The ventilation system consists of the air admission device (42/3) and the interruption vessel (42/1). The interruption vessel prevents fuel escaping over the vent line. The air admission line (91) runs to the vent hose (93).
