Cruise Control (CC) Function

Cruise Control (CC) Function

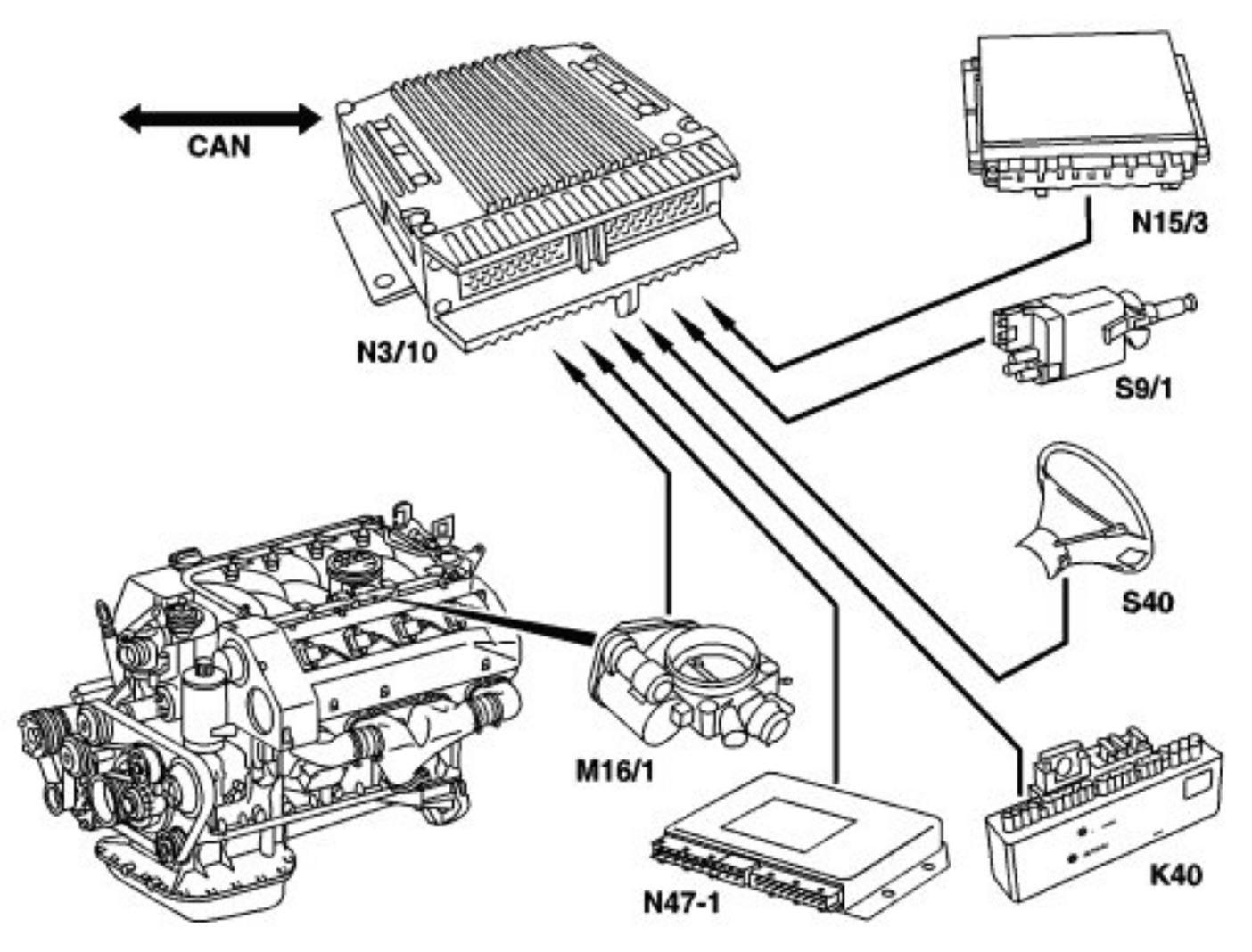

Shown on engine 119 in model 210
K40 Relay module (up to 2/97)
M16/1 Actuator EFP/TPM/LLR (further designation: M16/6 Throttle valve actuator)
N3/10 ME-SFI control module
N15/3 ETC [EGS] control module
N47-1 ASR/SPS control module (speed signal)
S9/1 Stop lamp switch, 4-pin
S40 CC [TPM] switch
CAN Data bus

Task
The programmed speed, irrespective of load condition, is maintained constant without actuation of the accelerator pedal.

Function
The cruise control function is integrated in the engine control module.
It can be activated from > 40 km/h with the cruise control switch. On the basis of the input signals and the position of the cruise control pushbutton switch, the engine control unit actuates the throttle valve actuator for the cruise control function.

The cruise control mode is switched off by:
- Operating the cruise control pushbutton switch (S40) or variable cruise control pushbutton switch (S40/4)
- Operating the service brake
- Moving selector lever into position "N"
- Operating the clutch pedal (with MT)
