Air Pump Electromagnetic Clutch, Position/Task/Design/Function

Air Pump Electromagnetic Clutch Position/Task/Design/Function

ENGINE 104.941
ENGINE 104.942
ENGINE 104.991
ENGINE 104.992
ENGINE 104.994
ENGINE 120.982
ENGINE 120.983




Y33 Air pump electromagnetic clutch

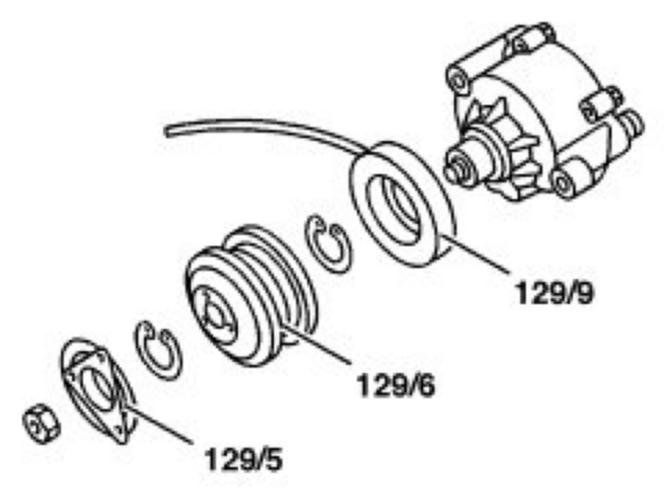

129/5 Spring plate
129/6 Belt pulley
129/9 Solenoid

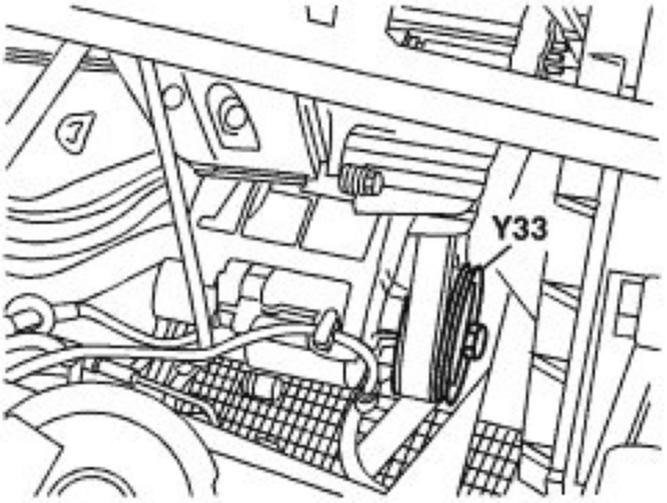

Position
Behind belt pulley of air pump

Task
When actuated, connecting the air pump to the belt pulley driven by the poly V-belt.

Design/function
The voltage for the air pump electromagnetic clutch is supplied through the secondary air injection relay.
A magnetic field is produced when current flows through the coil of the solenoid. Belt pulley and air pump are positively connected by the moving parts of the spring plate.
