Preparation For Test - Section 31
Preparation for Test
1. Review Section: 11, 21, 22, 23, 24, 31, 33.
2. Review section 0. Connection and Use of Test Equipment - Section 0
3. Connect pressure gauge to test connection (see Figure 1 below.)
4. After completing test, using measurement glass (055), release fuel pressure and allow residual fuel to drain into glass (see Figure 1 below.)

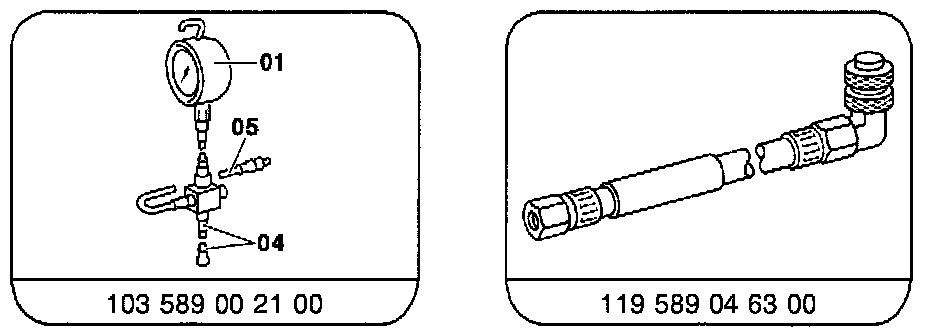

Special Tools:

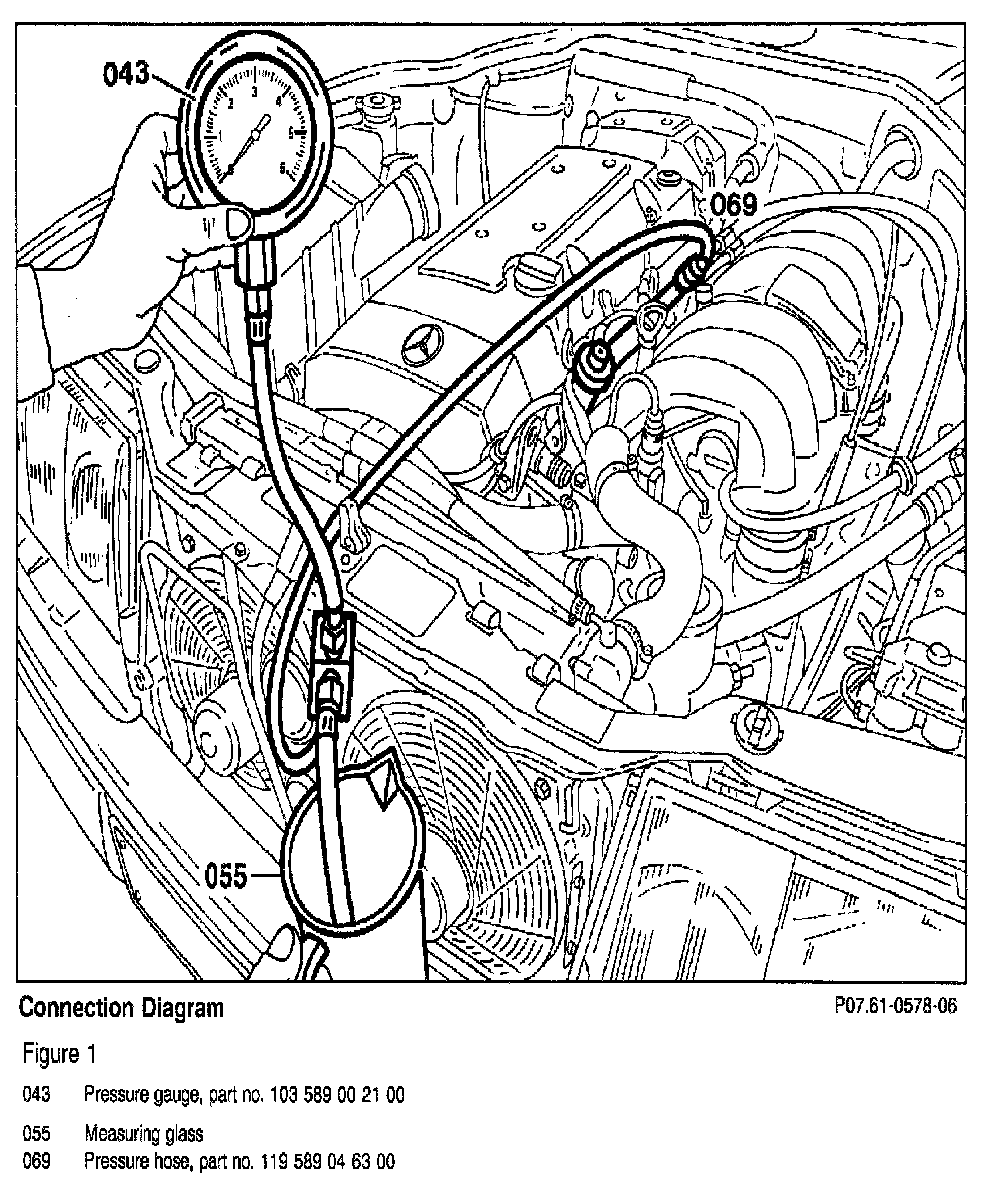

Figure 1:
