S 320 SWB (140.032) L6-3.2L (104.994)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Diagrams
>>
Connector Views
Connector Views
Engines 104/119/120 ME With ETC, ASR/ESP

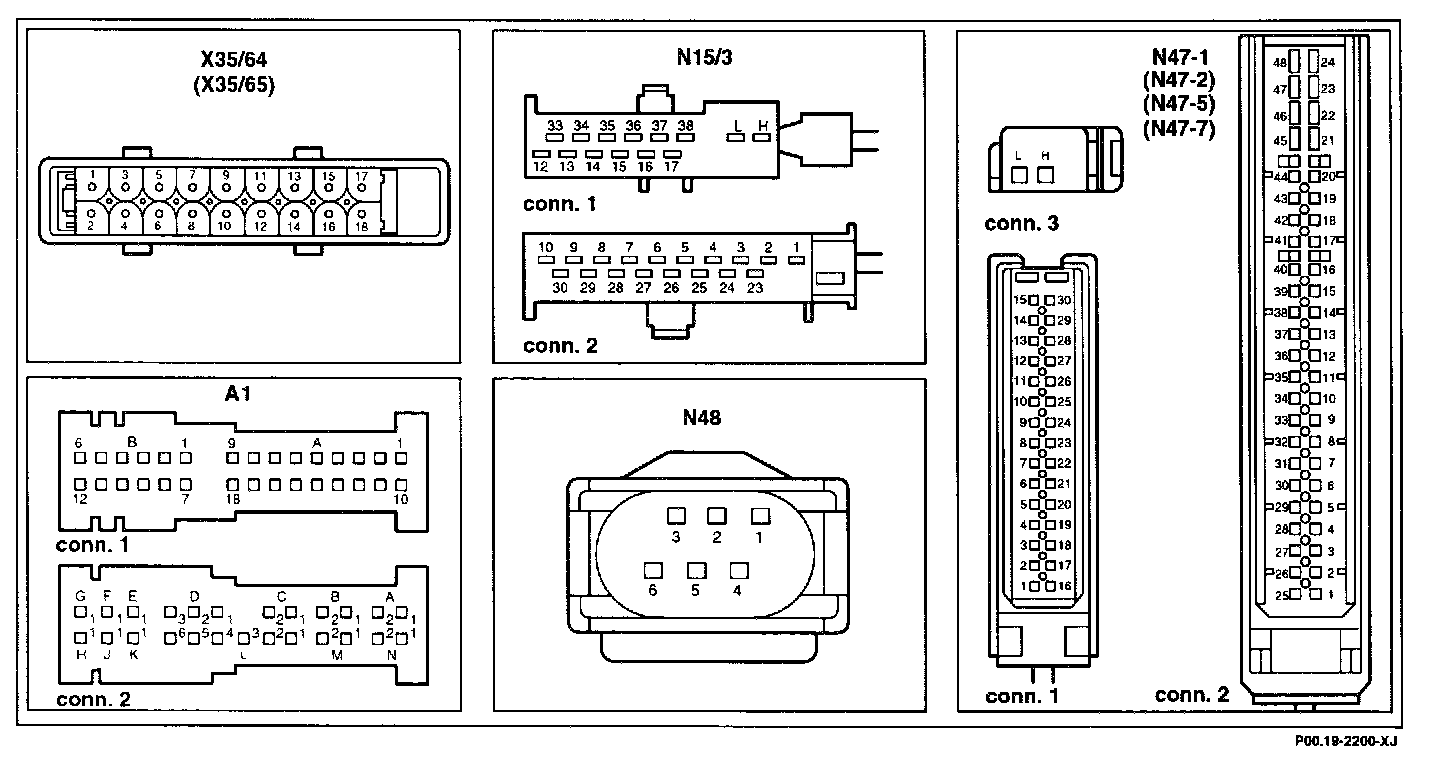

Connector Assignment:

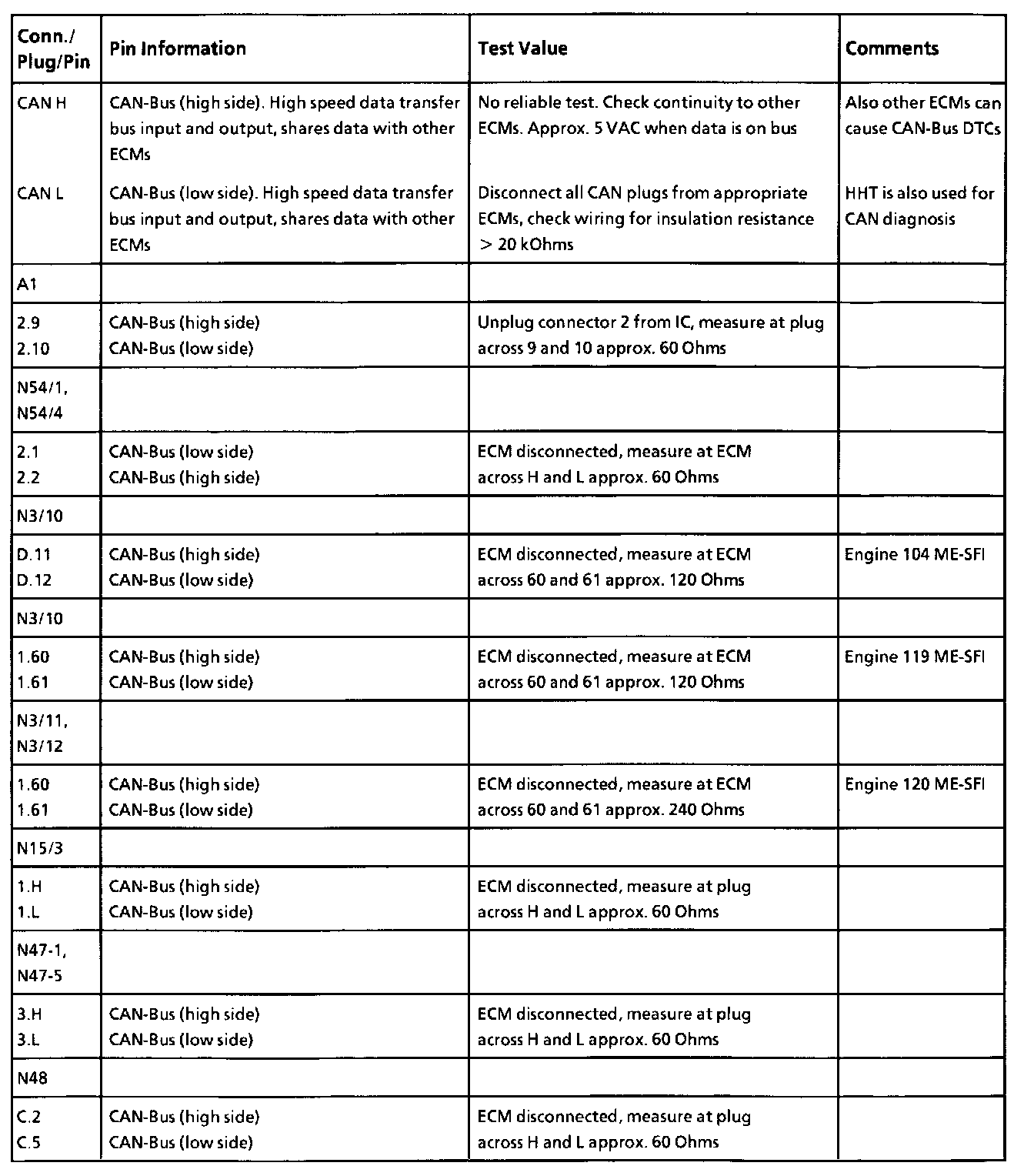

Pin Information:
All values measured to ground unless otherwise noted
