GF30.22-P-4010-02F Electronic Accelerator/Cruise Control/Idle Speed Control Actuator Design

GF30.22-P-4010-02F Electronic Accelerator/Cruise Control/Idle Speed Control Actuator Design
- with CODE (494a) USA version
- with CODE (807) Model year 1997
- with CODE (808) Model year 1998
- with CODE (498) as Model Year 97 Japanese version

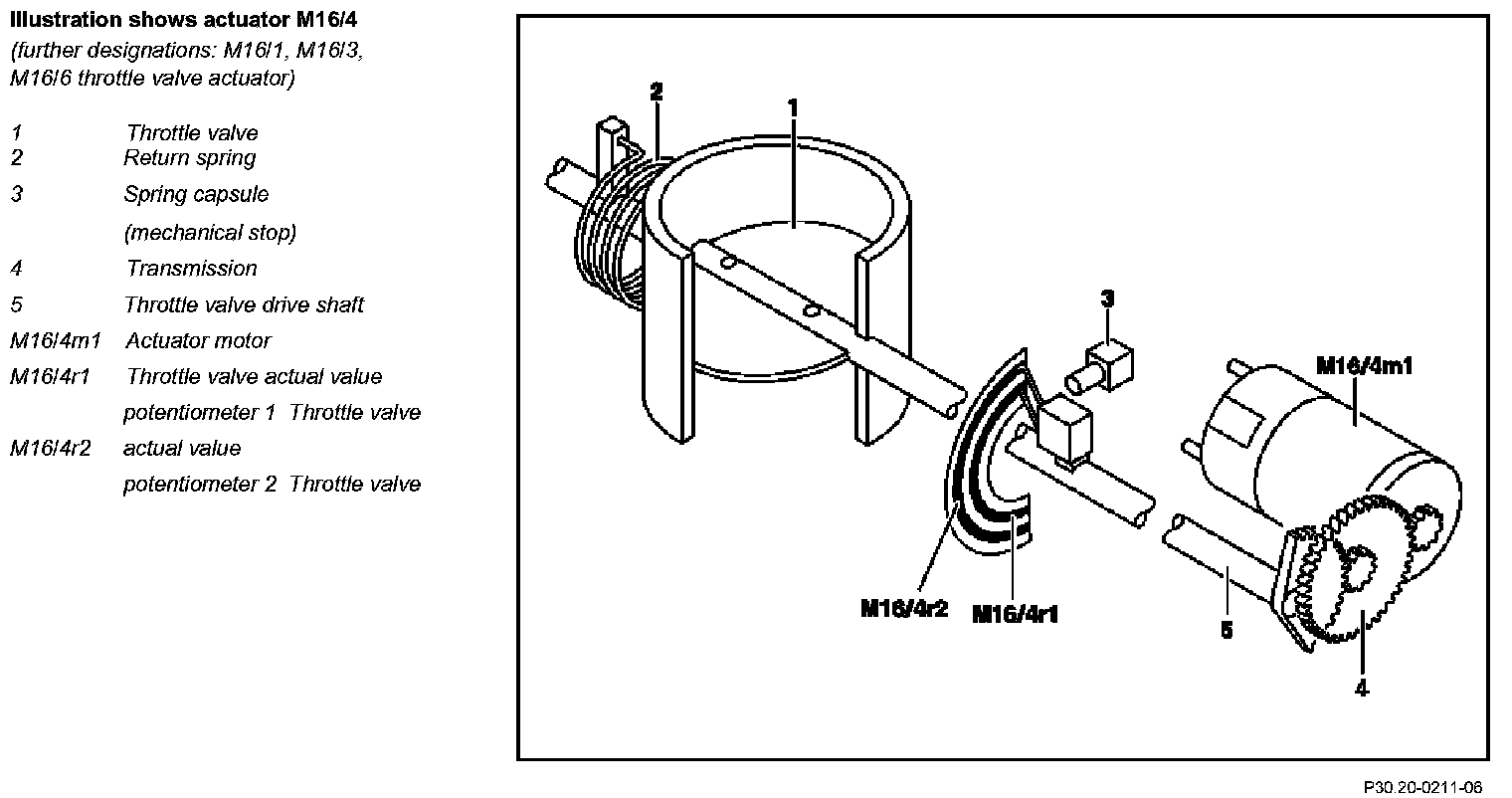

Each actuator contains two actual value potentiometers for detecting the position of the throttle valve. The second potentiometer is used as a reference value to the plausibility check. In addition, the system switches over to the second potentiometer if the first potentiometer fails.
