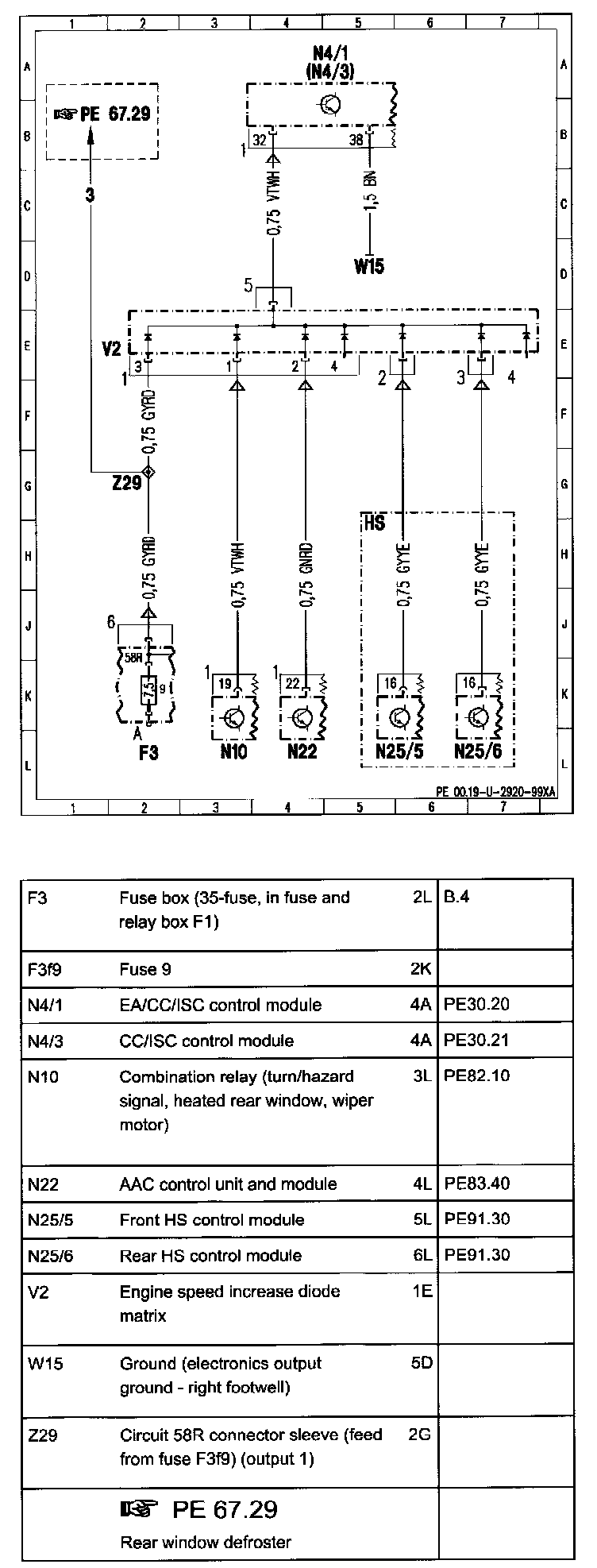

RPM Signal (DI/KSS) - PE00.19-U-2920-XA
RPM Signal (DI/KSS) - PE00.19-U-2920-XA
PE00.19-U-2920-XA - DI/KSS:
