F3 - Fuse Box (35 Fuse, In Fuse and Relay Box F1)
>>
Connection Survey of Consumers
Connection Survey of Consumers

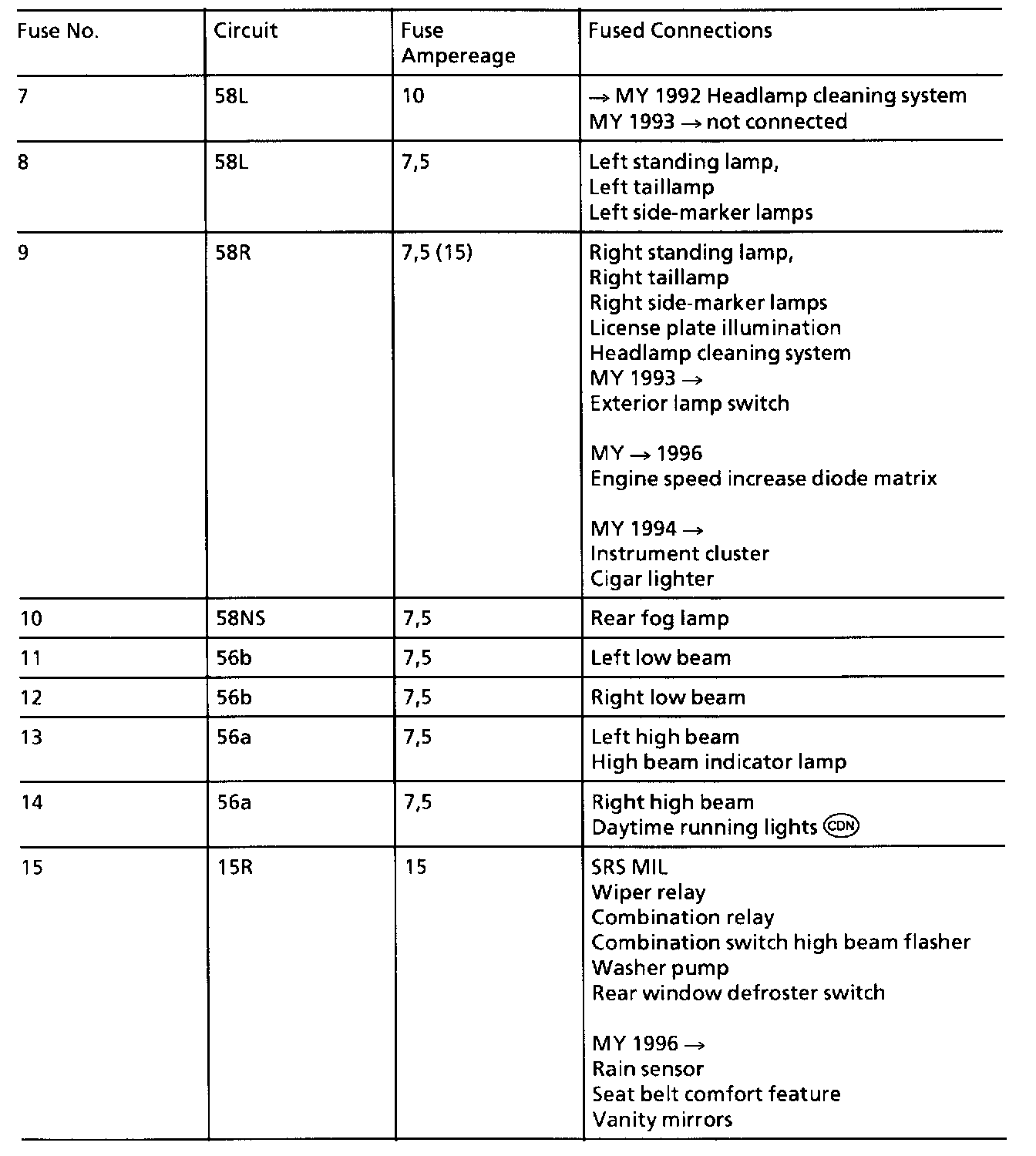

Fuses 7 - 15:

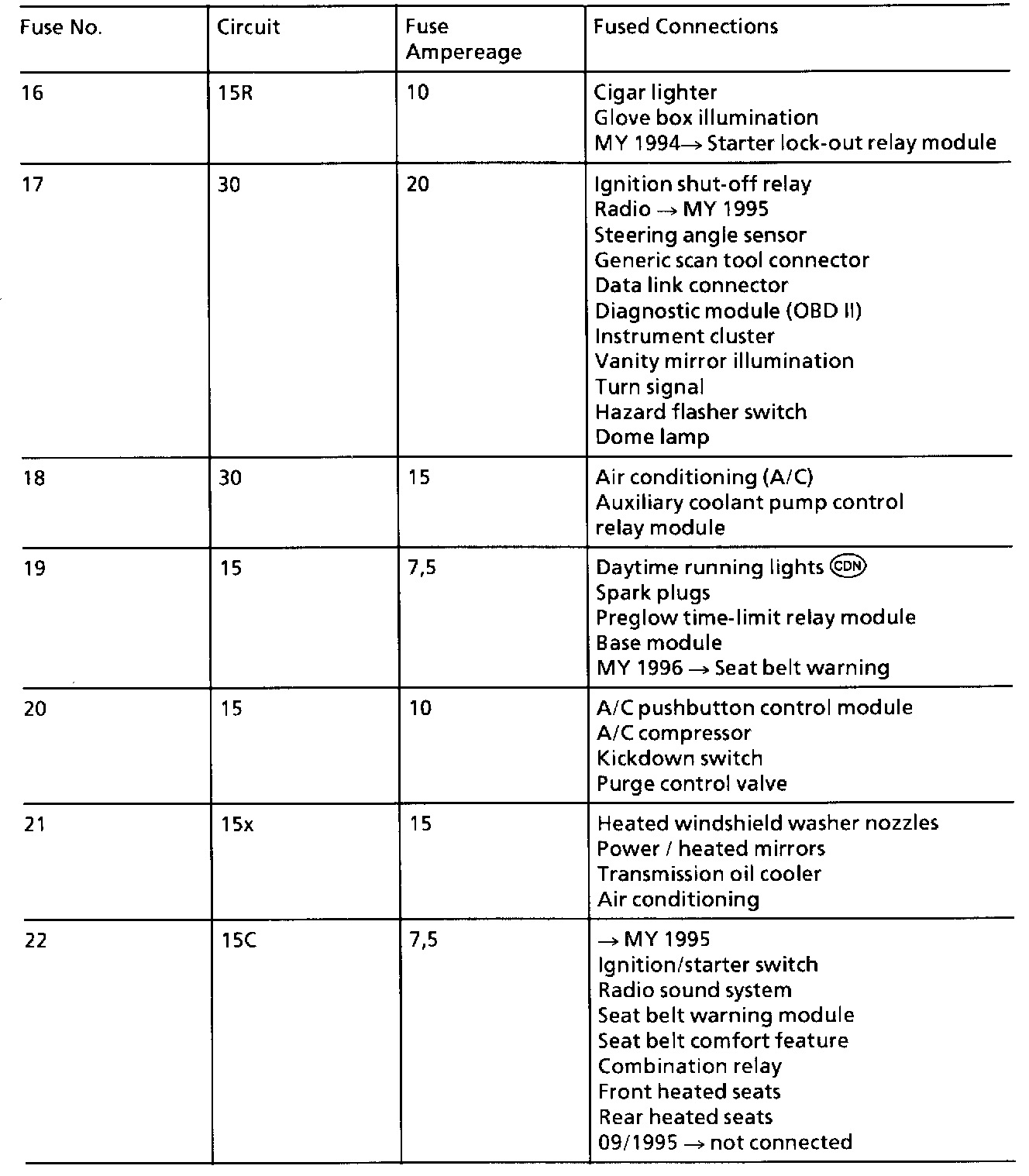

Fuses 16 - 22:

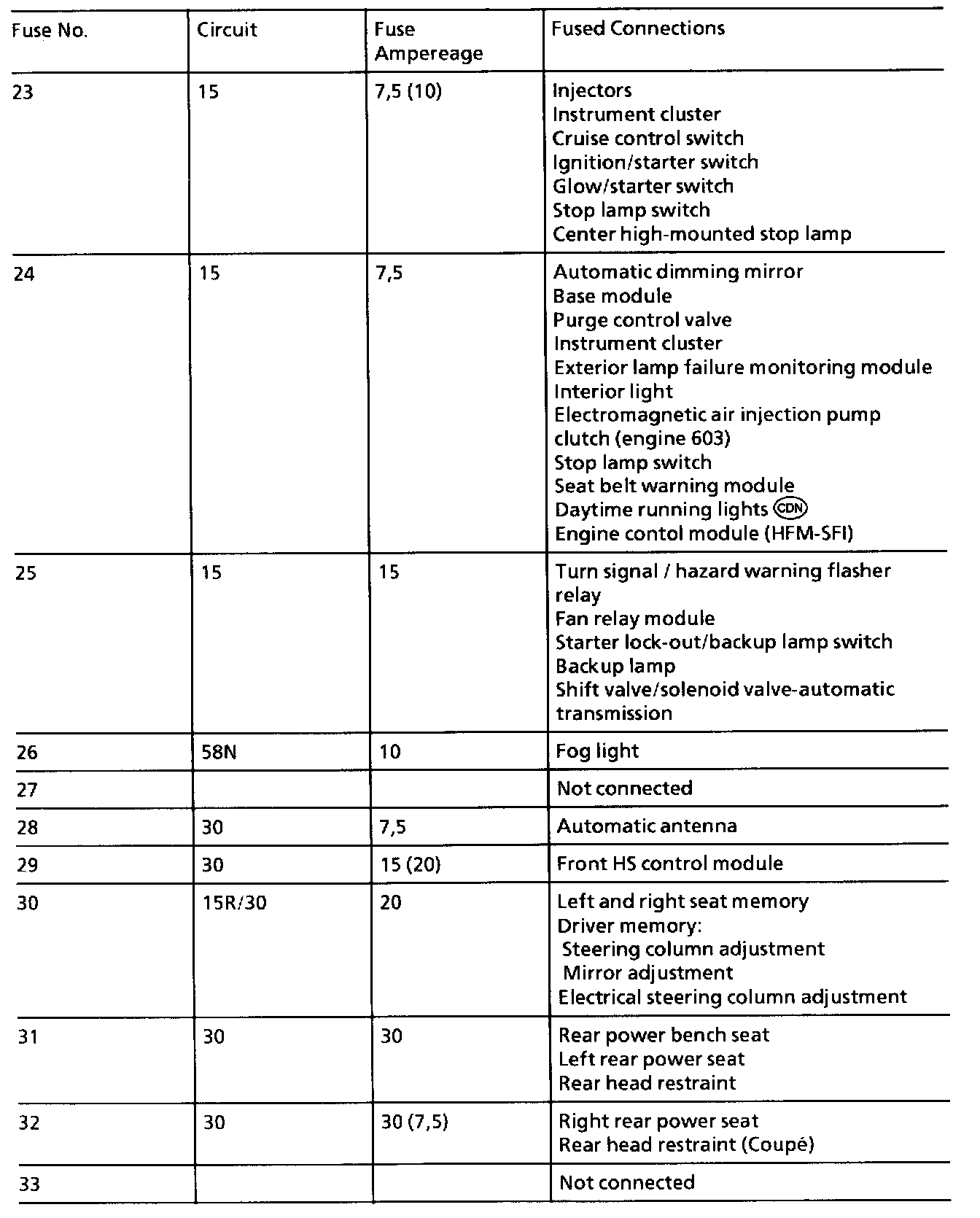

Fuses 23 - 33:

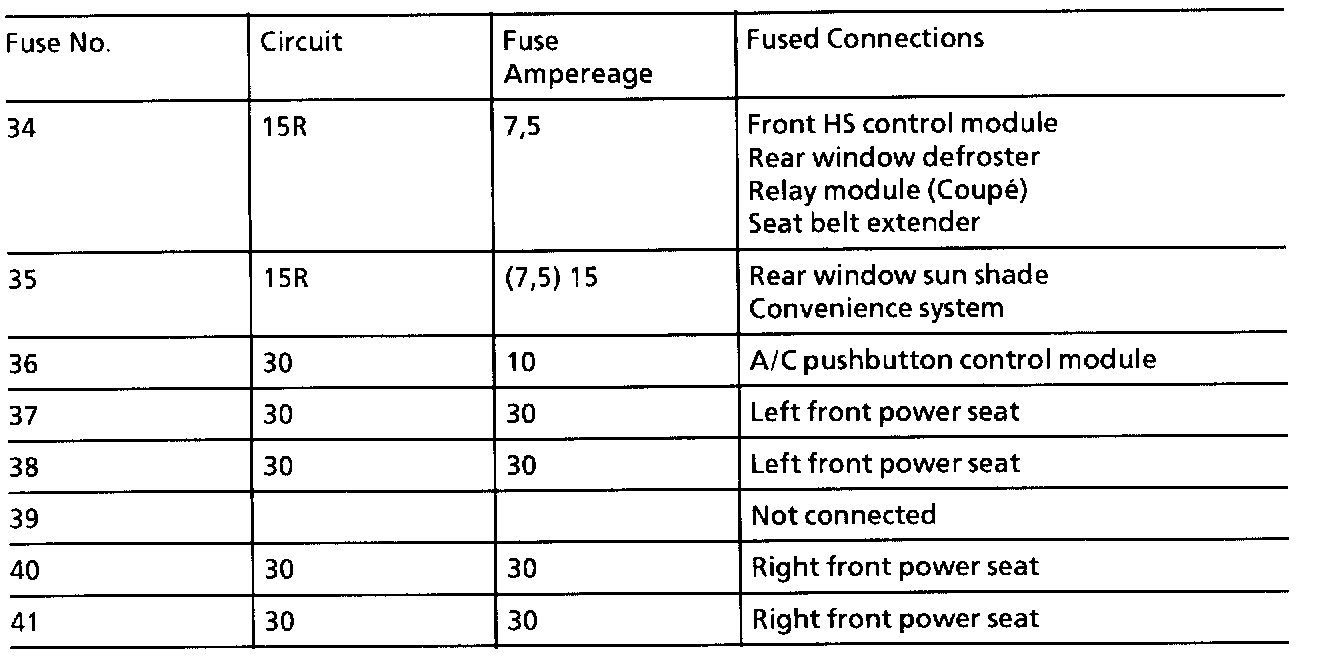

Fuses 34 - 41:
