Headlamp Control Module: Service and Repair

Preliminary work:
Headlamp unit removed. Service and Repair

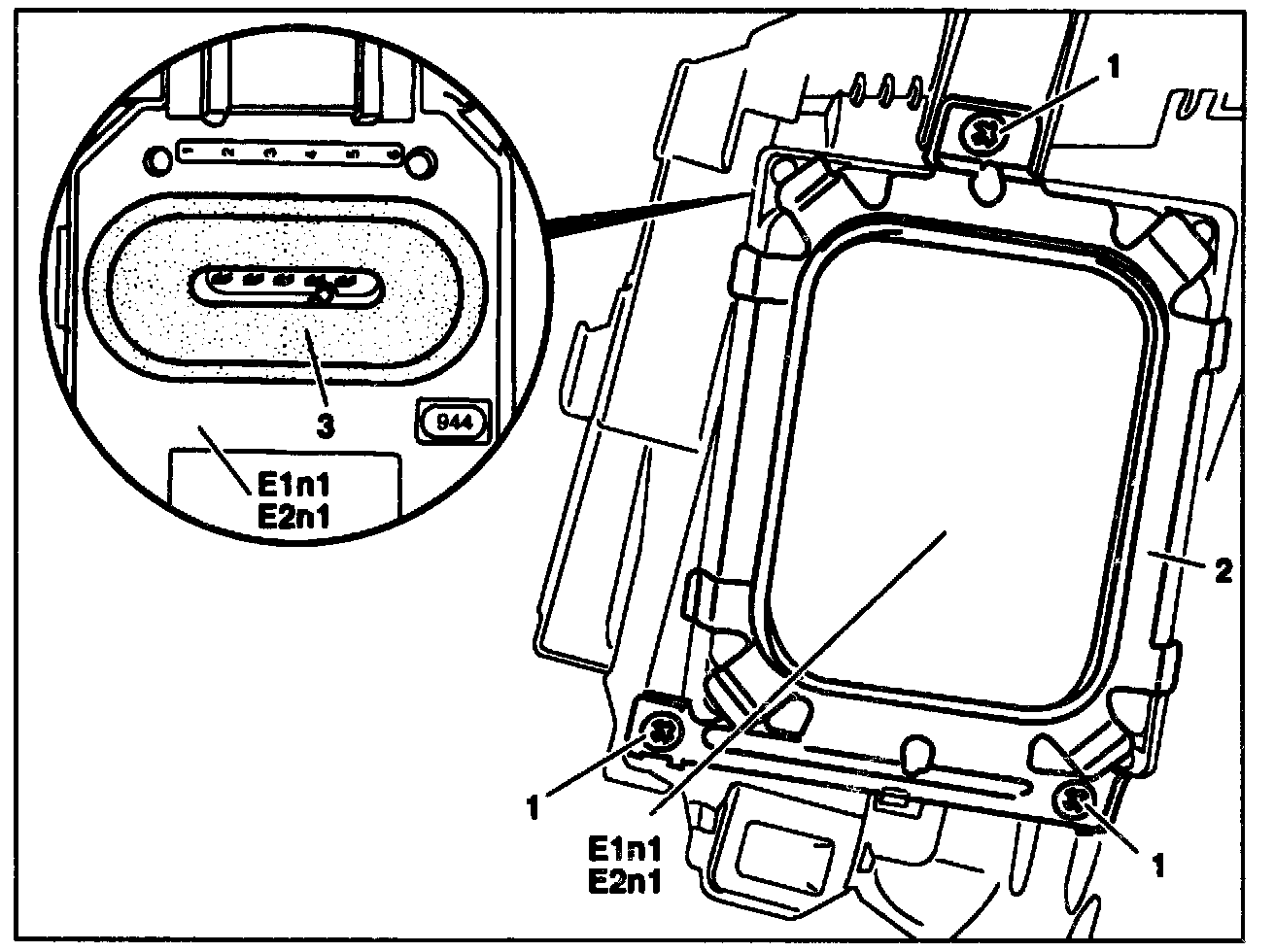

Screws (1)
unscrew, screw in.

Holder (2)
remove, install.

Control module (E1n1, E2n1)
disconnect, connect.


NOTE: Observe coding for control module (arrow)


NOTE: Check gasket for damage, if gasket is damaged replace control module (E1n1, E2n1)


NOTE: When installing ensure that the gasket is seated correctly.
