Headlamp Alignment Control Module: Service and Repair

Replacing Electric Headlamp Range Adjustment Control Module For Vehicles With Xenon Headlamps

Preliminary work:
Foot support in passenger footwell removed.

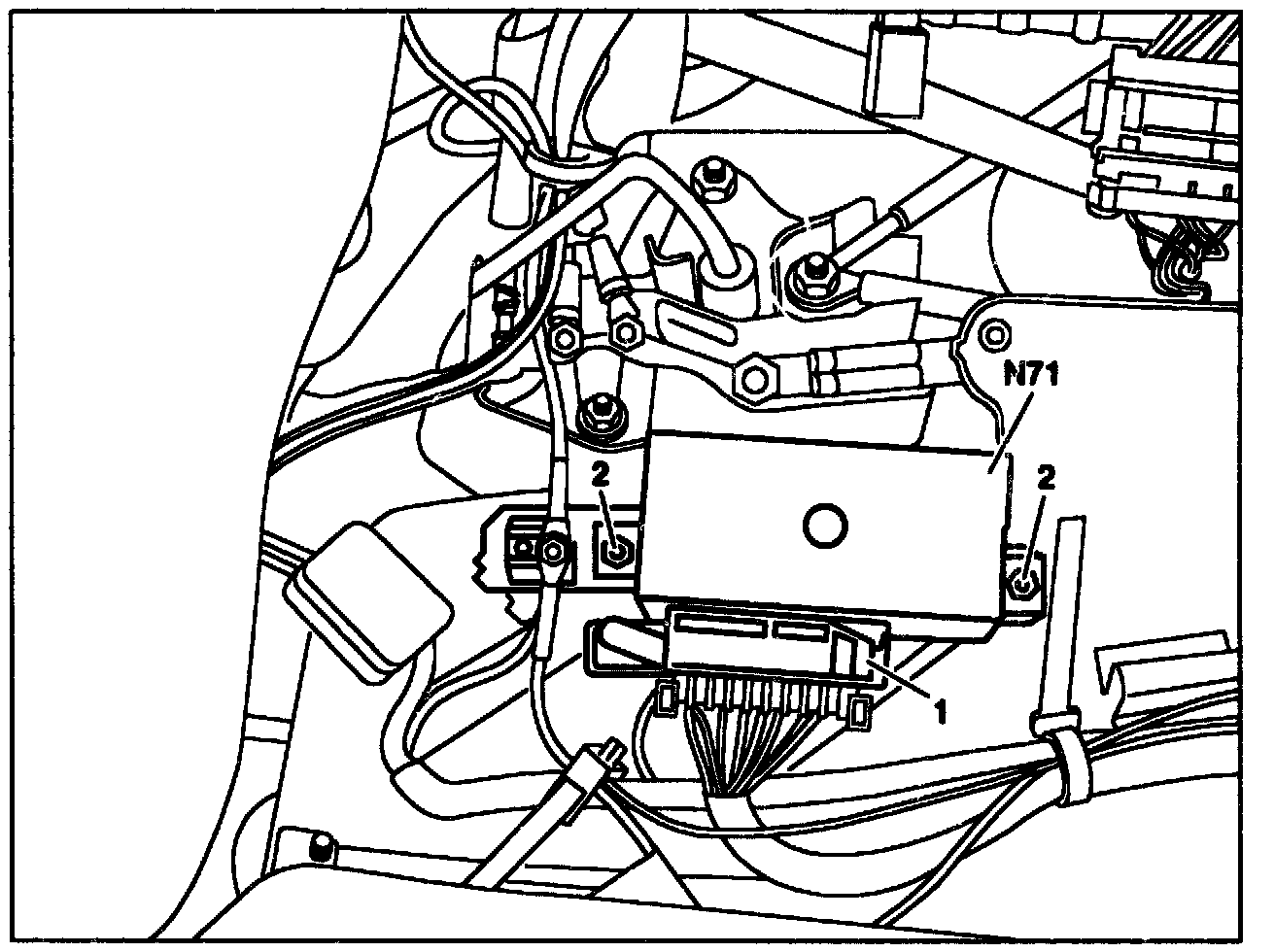

Screws (2)
unscrew, screw in.
Connector (1)
disconnect, reconnect.
Headlamp range adjustment control module (N71)
remove, insert.
After installation of headlamp range adjustment control module (N71)
adjust headlamps to zero position with HHT.
check with adjustment unit and adjust if necessary.
