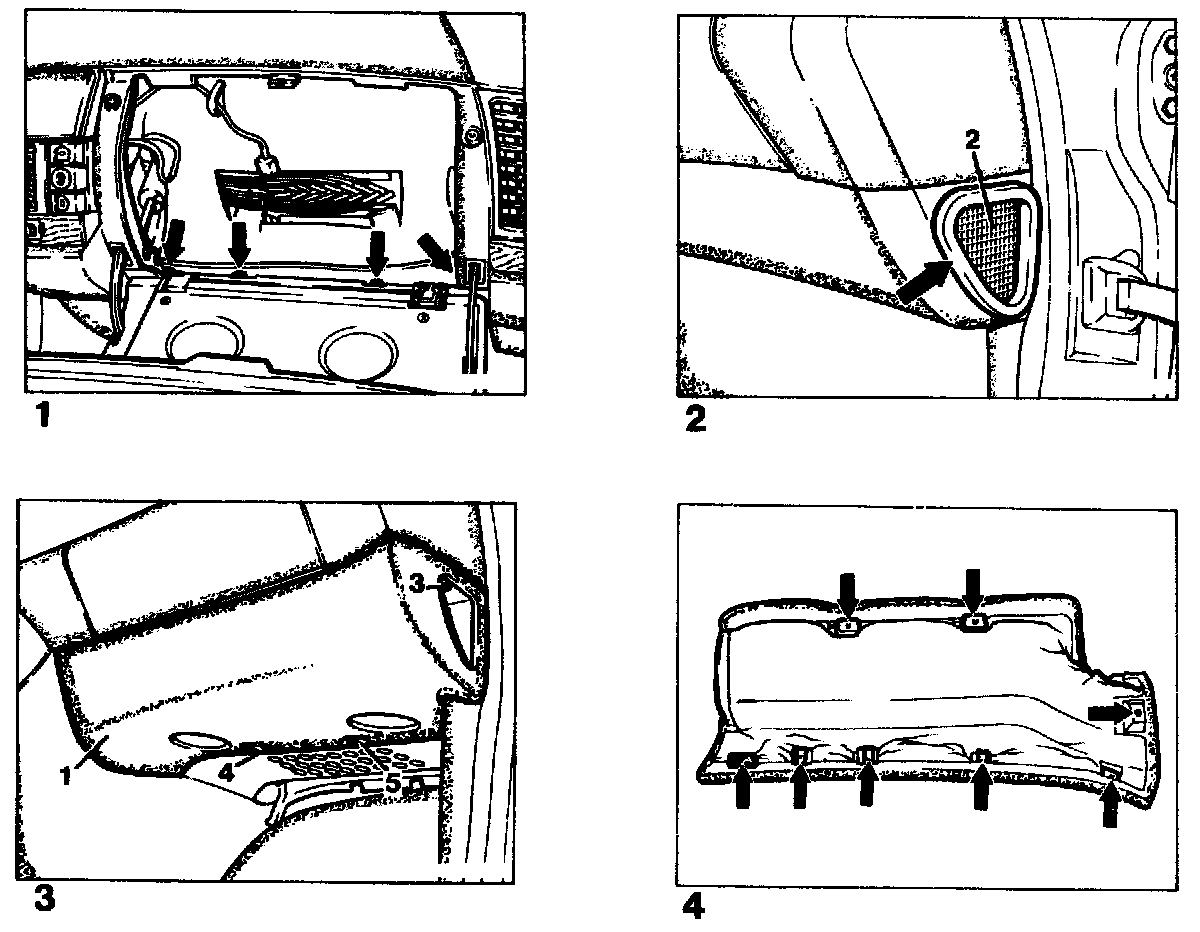

Remove/Install Cover Below Instrument Panel (Right)

Glove compartment
remove.

Screws (arrows)
screw out (8 mm, 4 each).

Air grate (2)
press out with plastic wedge.

Screw (3)
screw out (8 mm).

Screws (4 and 5)
screw out (8 mm).

Cover (1)
pull down on front pillar and remove by extending attachment hook on instrument panel.

Reinstall in opposite order.



Installation note






When installing push cover (1) onto air duct while simultaneously inserting attachment hook on instrument panel (arrows).
