Remove/Install Cover Below Instrument Panel (Left)

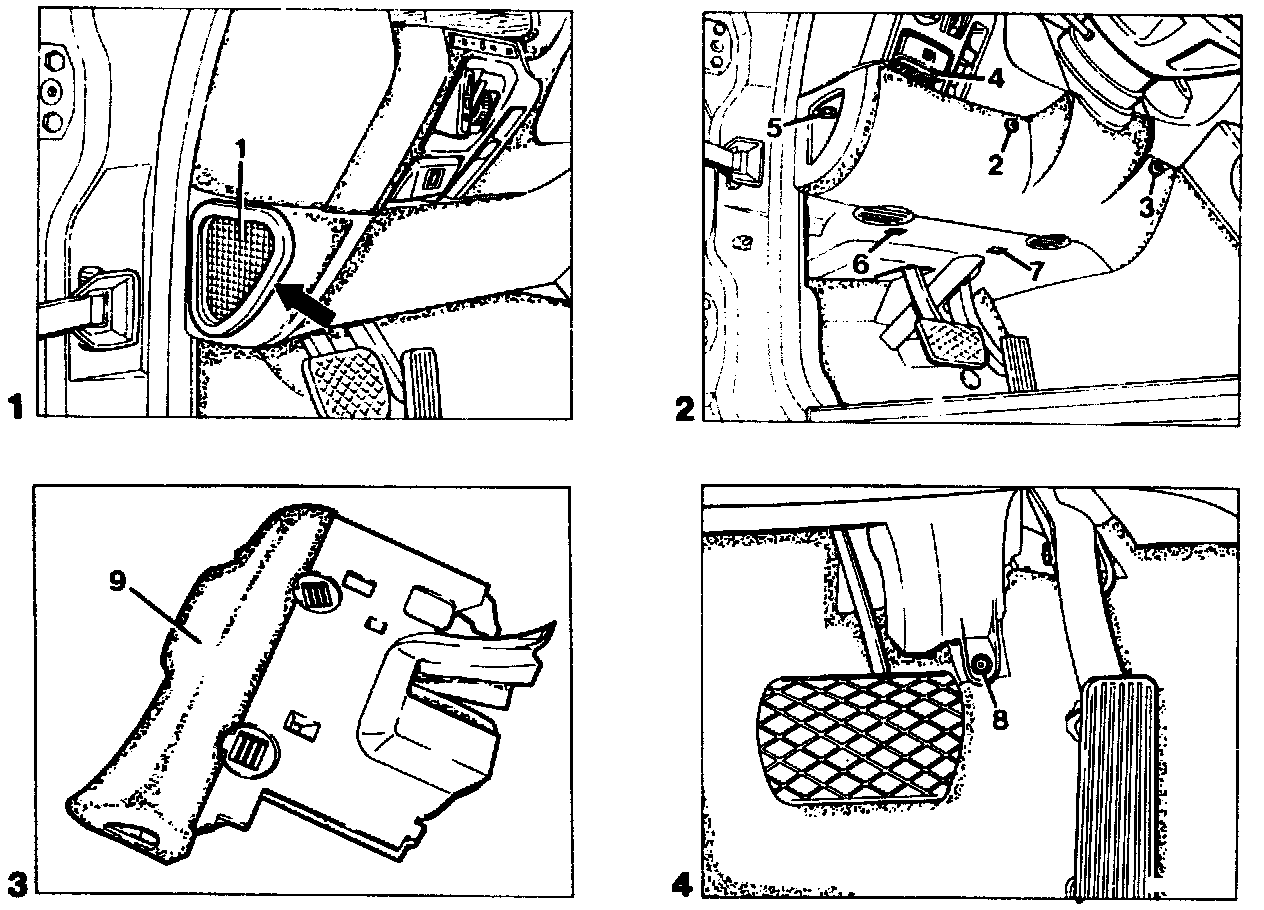

Air grate (1)
push out with plastic wedge.
Screws (2 and 3)
screw out, hold cover down for access.
Screw (4)
screw out.
Screws (5, 6 and 7)
screw out (8 mm).
Nut (8)
screw off (10 mm).
Cover (9)
pull down and remove.
Reinstall
in opposite order.


Installation note

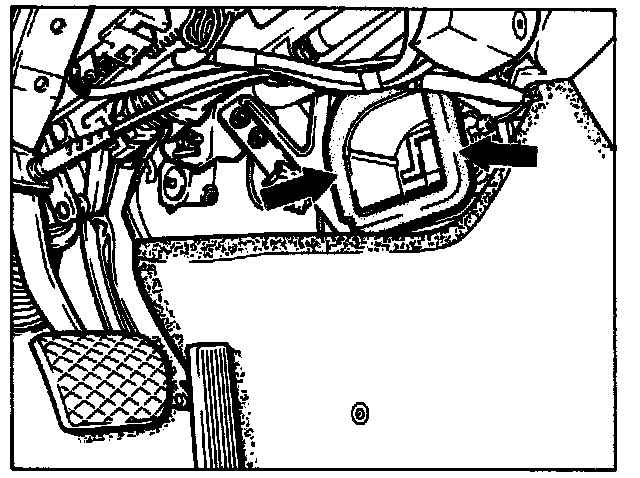

When installing push cover (9) onto air duct (arrows).
