Home >> Mercedes Benz >> 1999 >> S 320 SWB (140.032) L6-3.2L (104.994) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Scan Tool Testing and Procedures

Scan Tool Testing and Procedures




Air Conditioning (A/C)

Models 140 (as of MY 1996)

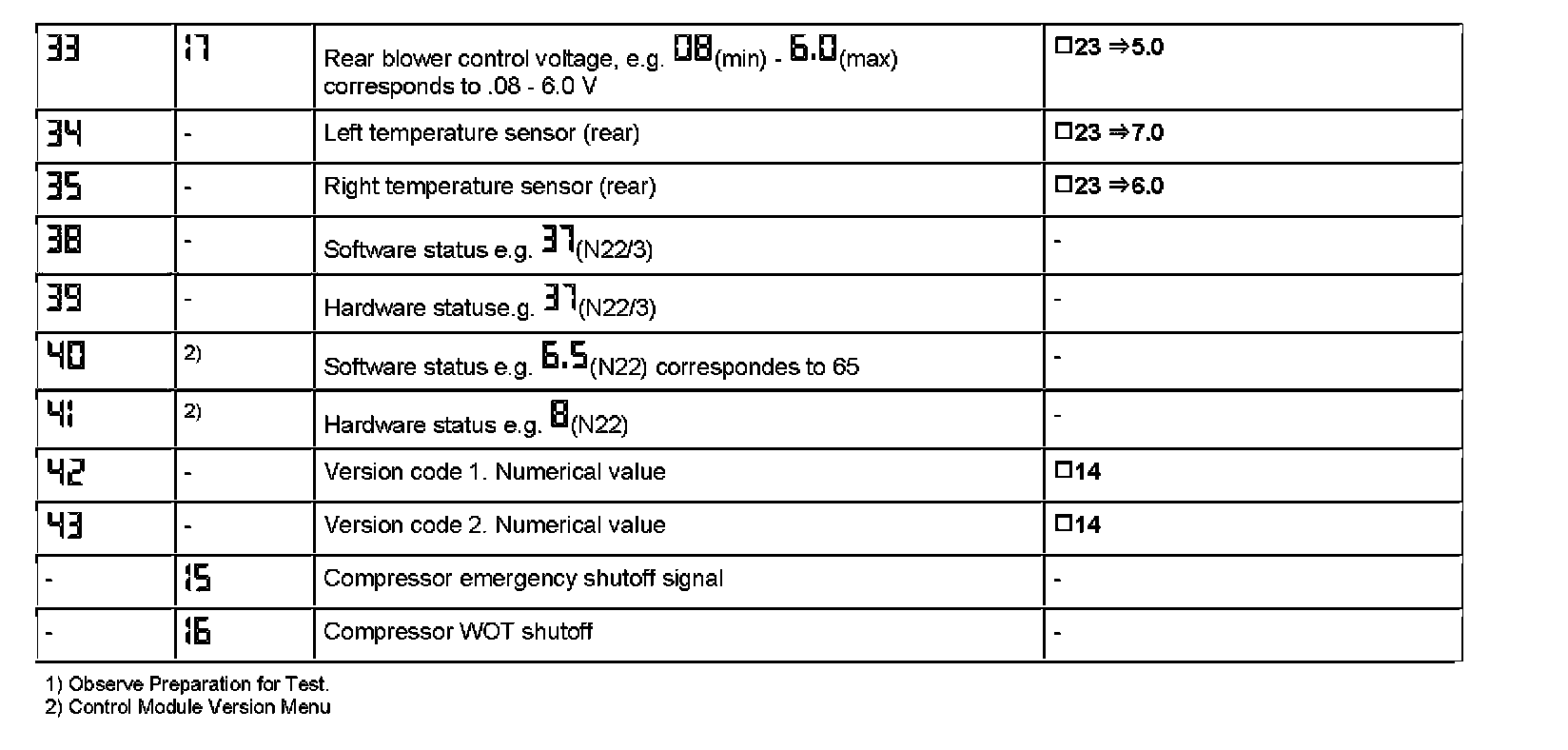

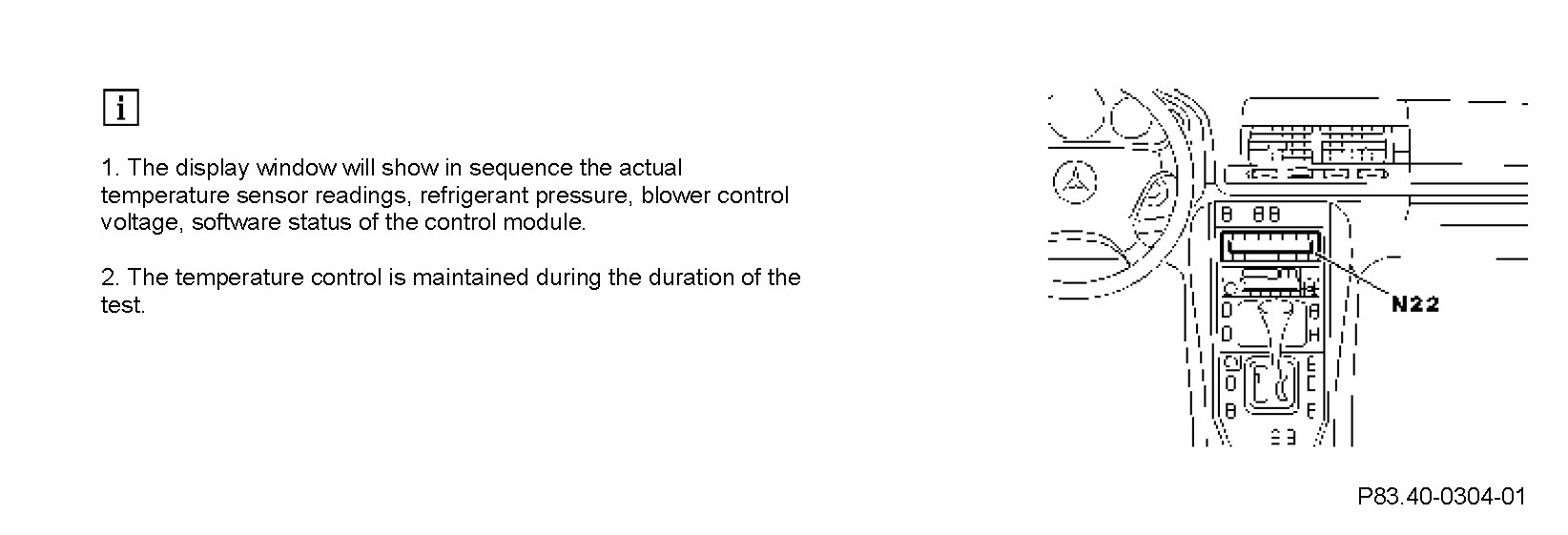

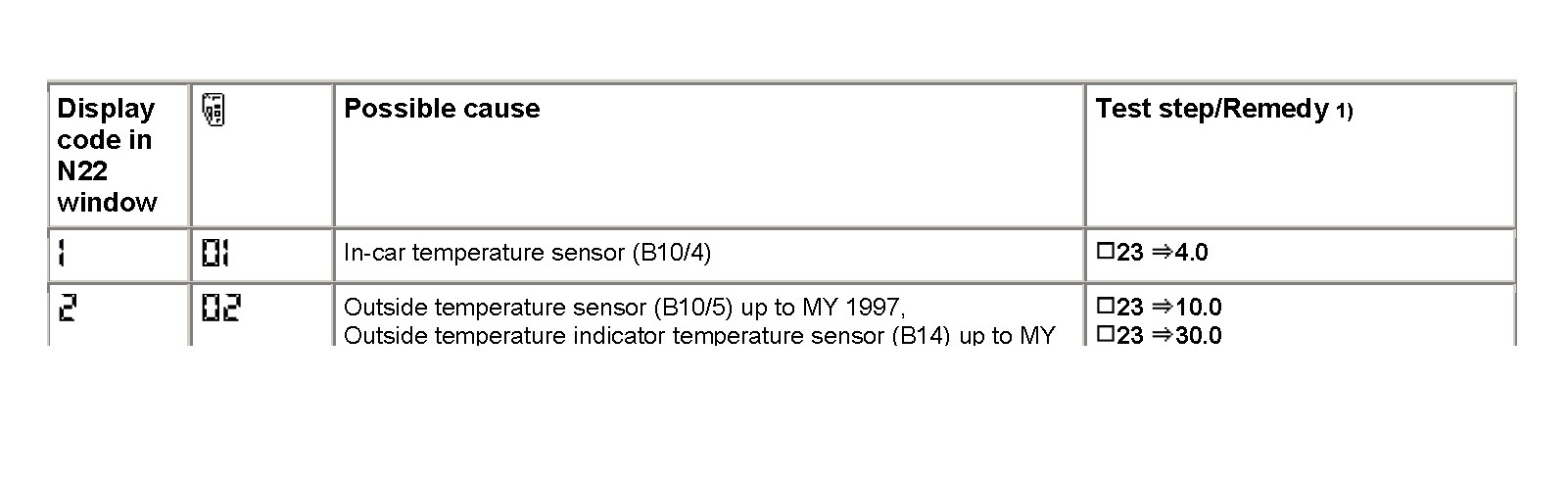

Reading Actual Values (via A/C Pushbutton Control Module [N22])
