ETP - Component Locations [21]
Air Conditioning (A/C)
Models 140 (as of MY 1996)

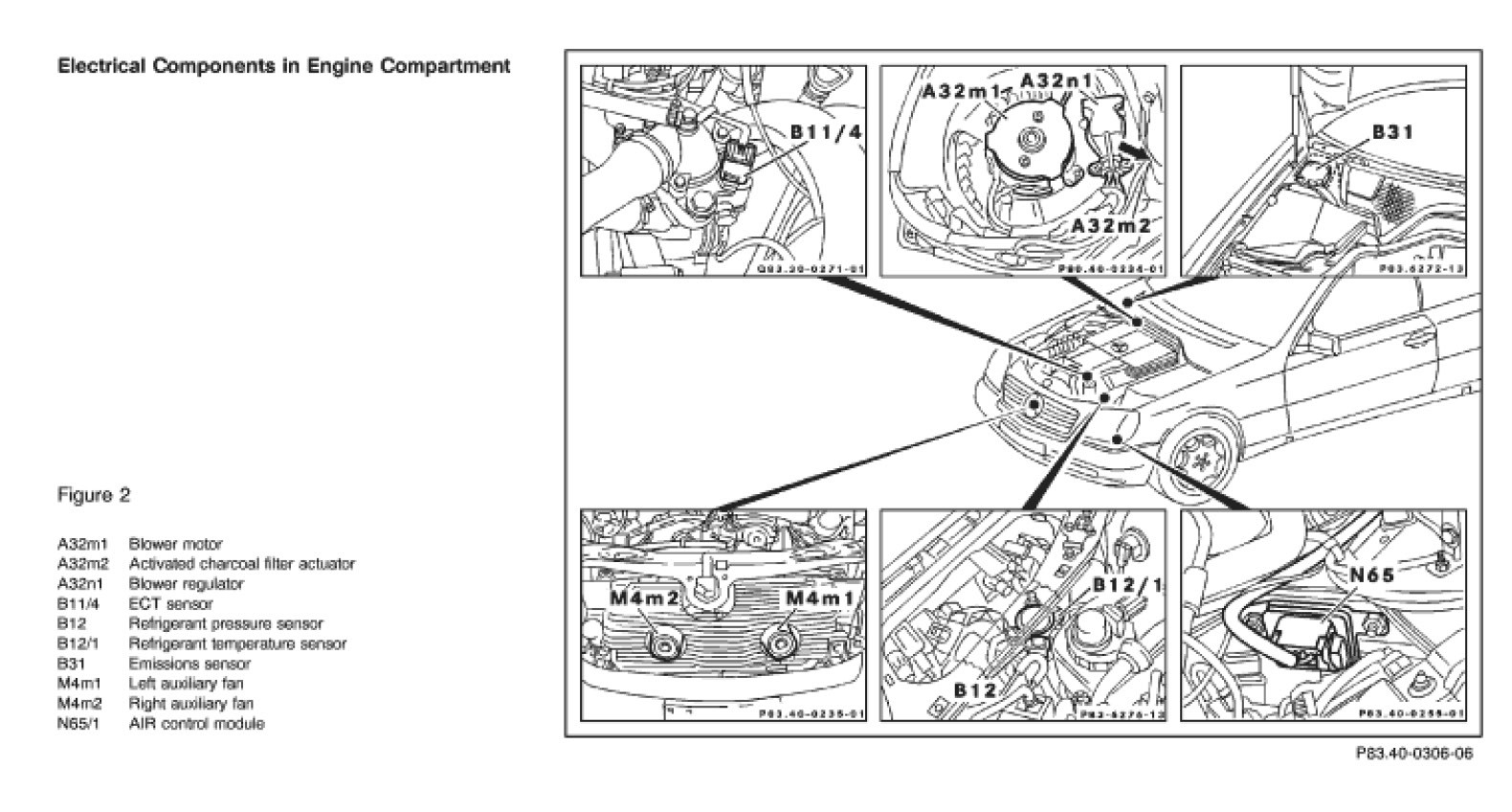

Electrical Test Program [ETP] - Component Locations
