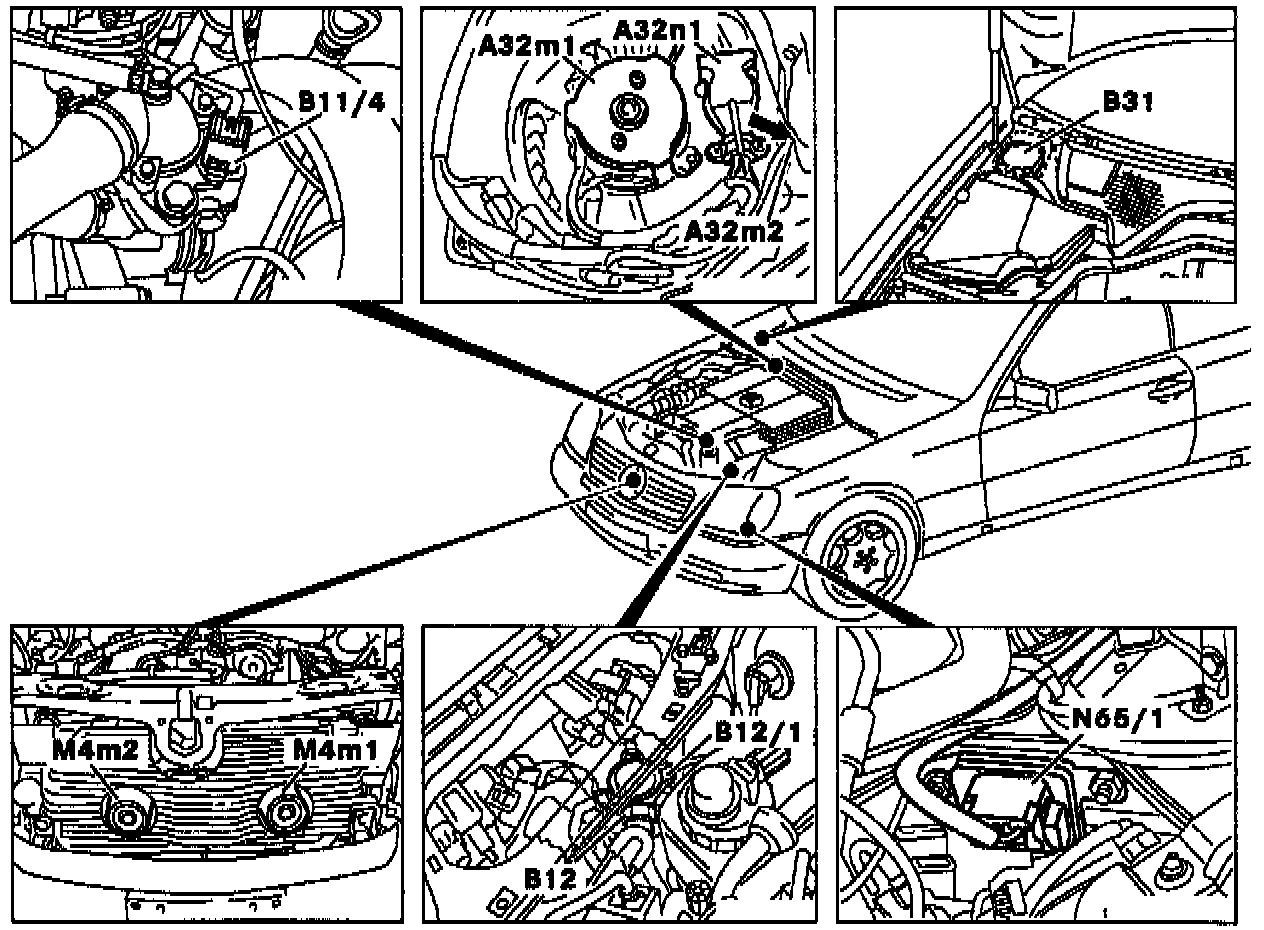

Component Locations In Engine Compartment

Electrical Components In Engine Compartment:
A32m1 Blower motor
A32m2 Activated charcoal filter actuator
A32n1 Blower regulator
B11/4 ECT sensor
B12 Refrigerant pressure sensor
B12/1 Refrigerant temperature sensor
B31 Emissions sensor
M4m1 Left auxiliary fan
M4m2 Right auxiliary fan
N65/1 AIR control module
