Mercedes Benz
>>
1999
>>
S 320 SWB (140.032) L6-3.2L (104.994)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
System Diagram
>>
Rear Fuse Box (F4)
>>
Wiring Diagram of Consumers
Wiring Diagram of Consumers

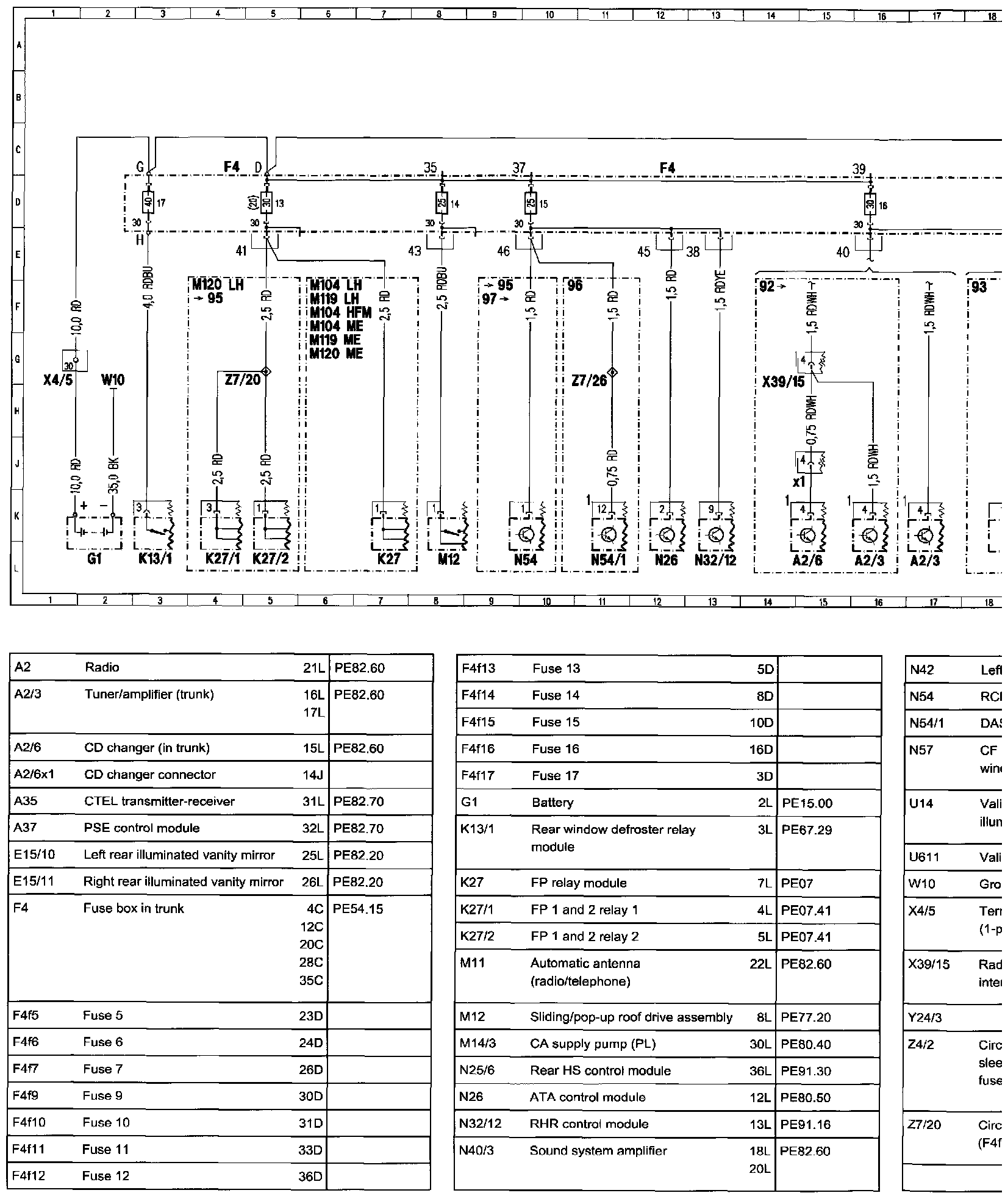

�*�(Diagram 1 - F4 - Rear Fuse Box (17 Fuse, In Trunk):

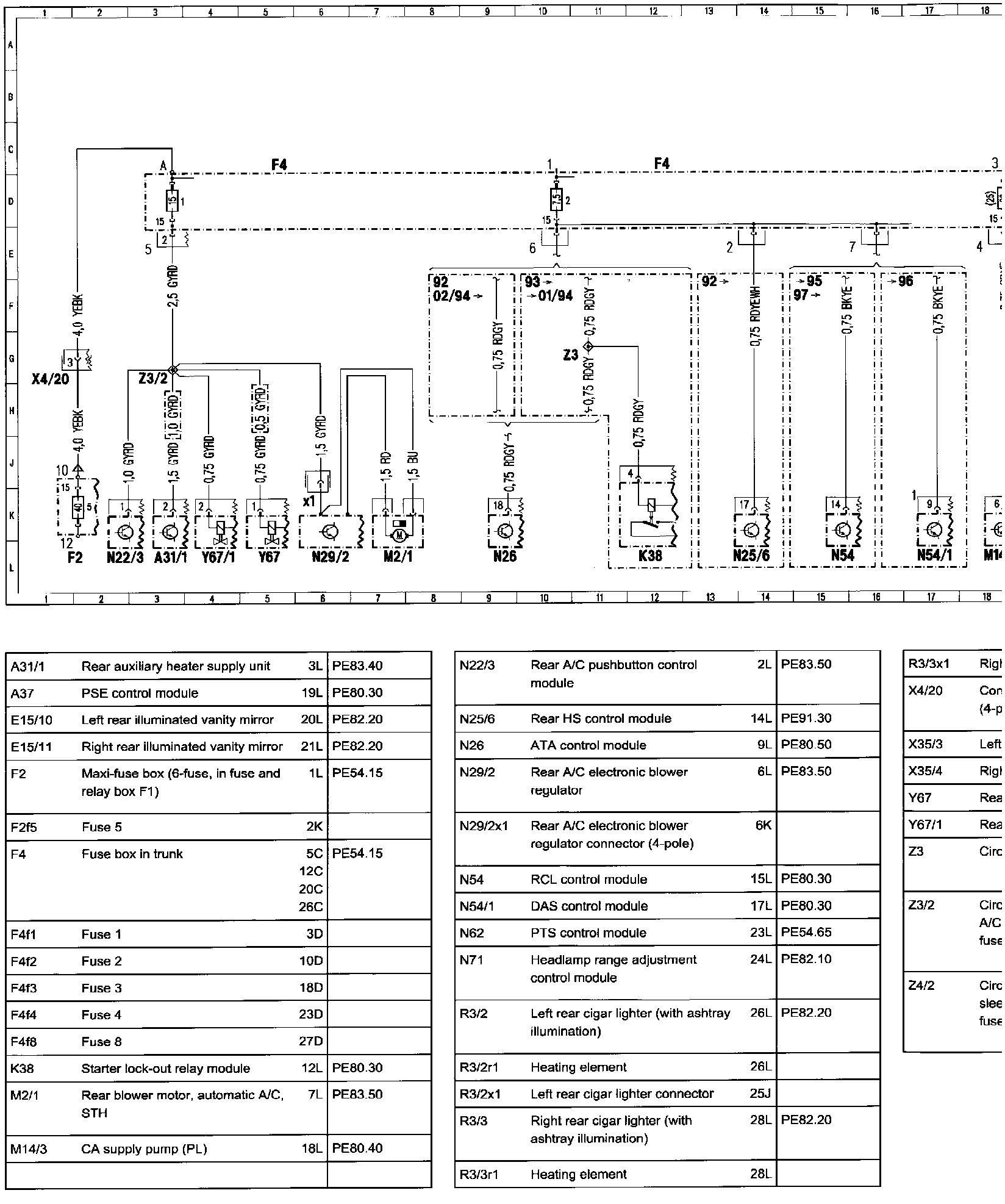

Œ(��(Diagram 2 - F4 - Rear Fuse Box (17 Fuse, In Trunk):
