Home >> Mercedes Benz >> 1999 >> S 320 SWB (140.032) L6-3.2L (104.994) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> F2 - Maxi-Fuse Box (6 Fuse, In Fuse and Relay Box F1) >> Wiring Diagram of Consumers

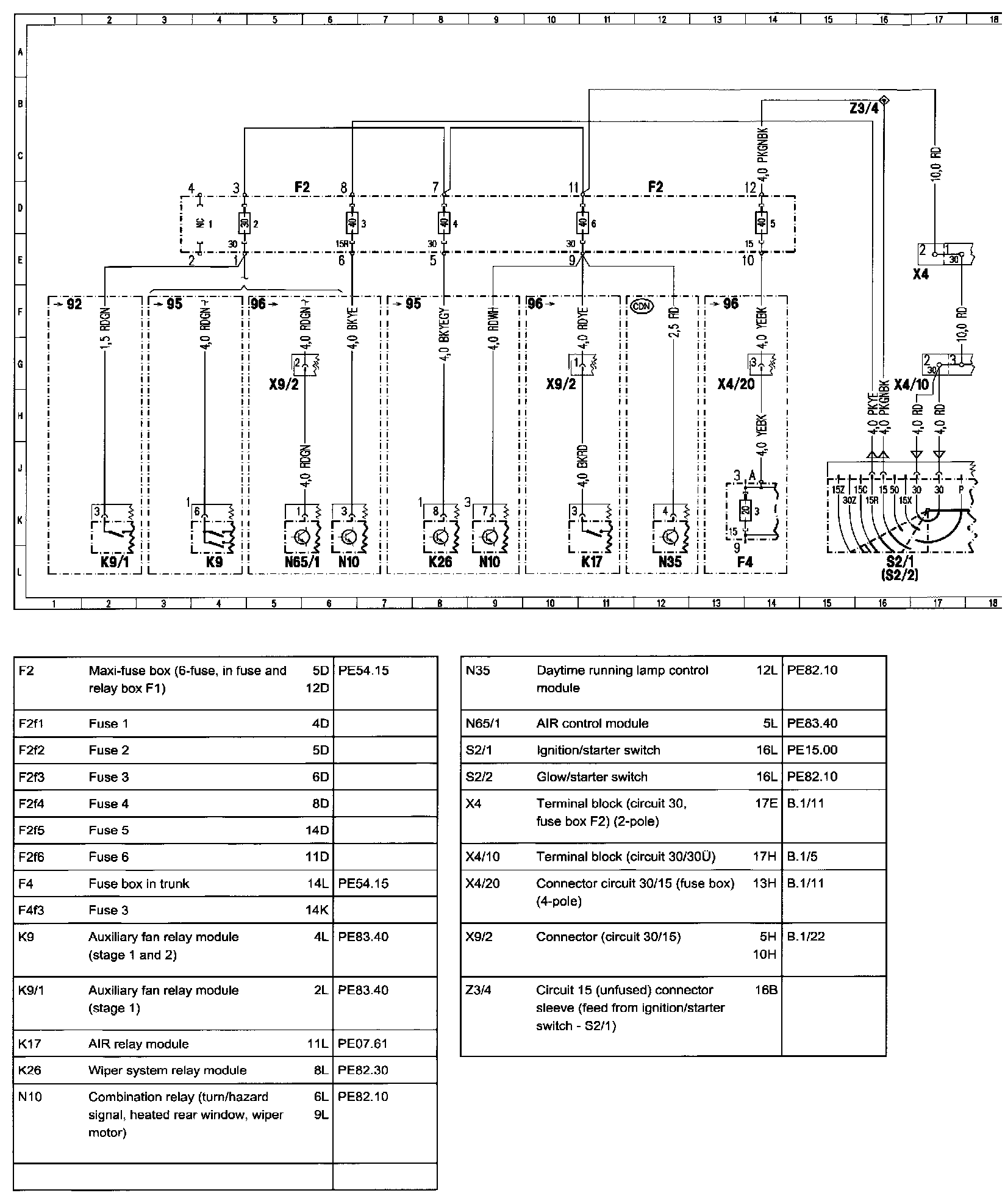

Wiring Diagram of Consumers




�0�(F2 - Maxi-Fuse Box (6 Fuse, In Fuse and Relay Box F1):
