Mercedes Benz
>>
1999
>>
S 320 SWB (140.032) L6-3.2L (104.994)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
System Diagram
>>
Circuit 30 Wiring PE00.19-U-2710XB
Circuit 30 Wiring PE00.19-U-2710XB

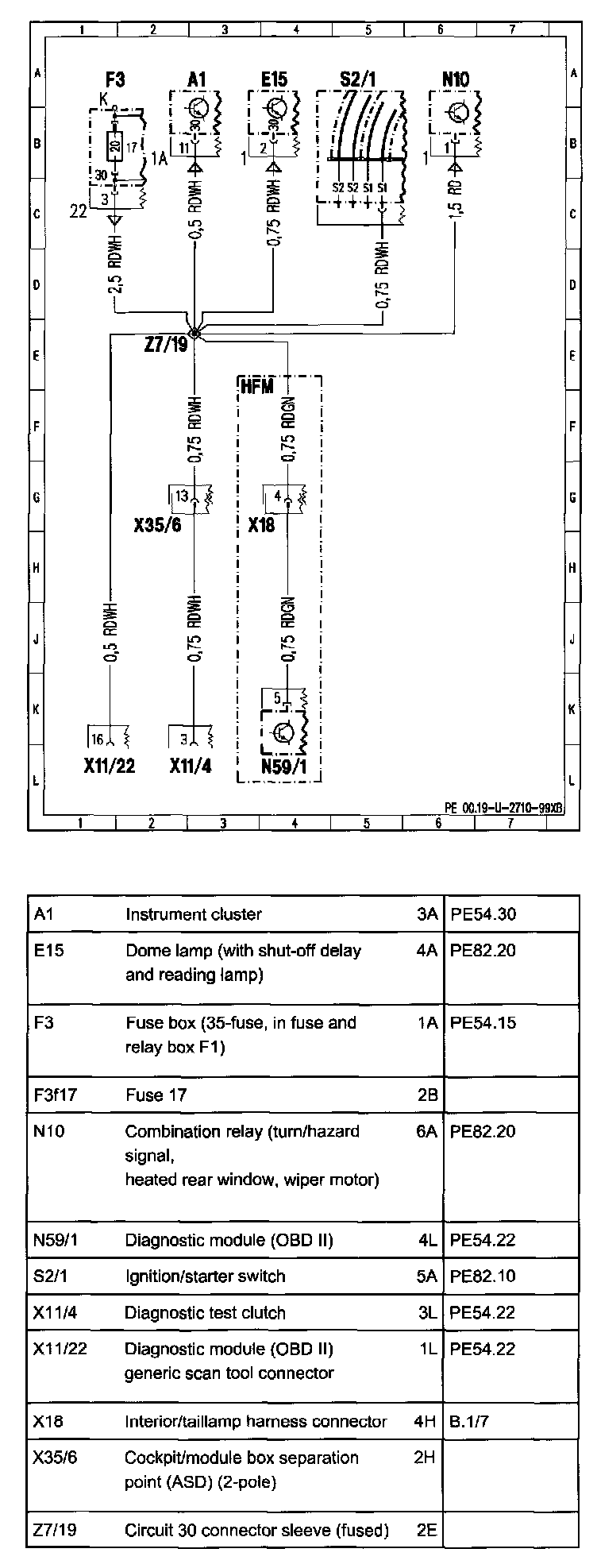

PE00.19-U-2710-XB - Voltage Distribution Via Connector Sleeve Z 7/19:
