Mercedes Benz
>>
1999
>>
S 320 SWB (140.032) L6-3.2L (104.994)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Drive Authorization System (DAS) PE80.57-U-2000XZ
Drive Authorization System (DAS) PE80.57-U-2000XZ

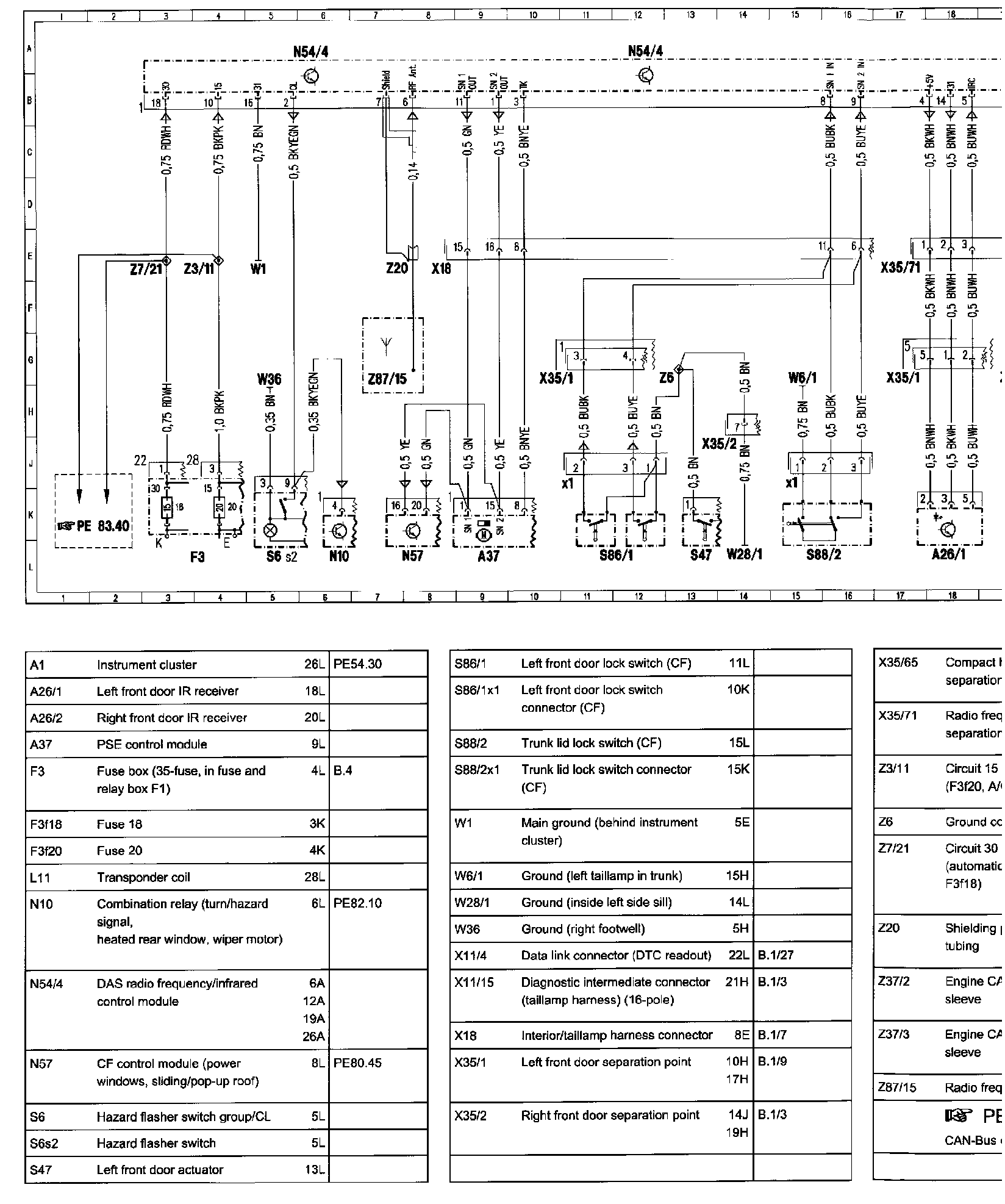

�8PE80.57-U-2000-XZ - RCL With DAS 2B:
