Home >> Mercedes Benz >> 1999 >> S 320 SWB (140.032) L6-3.2L (104.994) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Anti-Theft Alarm System (ATA) PE80.50-U-2000XZ

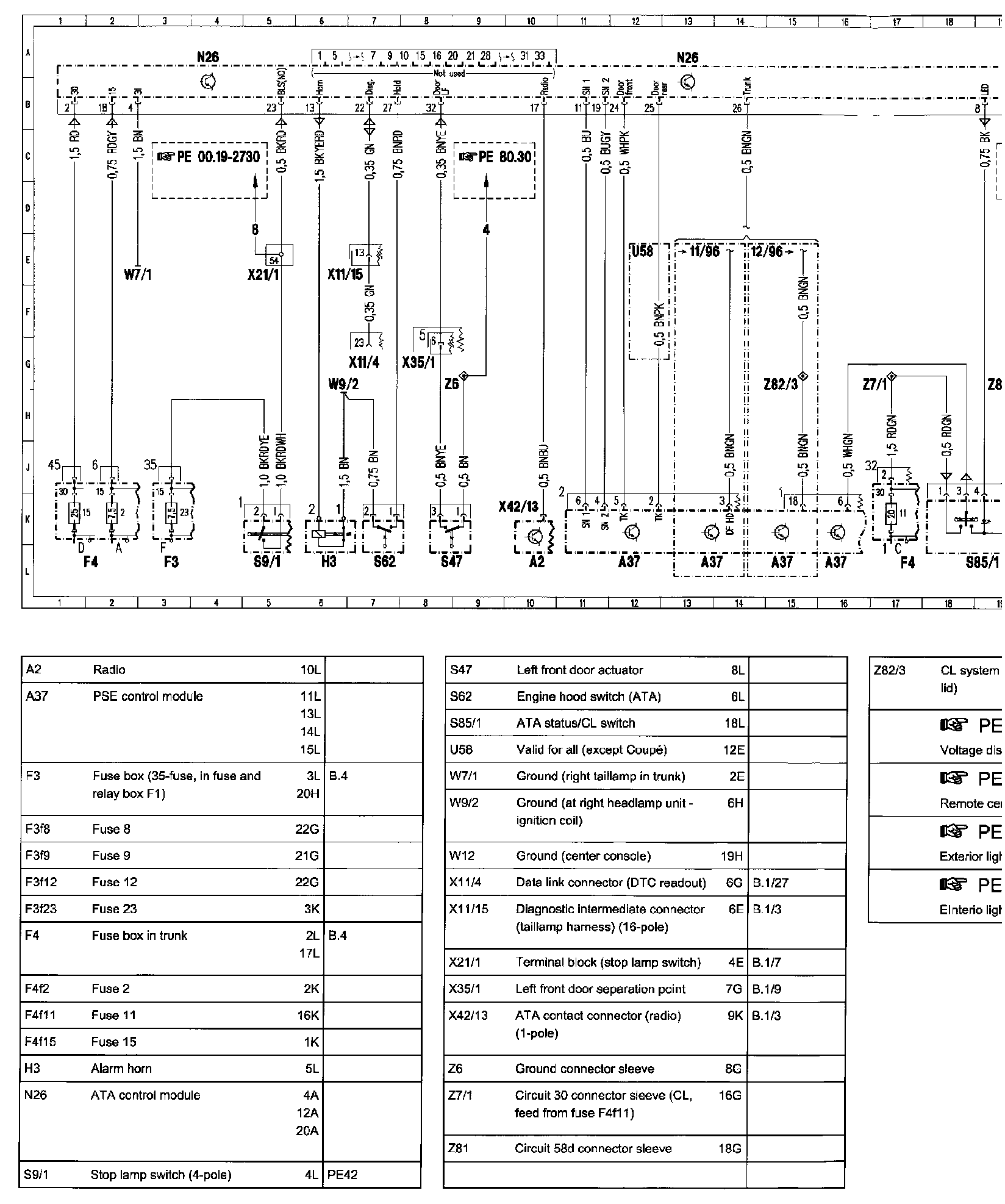

Anti-Theft Alarm System (ATA) PE80.50-U-2000XZ

<�8PE80.50-U-2000-99XZ:
