X54/7 - ESC Control Module/Motor Connector

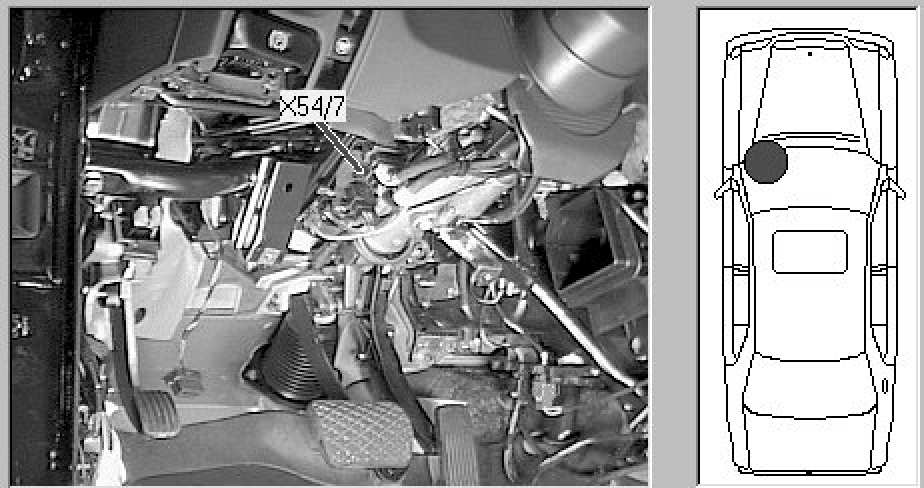

Passenger compartment, upper center of Driver's footwell, behind dashboard, to left of steering column.
