X11/26 - ADS Control Module Interm. Connector

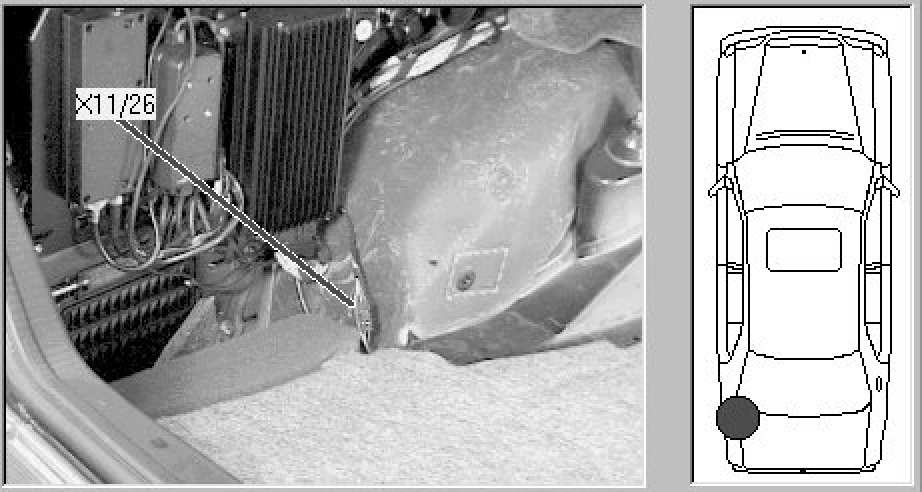

X11/26 - ADS Control Module Interm. Connector
Left side of trunk compartment, at rear of LR wheel well.
