Suspension Control ( Automatic - Electronic )
Adaptive Damping System ADS II

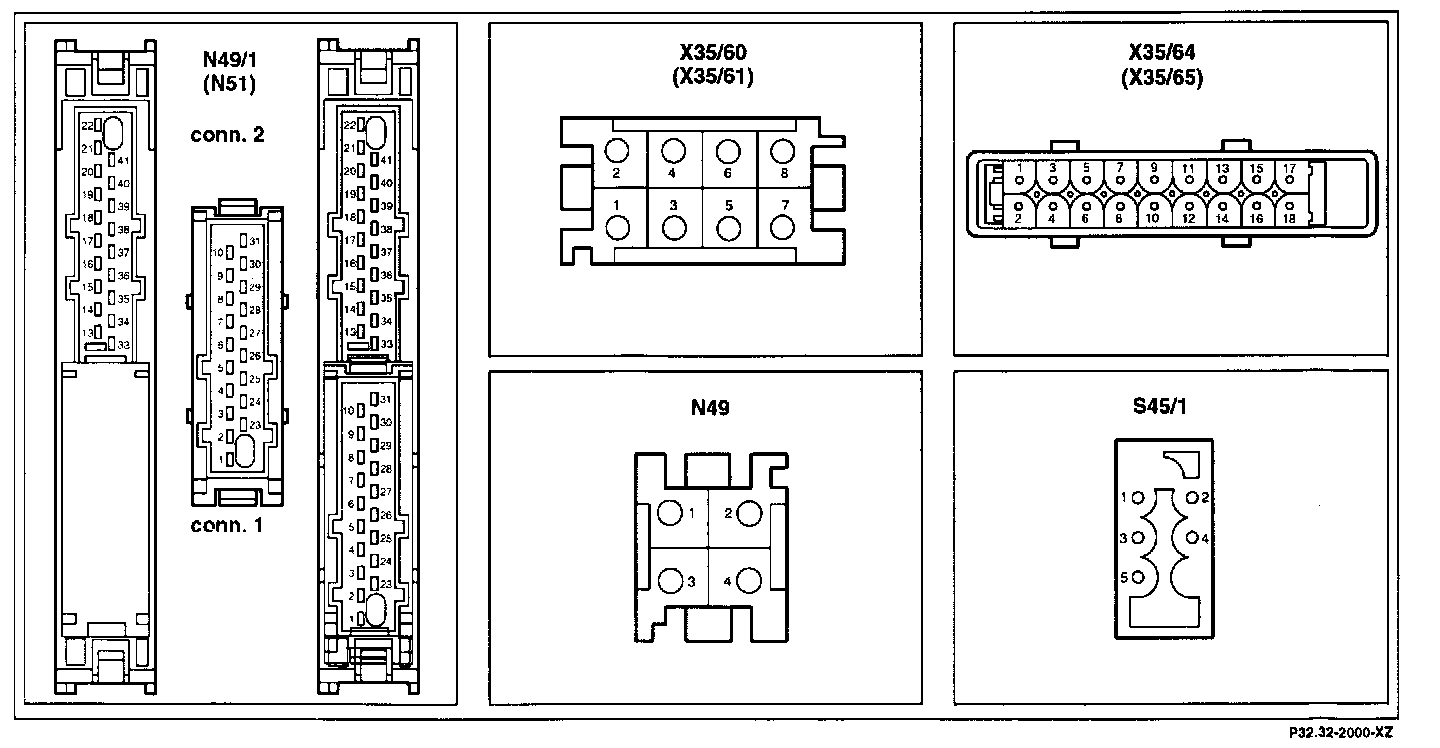

Connector Assignment:

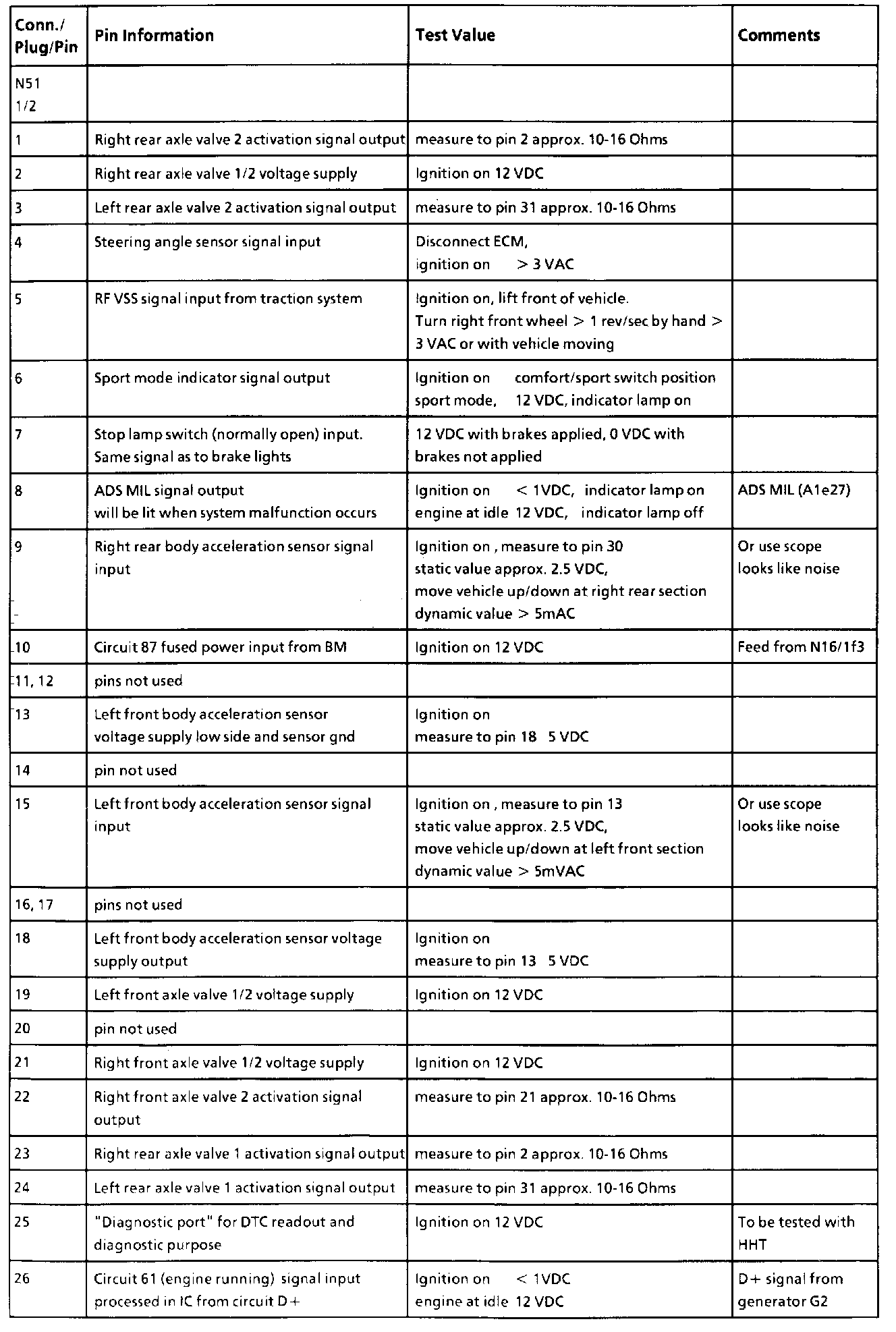

Pin Information, Part 1:

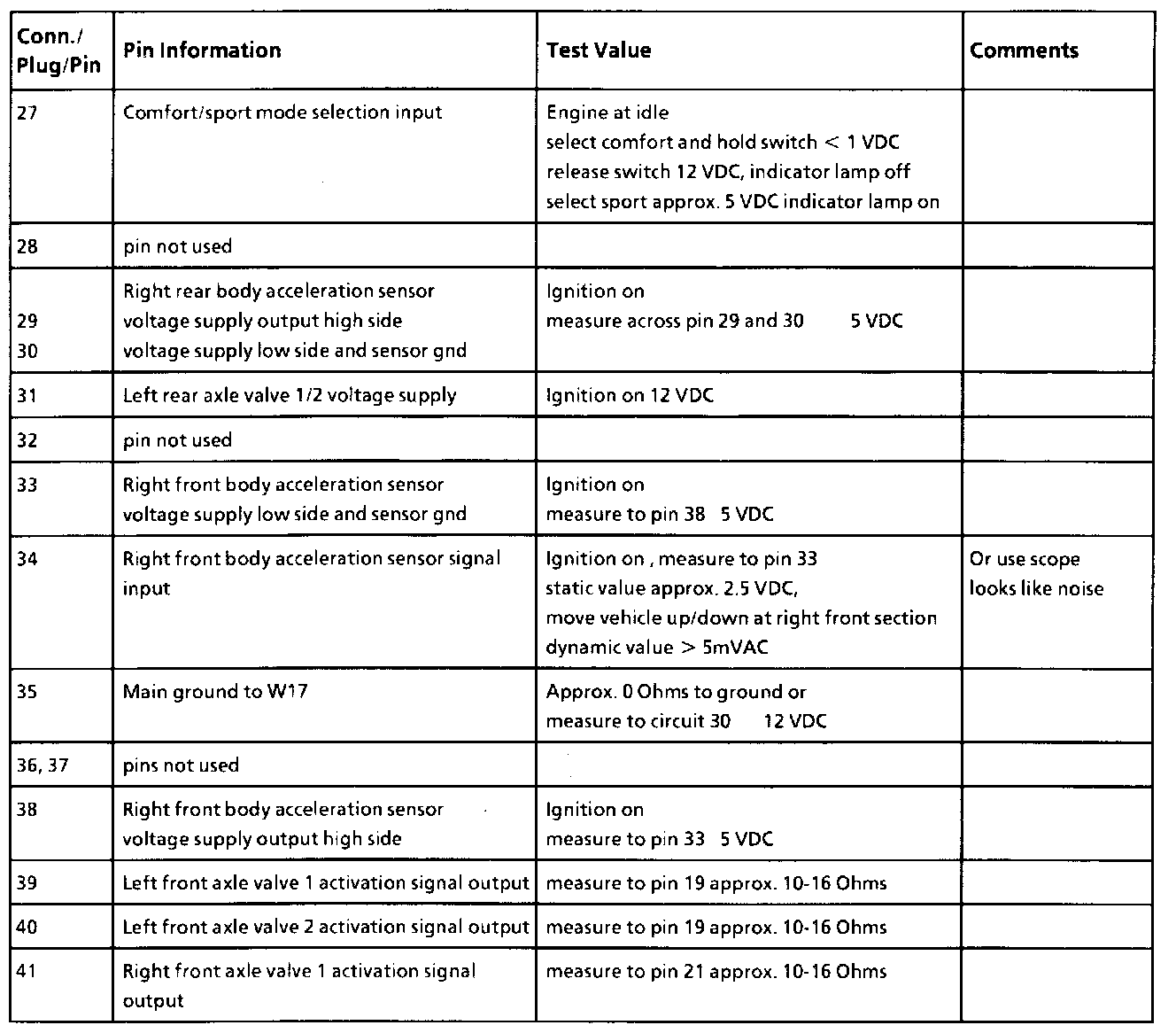

Pin Information, Part 2:
All values measured to ground unless otherwise noted
Adaptive Damping System ADS II
All values measured to ground unless otherwise noted
