Home >> Mercedes Benz >> 1999 >> S 320 SWB (140.032) L6-3.2L (104.994) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Base Module

Base Module

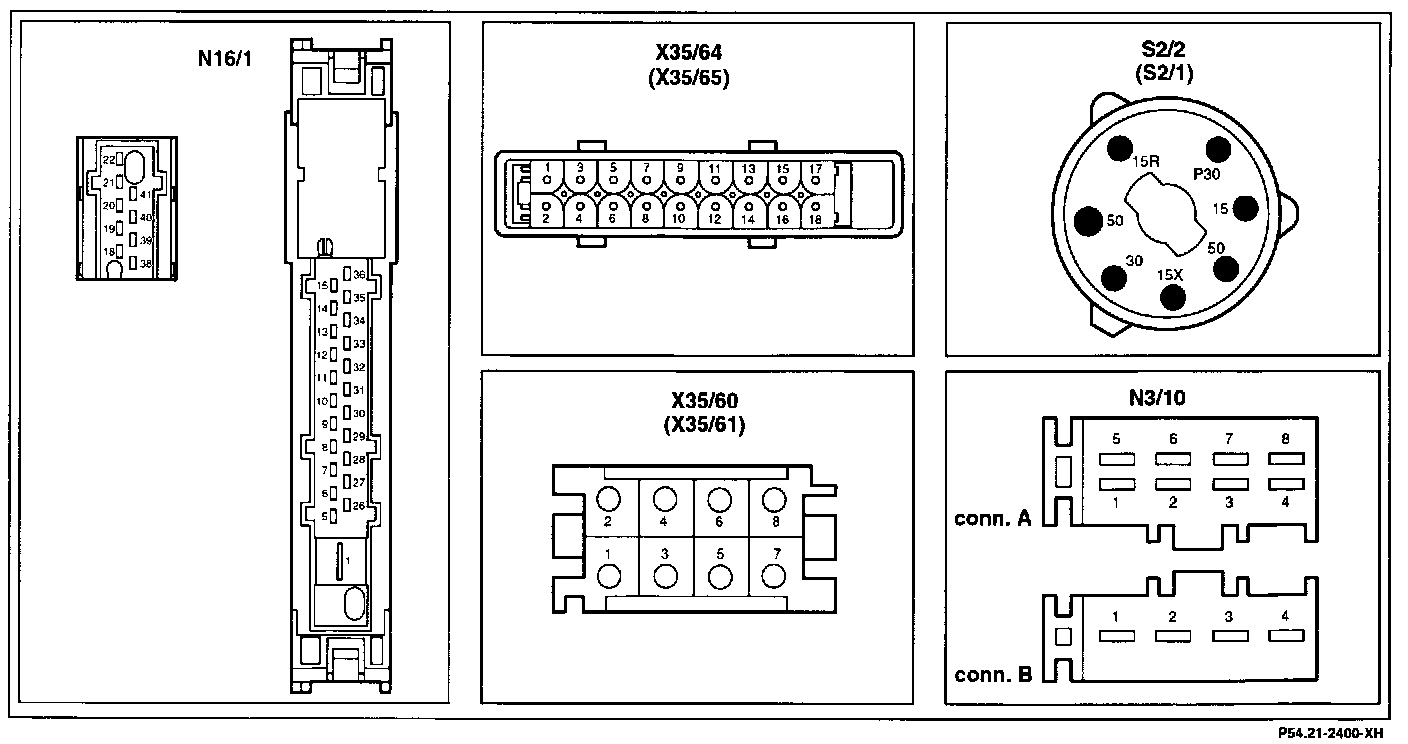

Connector Assignment:

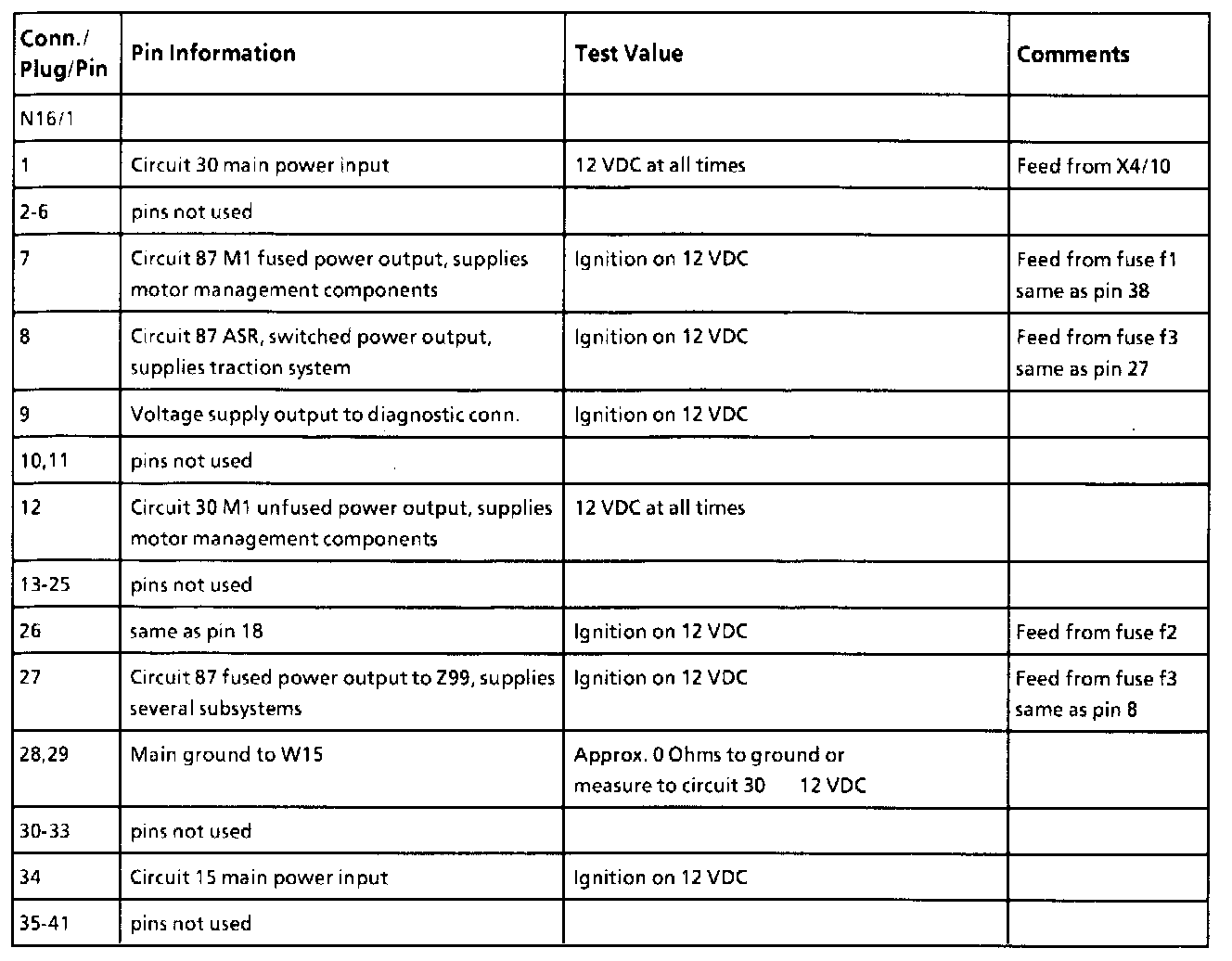

Pin Information:






All values measured to ground unless otherwise noted
