Interior Compartment


ME SFI

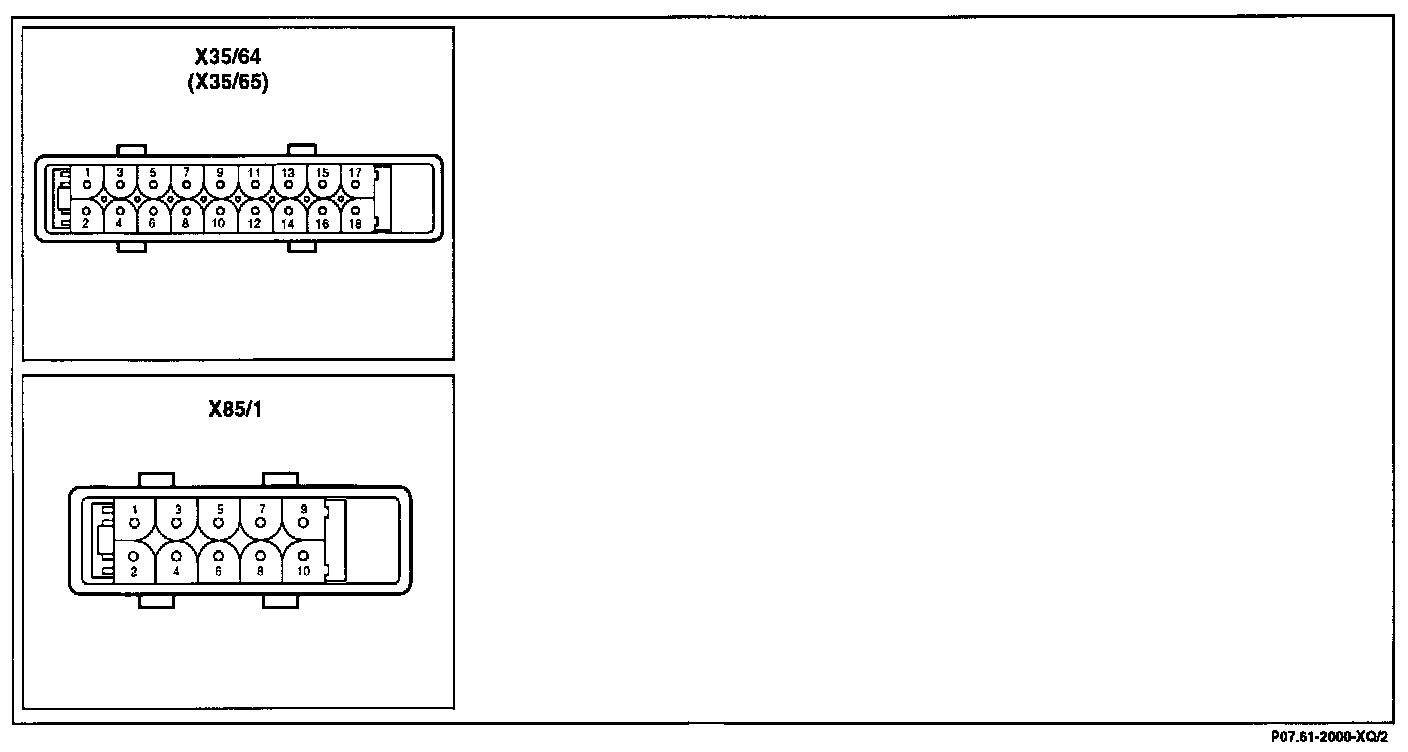

Connector Assignment:

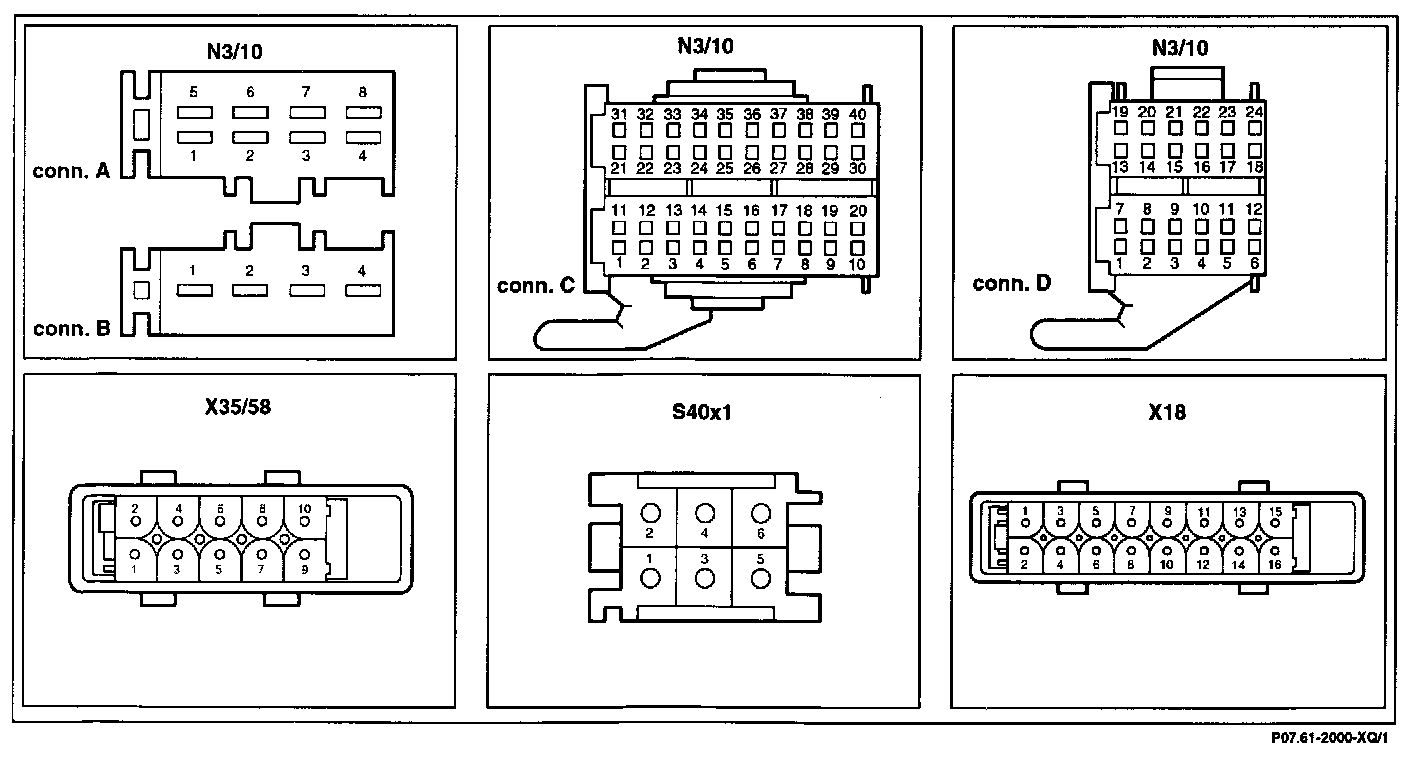

Connector Assignment:

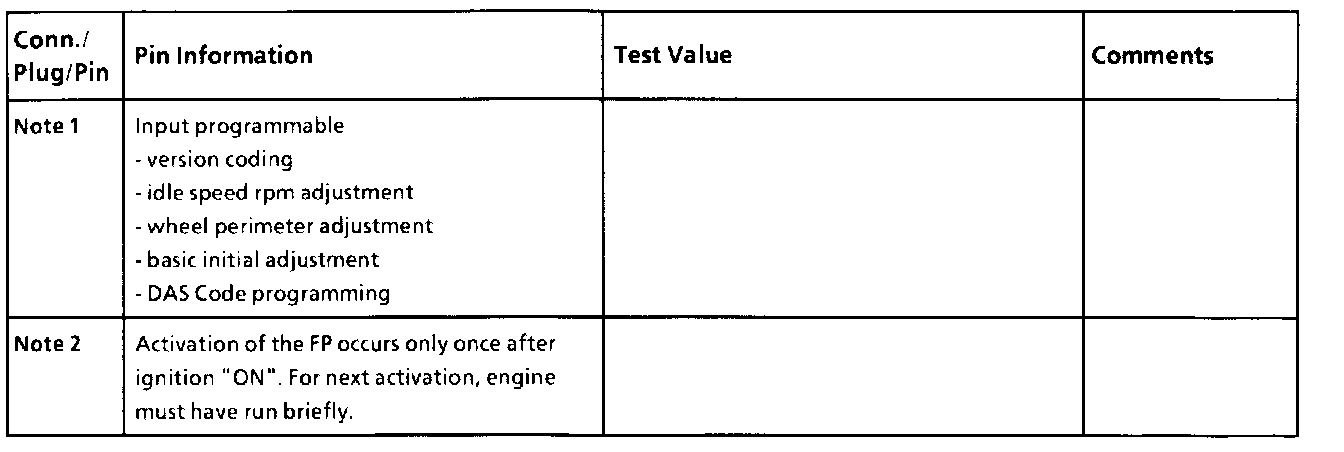

Pin Information, Part 1:

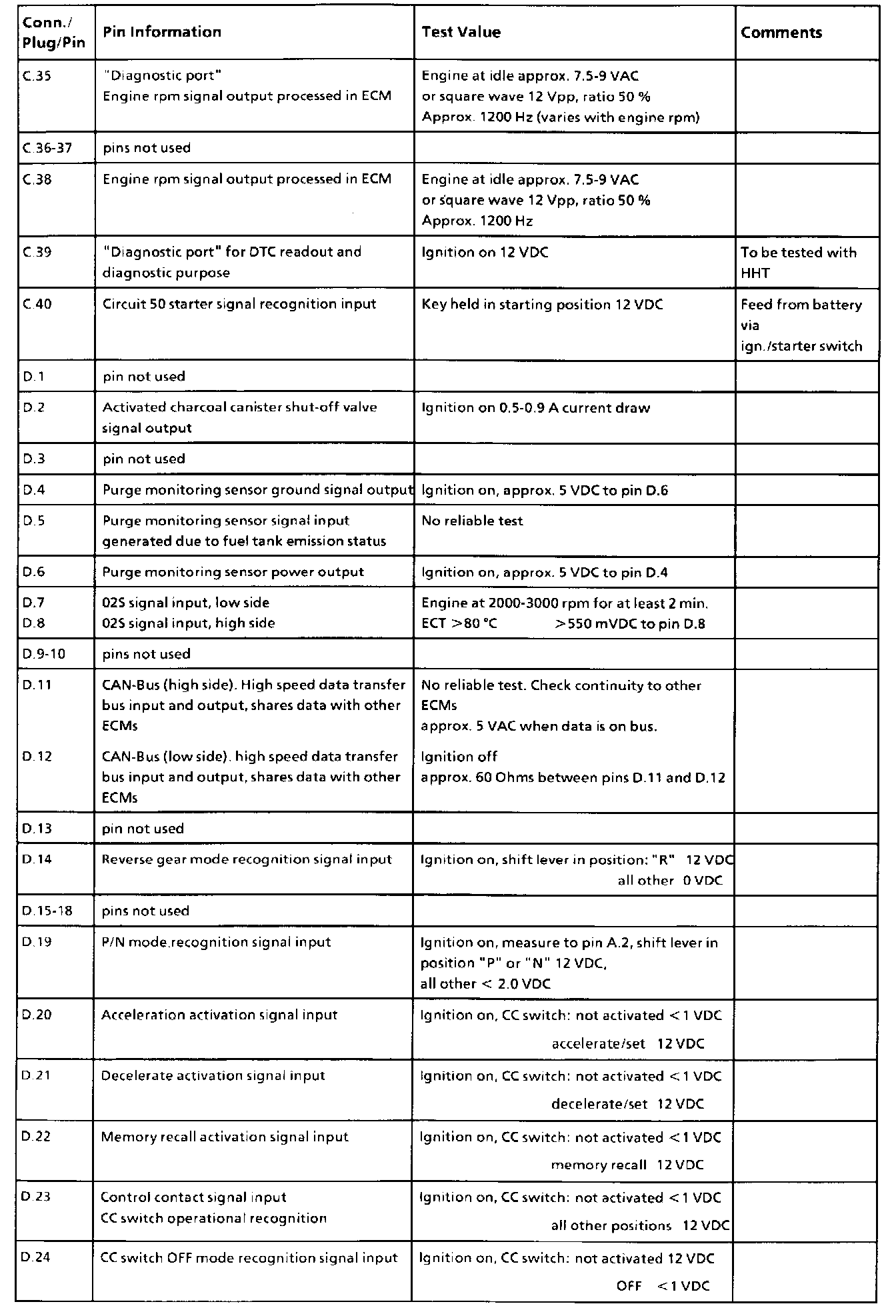

Pin Information, Part 2:






Pin Information, Part 3:






All values measured to ground unless otherwise noted
