S 320 SWB (140.032) L6-3.2L (104.994)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
>>
Engine Load Signal
>>
TN-Speed Signal (RPM - Speed Signal)
TN-Speed Signal (RPM - Speed Signal)
TN Engines 104/119/120 ME

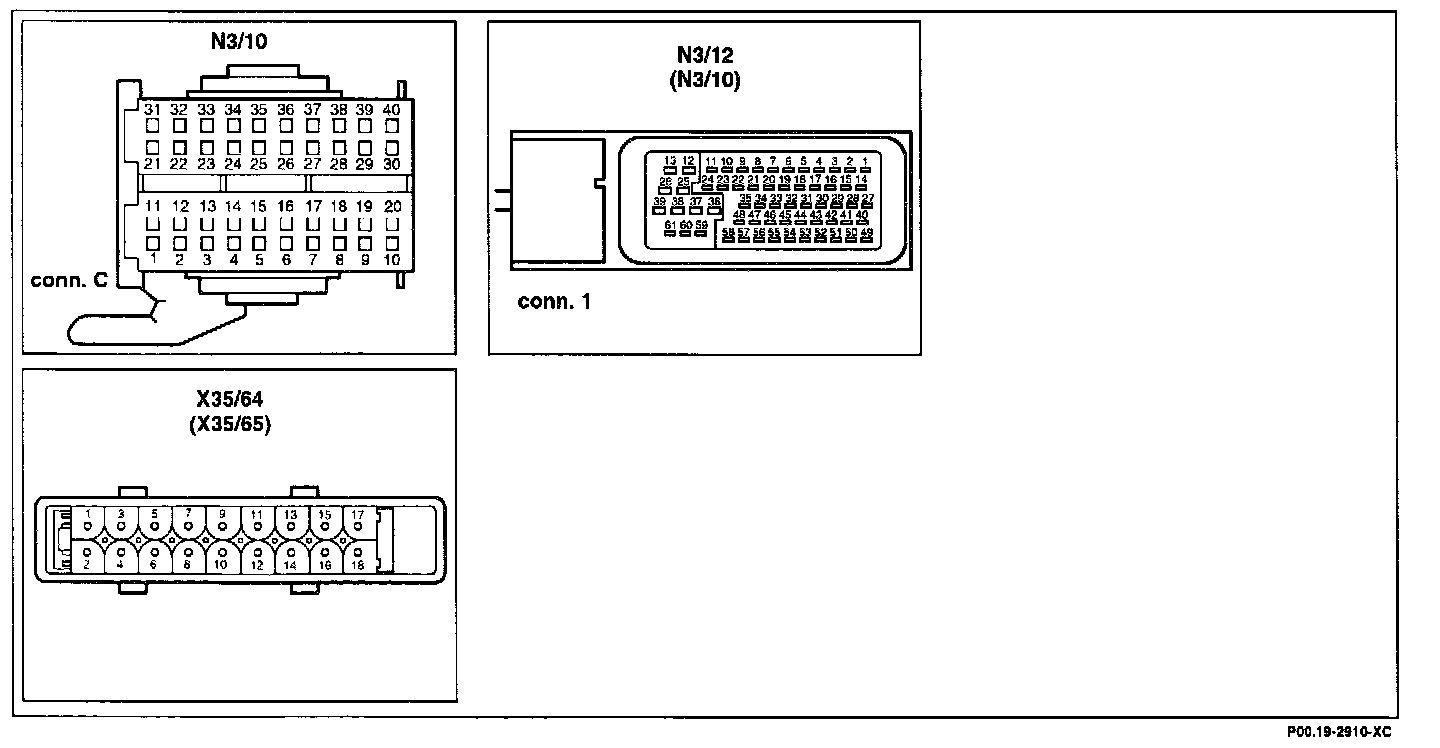

Connector Assignment:

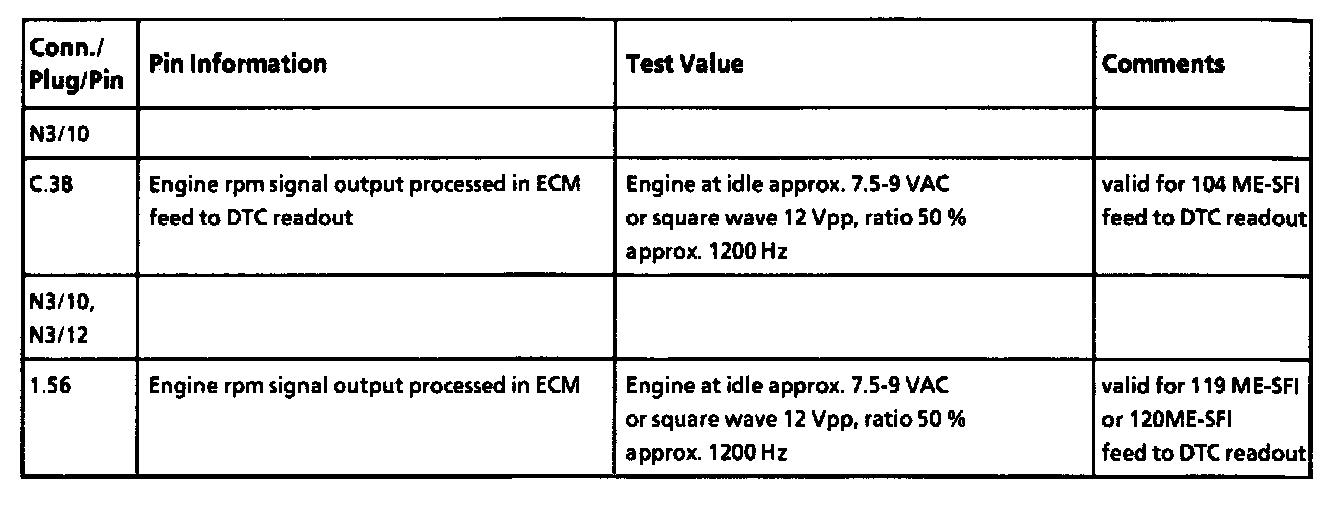

Pin Information:
All values measured to ground unless otherwise noted
