Mercedes Benz
>>
1999
>>
S 320 SWB (140.032) L6-3.2L (104.994)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antitheft and Alarm Systems
>>
Drive Authorization System (DAS)
Drive Authorization System (DAS)
RCL With DAS 2b

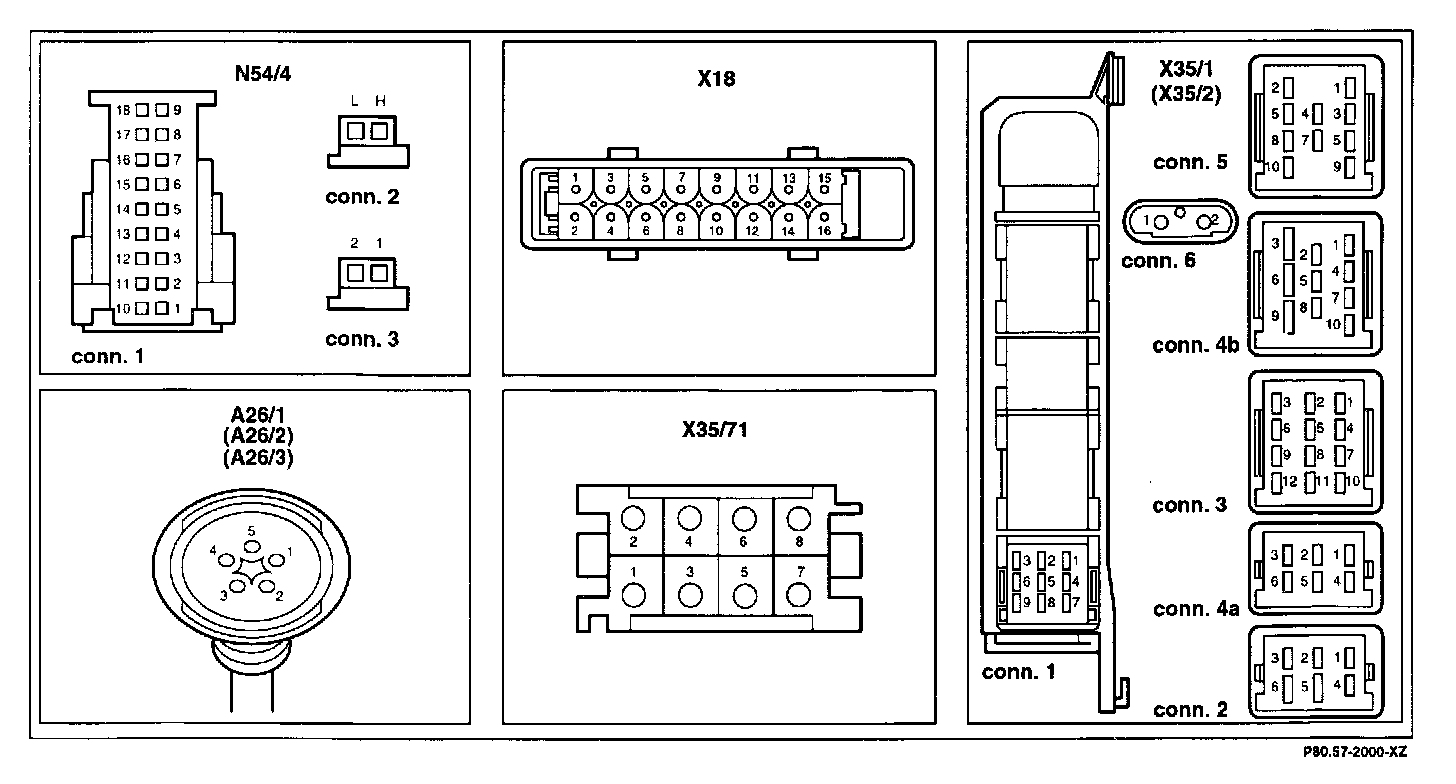

Connector Assignment:

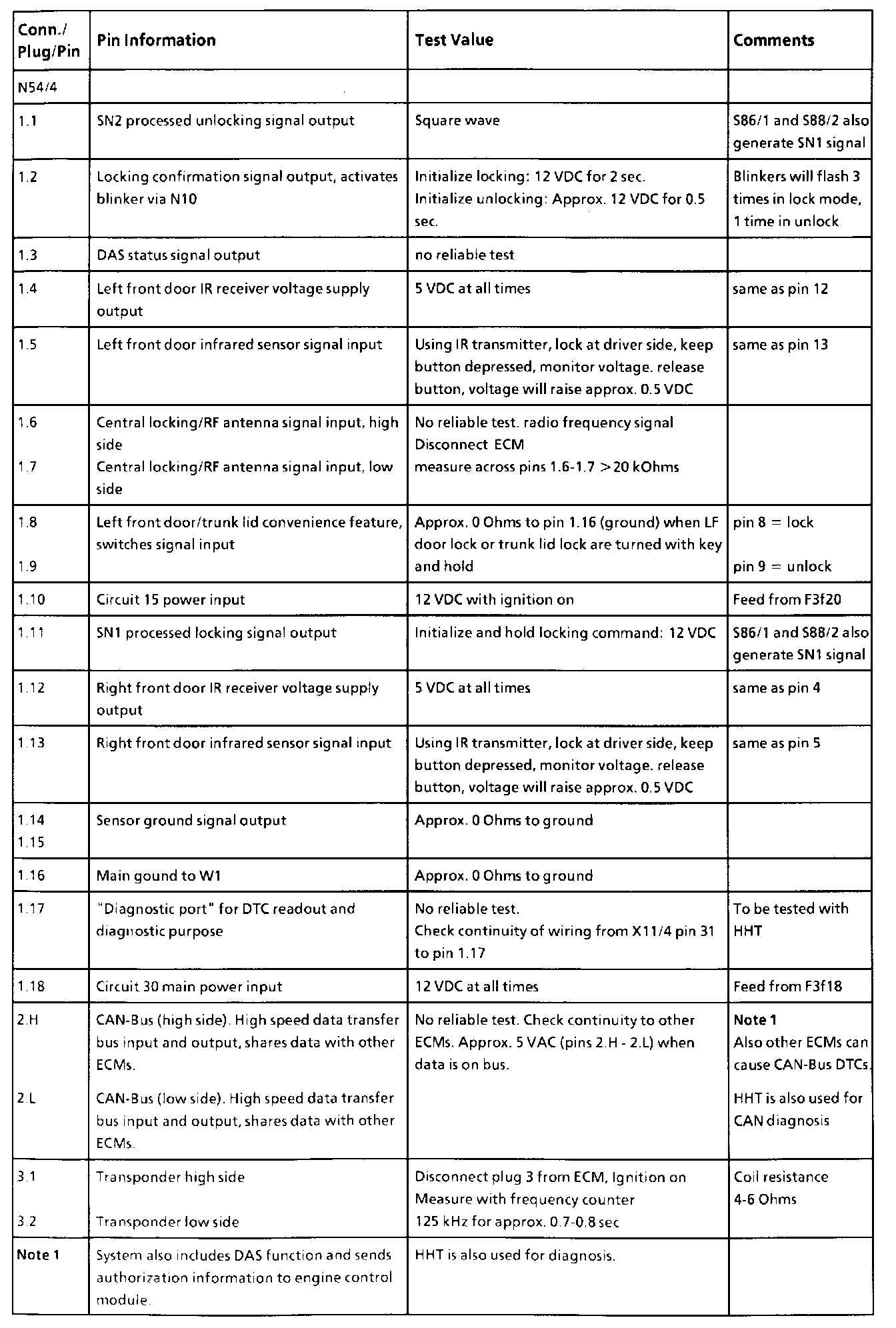

Pin Information:
All values measured to ground unless otherwise noted
