Home >> Mercedes Benz >> 1999 >> S 320 SWB (140.032) L6-3.2L (104.994) >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Component Tests and General Diagnostics >> Heated Seats (HS) >> Function Test >> Function Test Steps 4 and 5

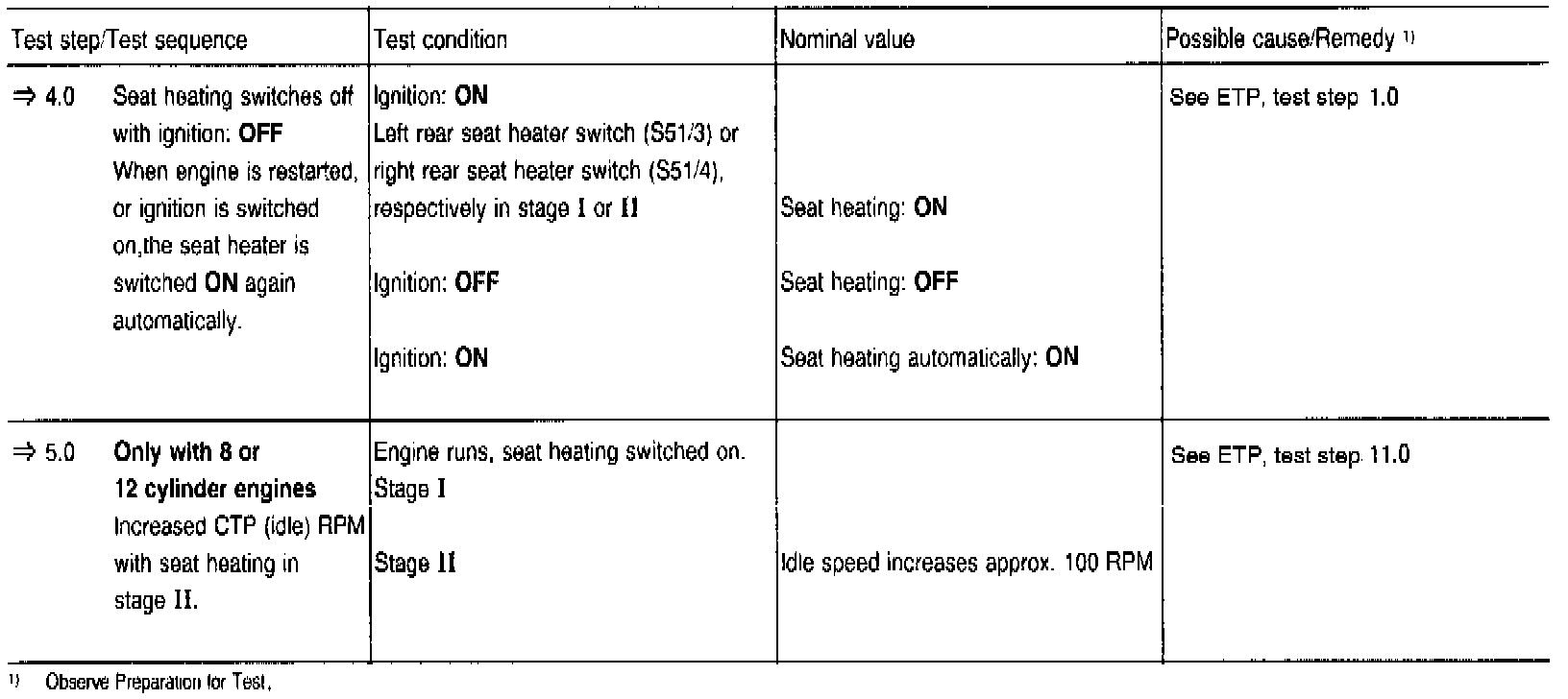

Function Test Steps 4 and 5

Steps 4 & 5:
