Component Locations and Identification

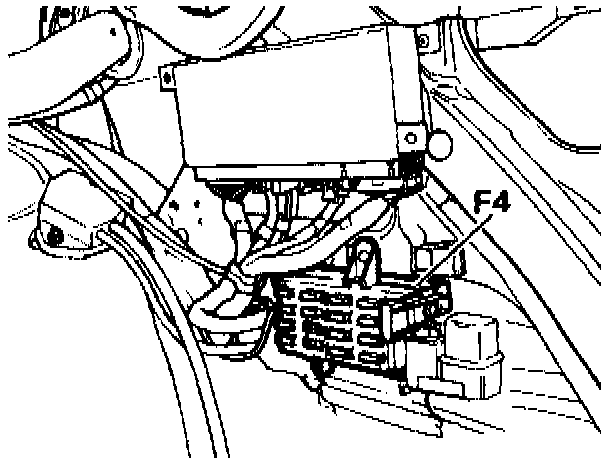

Figure 1:

F4 Rear fuse box (17-fuse, in trunk)

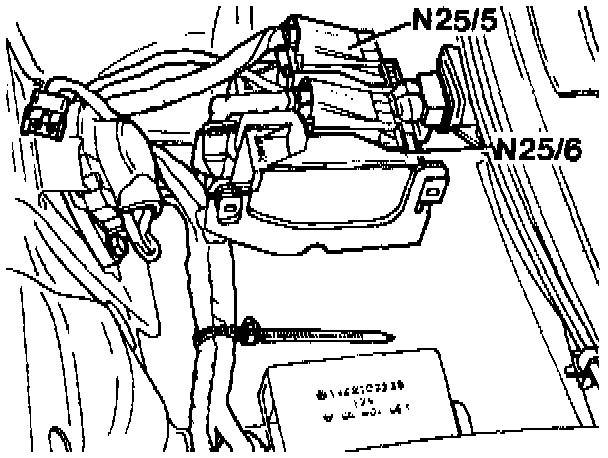

Figure 2:

N25/5 Front HS control module
N25/6 Rear HS control nodule

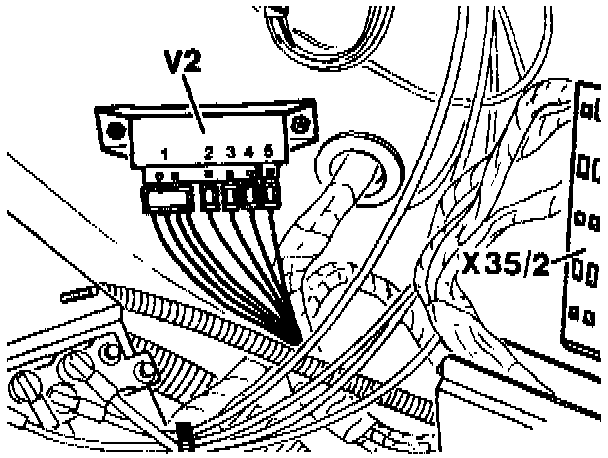

Figure 3:

V2 Engine speed increase diode matrix

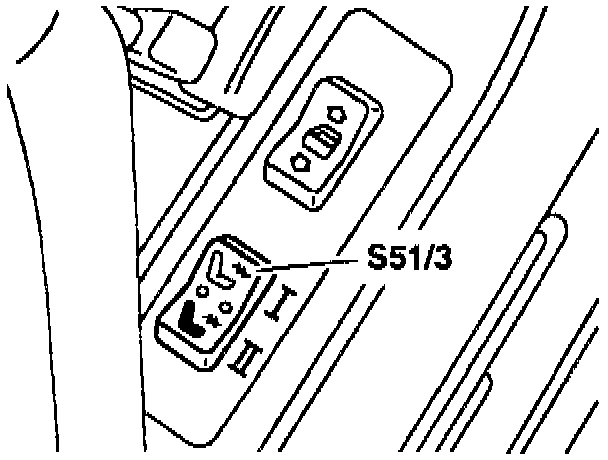

Figure 4:

S51/3 Left rear seat heater switch
