Home >> Mercedes Benz >> 1999 >> S 320 SWB (140.032) L6-3.2L (104.994) >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Component Tests and General Diagnostics >> Electrical Seat Adjustment (ESA) >> Rear Seat(s) >> With Rear Bench Seat >> ETP - Electrical Test Program >> Test Steps >> ETP Test Steps 5.0 thru 7.0

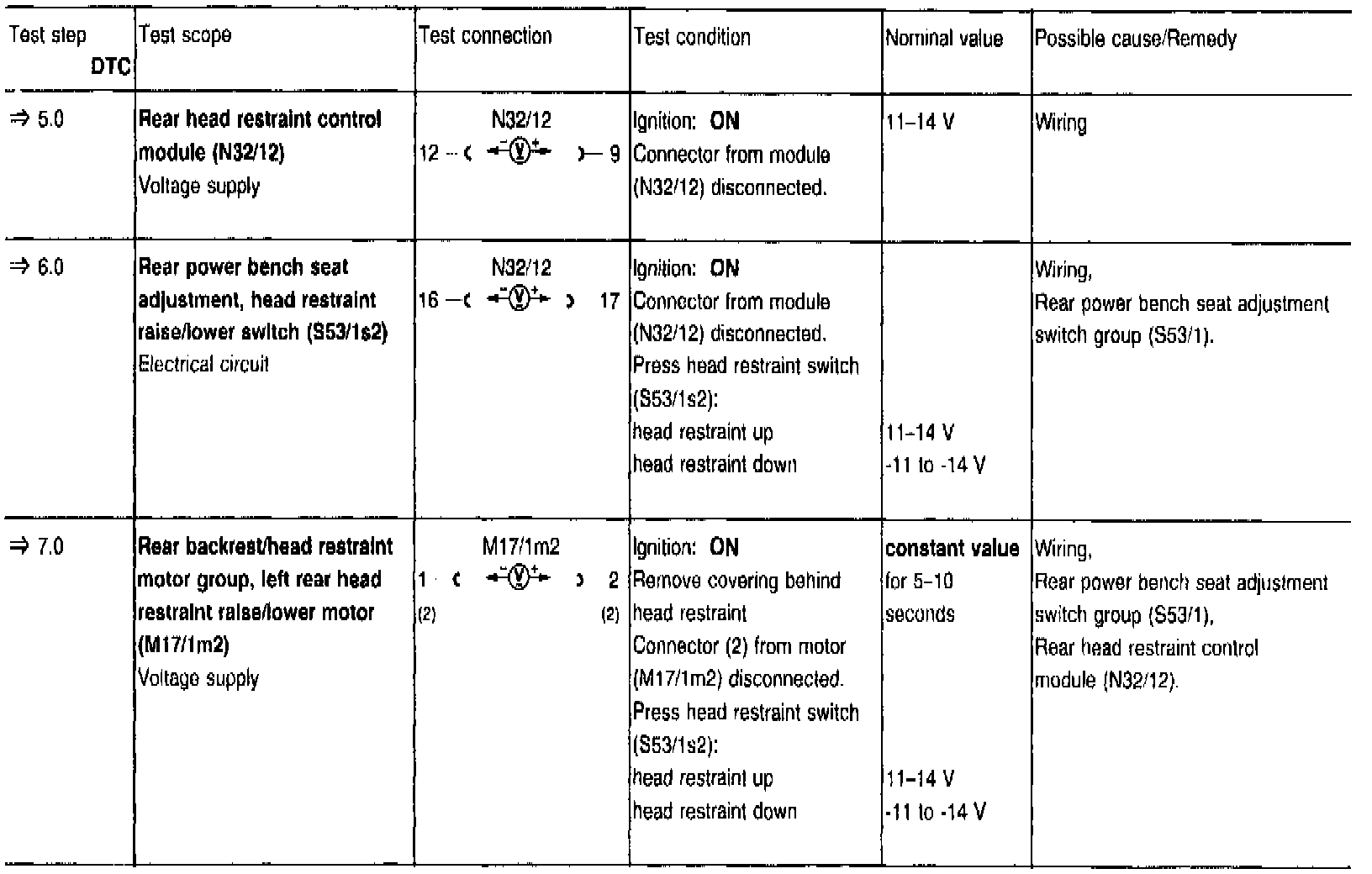

ETP Test Steps 5.0 thru 7.0

ETP Steps 5.0 - 7.0:
