Home >> Mercedes Benz >> 1999 >> S 320 SWB (140.032) L6-3.2L (104.994) >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Component Tests and General Diagnostics >> Electrical Seat Adjustment (ESA) >> Rear Seat(s) >> With Rear Bench Seat >> ETP - Electrical Test Program >> Test Steps >> ETP Test Steps 16.0 and 17.0

ETP Test Steps 16.0 and 17.0

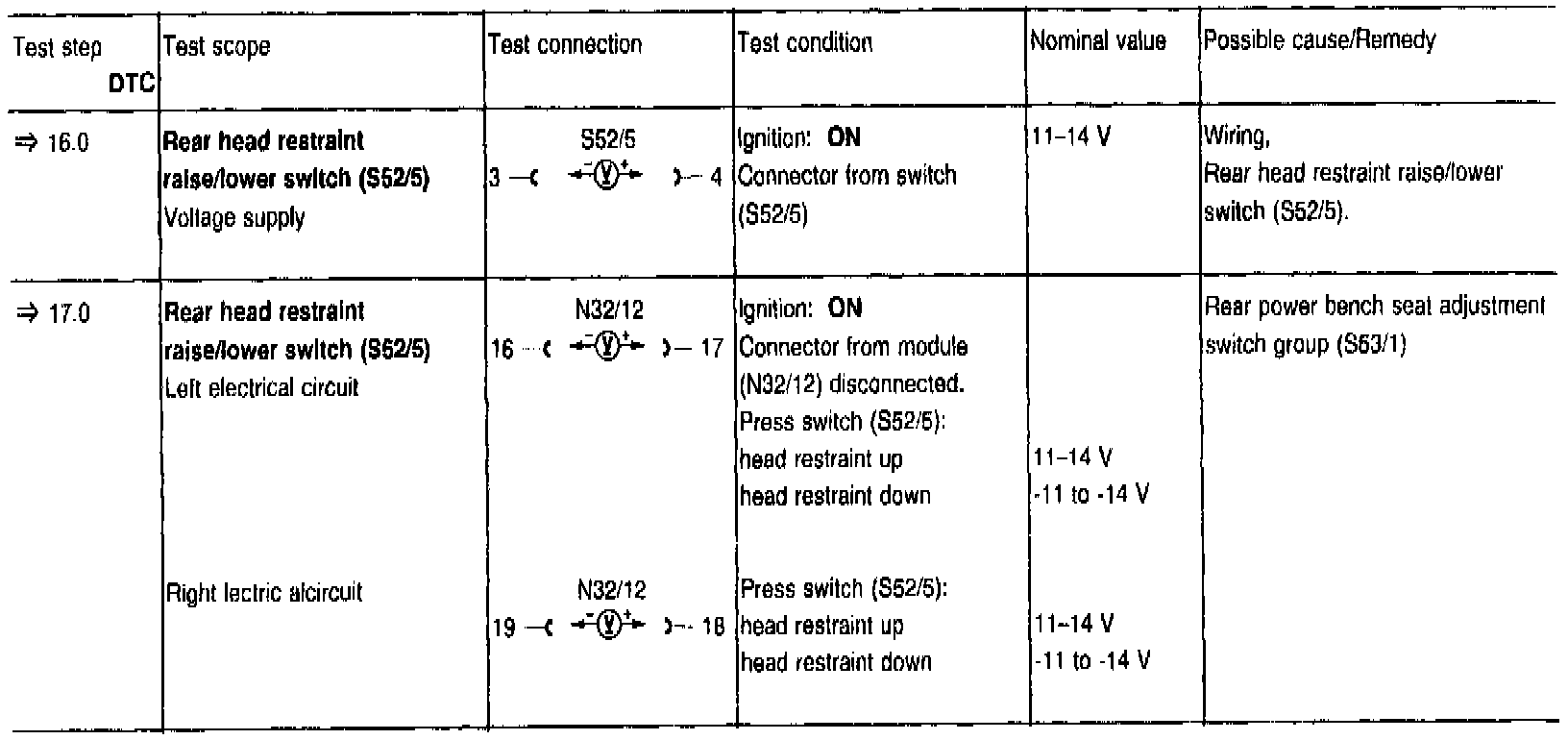

ETP Steps 16.0 & 17.0:
