Component Locations and Identification

Figure 1:

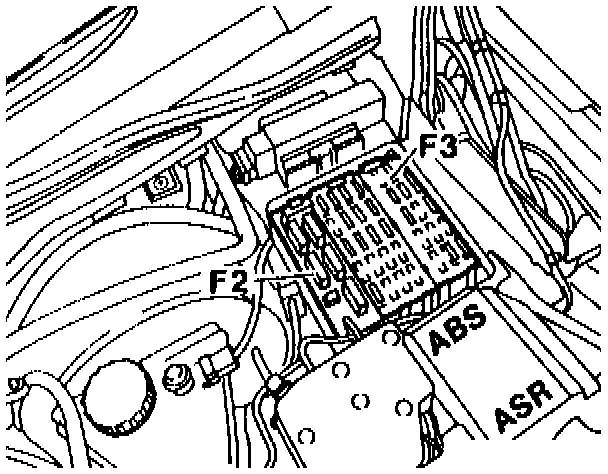

F3 Fuse box (35-fuse. in use and relay box F1)

Figure 2:

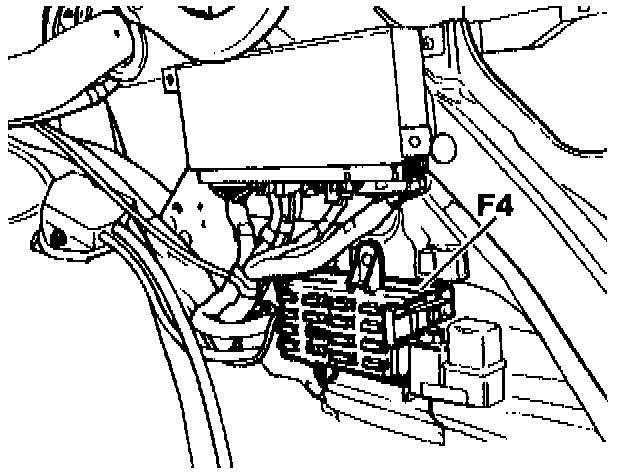

F4 Rear fuse box (17-fuse, in trunk)

Figure 3:

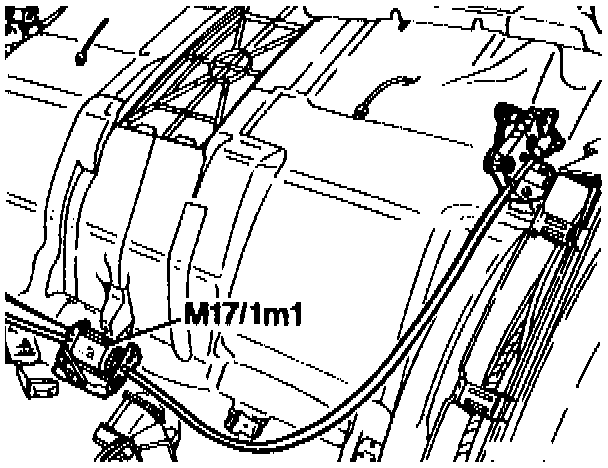

M17/1m1 Backrest fore/aft motor

Figure 4:

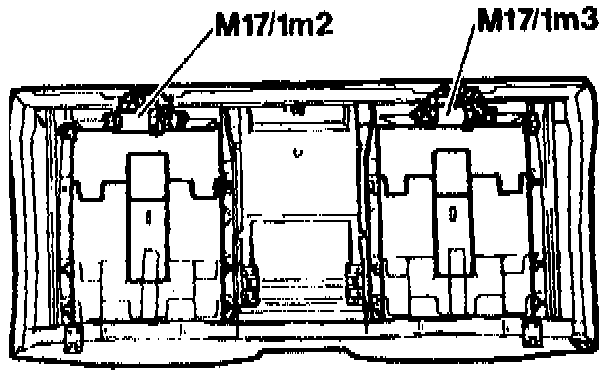

M17/1m2 Left rear head restraint raise/lower motor
M17/1m3 Right rear head restraint raise/lower motor

Figure 5:

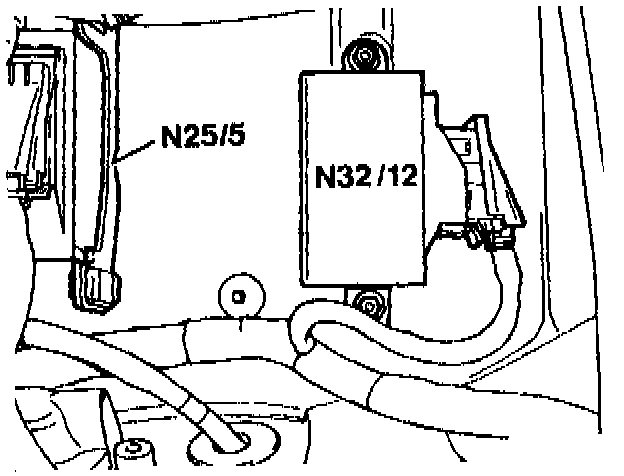

N32/12 Rear head restraint control module

Figure 6:

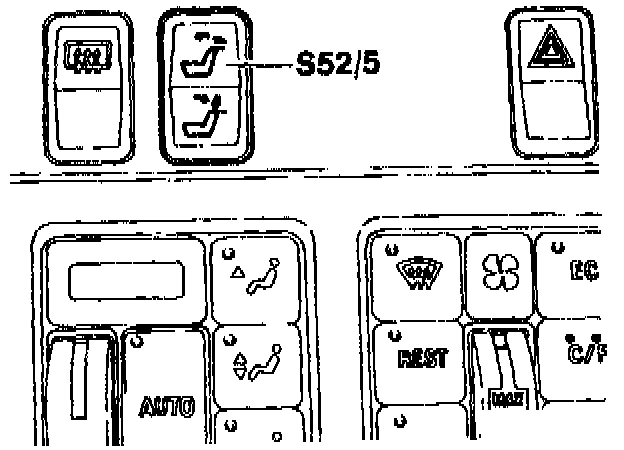

S52/5 Rear head restraint raise/lower switch
