S 320 SWB (140.032) L6-3.2L (104.994)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Electrical Seat Adjustment (ESA)
>>
Front Seats
>>
Function Test (Vehicles with Memory Seats)
>>

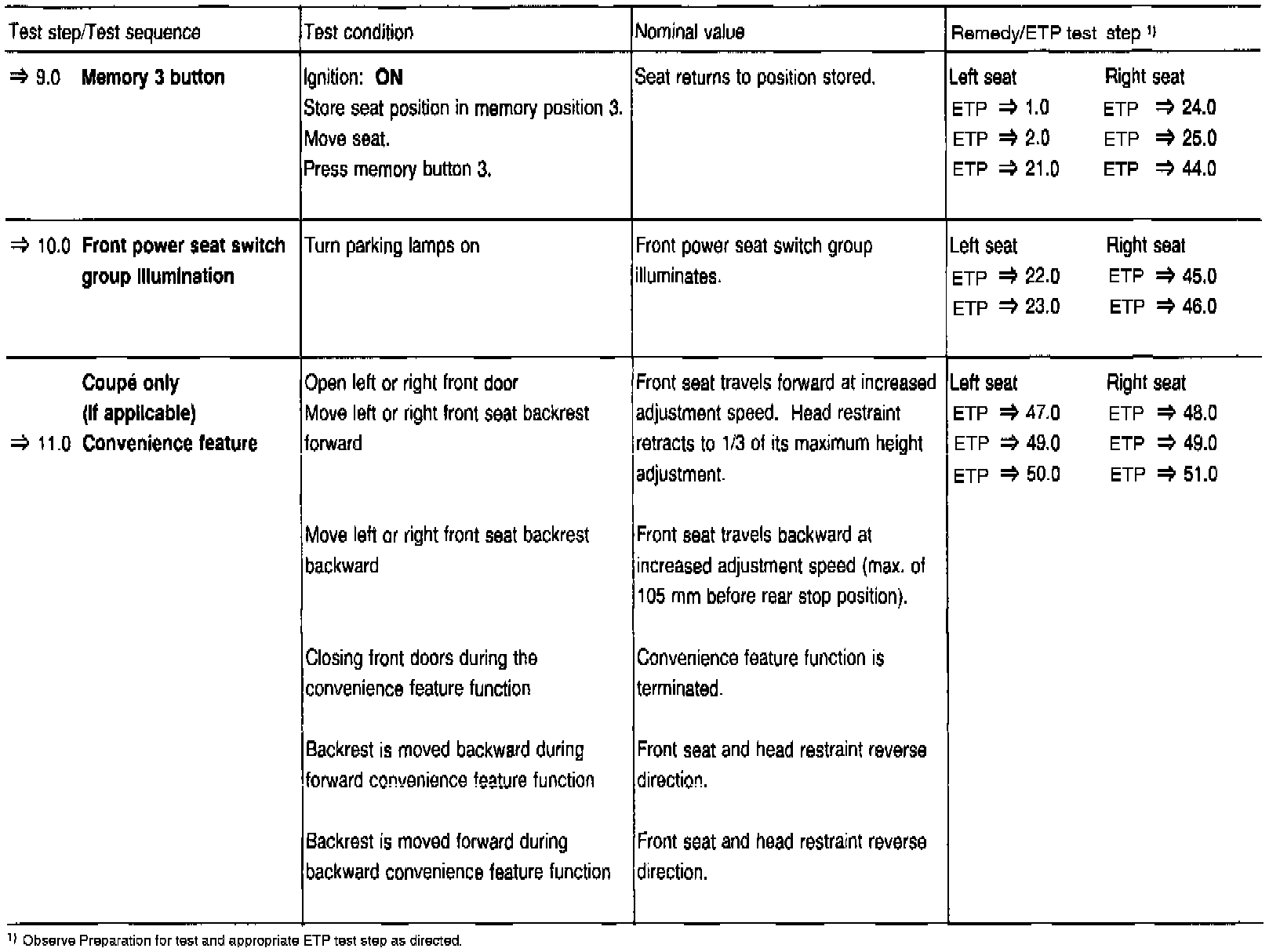

Test Steps/Sequence 9.0 thru 11.0
Test Steps/Sequence 9.0 thru 11.0
