FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1999
>>
S 320 SWB (140.032) L6-3.2L (104.994)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Electrical Seat Adjustment (ESA)
>>
Front Seats
>>
Function Test (Vehicles with Memory Seats)
>>

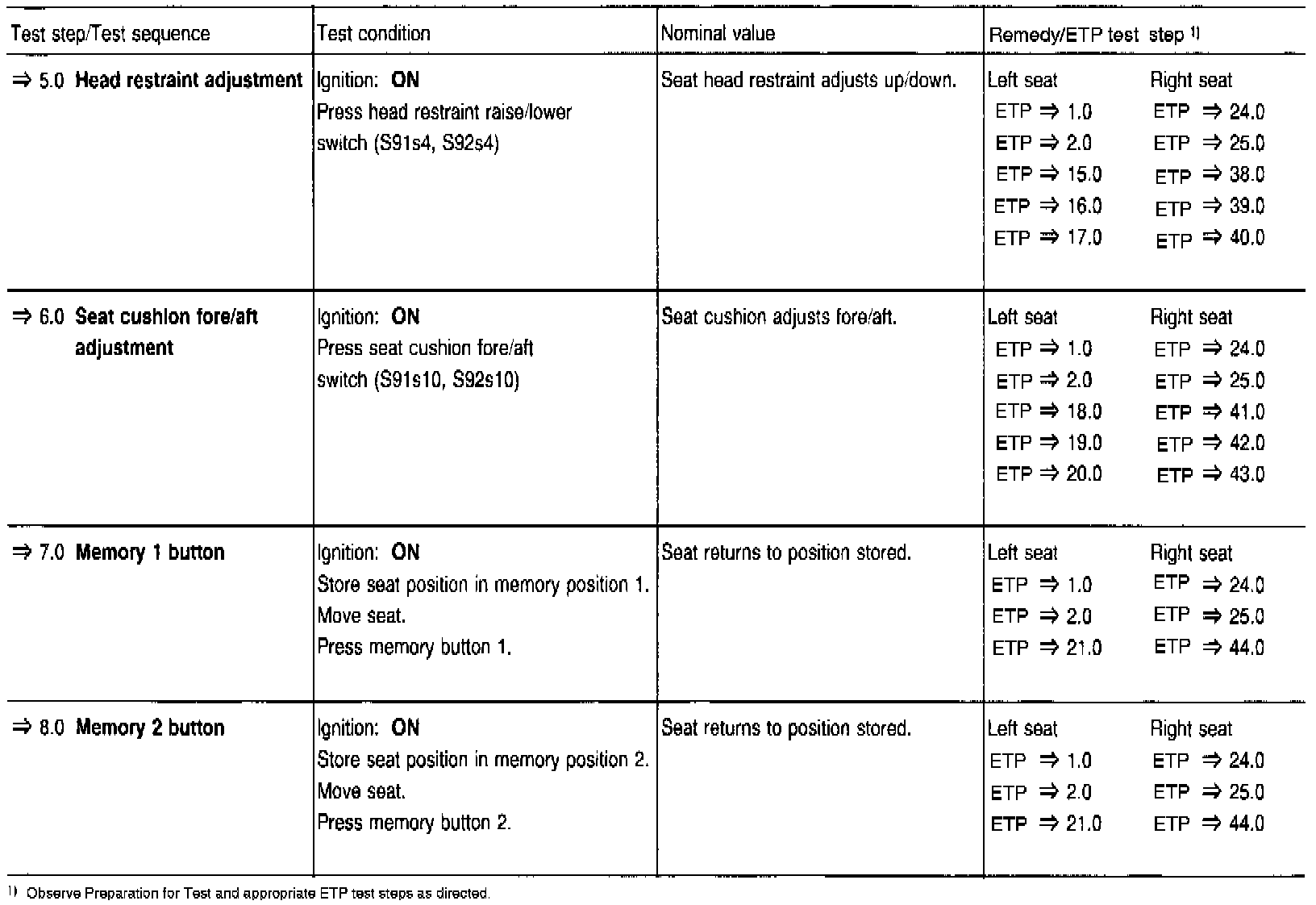

Test Steps/Sequence 5.0 thru 8.0
Test Steps/Sequence 5.0 thru 8.0
