Home >> Mercedes Benz >> 1999 >> S 320 SWB (140.032) L6-3.2L (104.994) >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Component Tests and General Diagnostics >> Electrical Seat Adjustment (ESA) >> Front Seats >> ETP - Electrical Test Program (Vehicles with Memory Seats) >> Test Steps >> ETP Test Steps 15.0 and 16.0

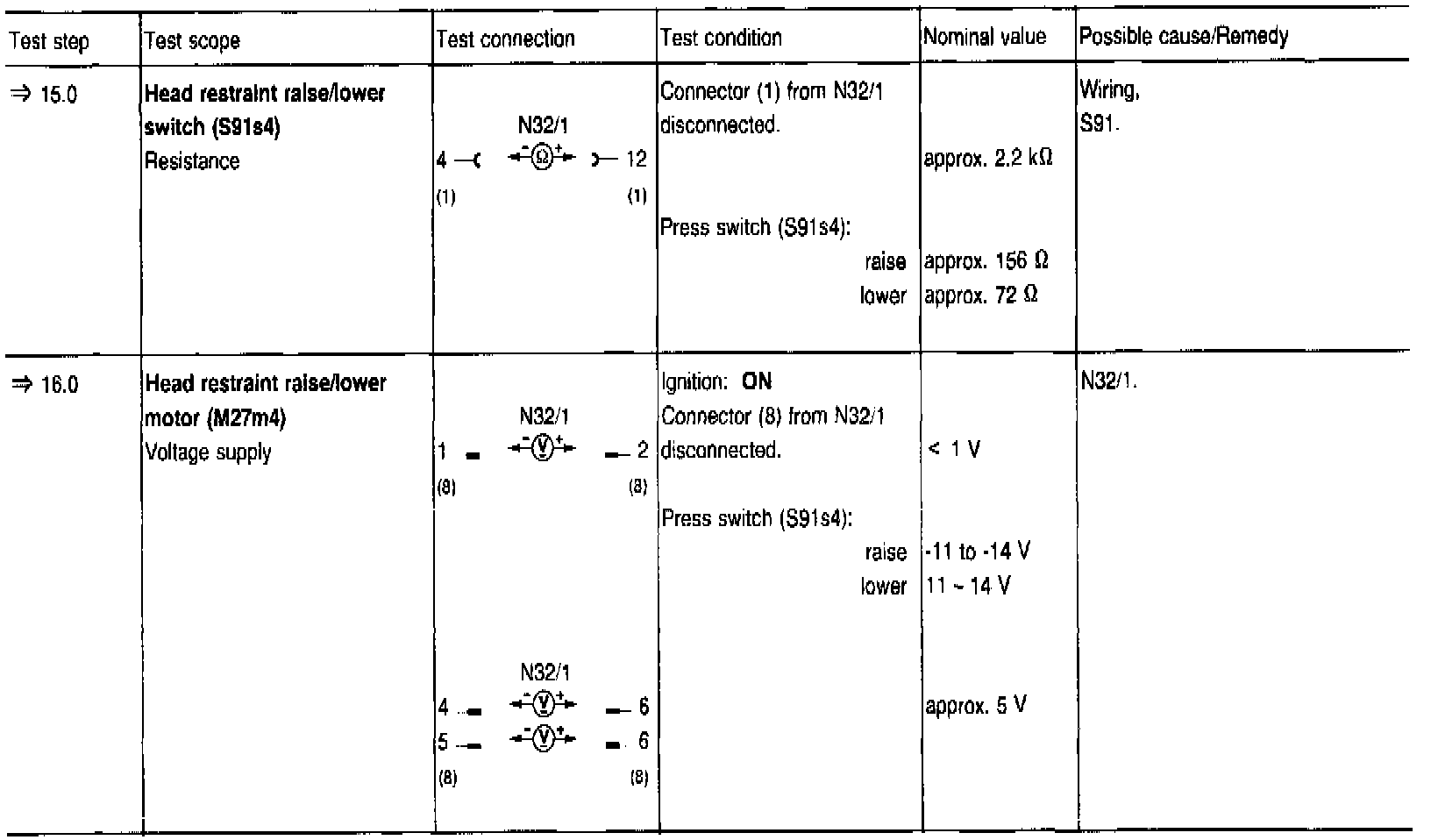

ETP Test Steps 15.0 and 16.0

Steps 15.0 & 16.0:
